Maintenance Instruction manual A400 / A400FB
8 - 14 6.054.98.5.10.06 en
8

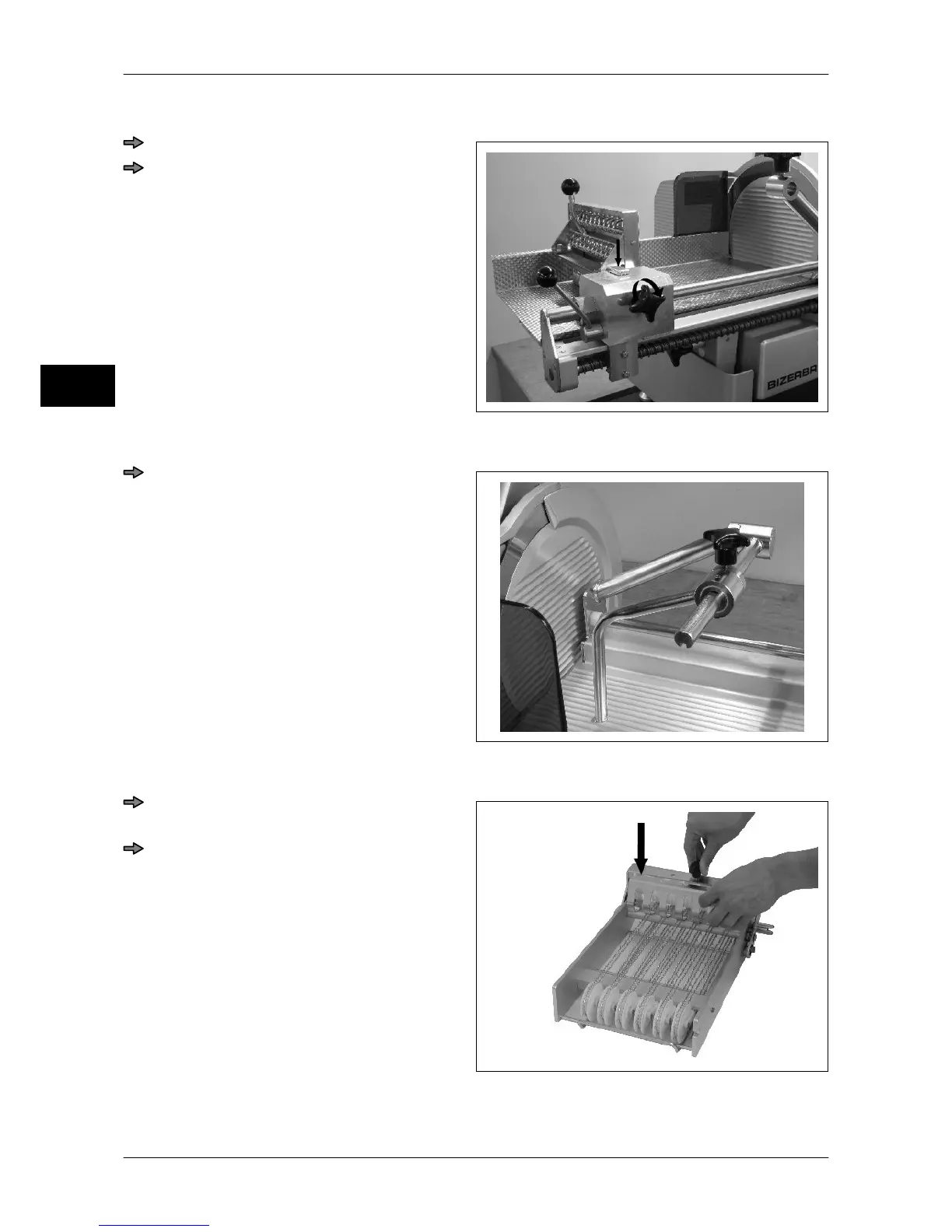

Product holder 600 mm carriage
Fig. 61: Product holder
Insert the holder casing into the groove.
Screw tight with the star grip screw.
product support
Fig. 62: product support
Push product support onto guide ele-
ment, tighten star knob.
Guide cam
Fig. 63: Guide cam
Install guide cam between the transport
chains and tighten with locking handle.
By turning the feed roller check if chains
are mounted correctly.
