22
Maintenance
Replacement Parts

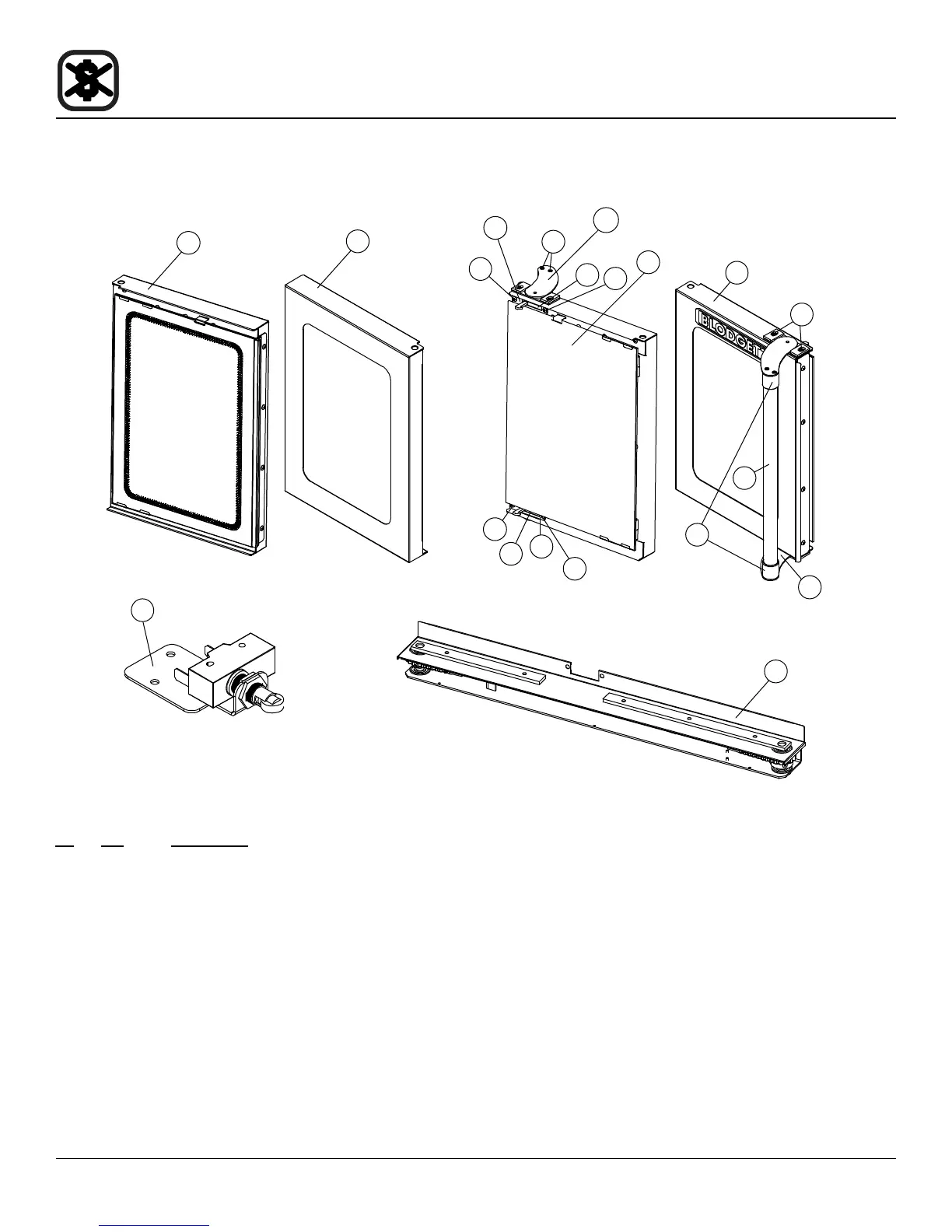

DOORS
Ref. Part
No. No. Description
1 51552 ASSEMBLY, LH OUTER DOOR
2 51534 ASSEMBLY, INNER DOOR GLASS
3 50227 ASSY, LATCH RH
4 50228 ASSY, LATCH LH
5 50213 END CAP, HANDLE (QTY 2)
6 51542 ASSEMBLY, DOOR HANDLE
7 51539 PLATE, LATCH COVER (QTY 2)
8 51668 GASKET, DOOR LATCH (QTY 2)
9 16384 10-24 X .500 TRUSS HEAD MACH SCREW (QTY 4)
10 M6315 10-24 X 1/2 HEX WASHER HEAD SCREW, S/S (QTY 4)
11 50836 SCREW, #10-24 X 2.00 FLATHEAD (QTY 4)
12 51559 ASSEMBLY, RH OUTER DOOR
13 51556 ASSEMBLY, RH INNER DOOR GLASS
14 57953 DOOR TURNBUCKLE ASSEMBLY
15 52514 DOOR SWITICH ASSEMBLY
13
12
9
8
7
9
9
7
11
4
8
9
2
1
10
6
5
3
15
14
RH DOOR
LH DOOR
