23
Maintenance
Replacement Parts

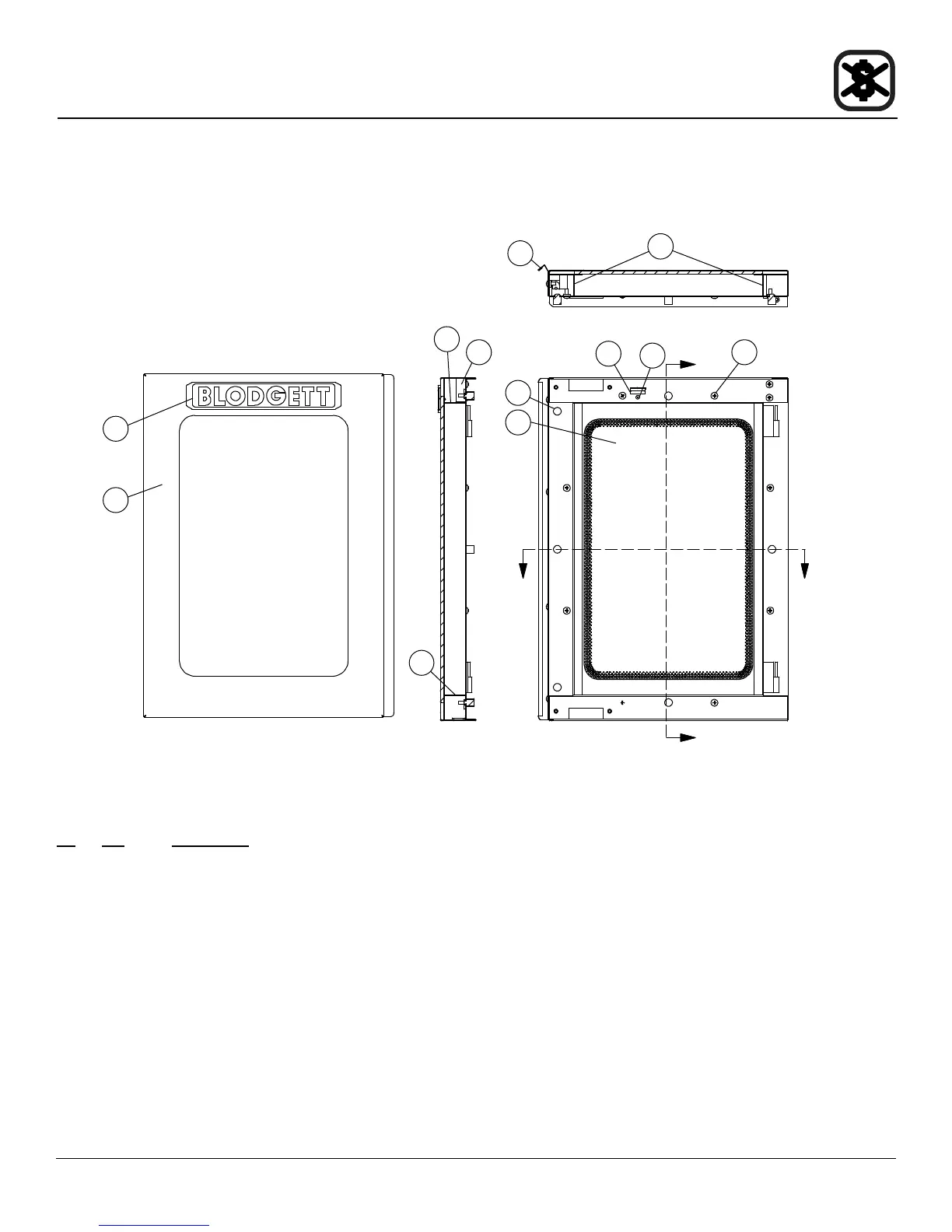

LH OUTERDOOR SUBASSEMBLY (P/N 51552) BREAKDOWN
Ref. Part
No. No. Description
1 51523 DOORFRONT, LH
2 51161 GLASS, OUTER DOOR
3 51424 BUSHING, DOOR PIN
4 51664 TRIM, TOP DOOR
5 51528 TRIM, BOTTOM DOOR
6 51529 TRIM, VERTICAL DOOR (QTY 2)
7 51519 CLIP, DOOR GLASS
8 16470 NAMEPLATE, BLODGETT, 10 INCH
9 51450 DOOR CHANNEL, RH DOOR
10 60185 BUMPER, HIGH TEMPERATURE (QTY 6)
11 R1278 RIVET, 1/8” POP S/S
12 16384 10-24 X .500 TRUSS HEAD MACH SCREW (QTY 14)
8
1
5
3
4
2
10
9
6
7
11
12
A
B
B
A
SECTION B-B
SECTION A-A
