24
Maintenance
Replacement Parts

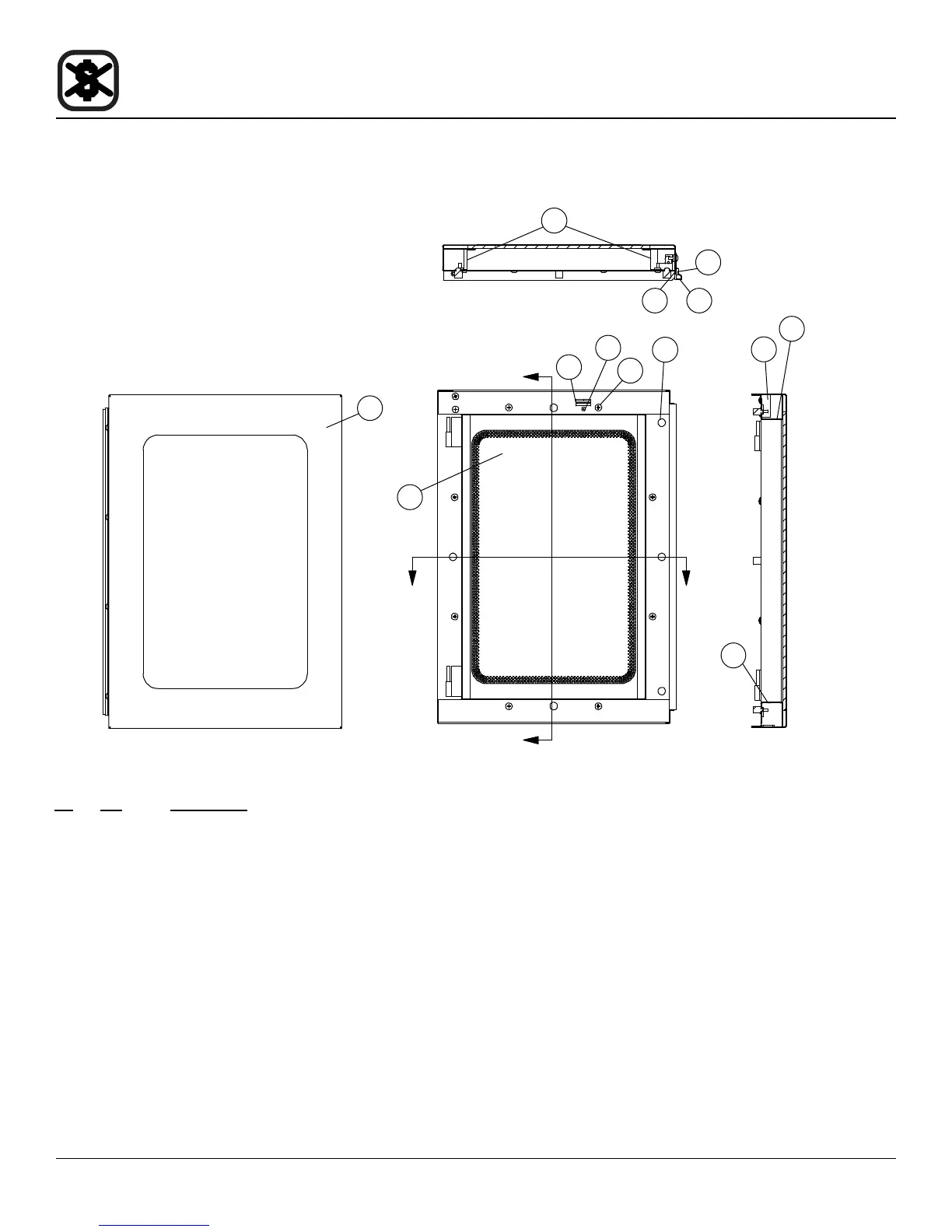

RH OUTERDOOR SUBASSEMBLY (P/N 51559) BREAKDOWN
Ref. Part
No. No. Description
1 51558 DOORFRONT, RH
2 51529 TRIM, VERTICAL DOOR (QTY 2)
3 51664 TRIM, TOP DOOR
4 51528 TRIM, BOTTOM DOOR
5 51424 BUSHING, DOOR PIN
6 51161 GLASS, OUTER DOOR
7 51519 CLIP, DOOR GLASS
8 60185 BUMPER, HIGH TEMPERATURE (QTY 6)
9 R1278 RIVET, 1/8” POP S/S
10 16384 10-24 X .500 TRUSS HEAD MACH SCREW (QTY 14)
11 51541 CENTER GASKET CHANNEL, INNER
12 52475 GASKET RETAINER, OUTER
13 51610 GASKET, CENTER DOOR
1
6
B
2
7
9
10
8
11
13
12
5
3
4
A
SECTION B-B
B
A
SECTION A-A
To Next Page
