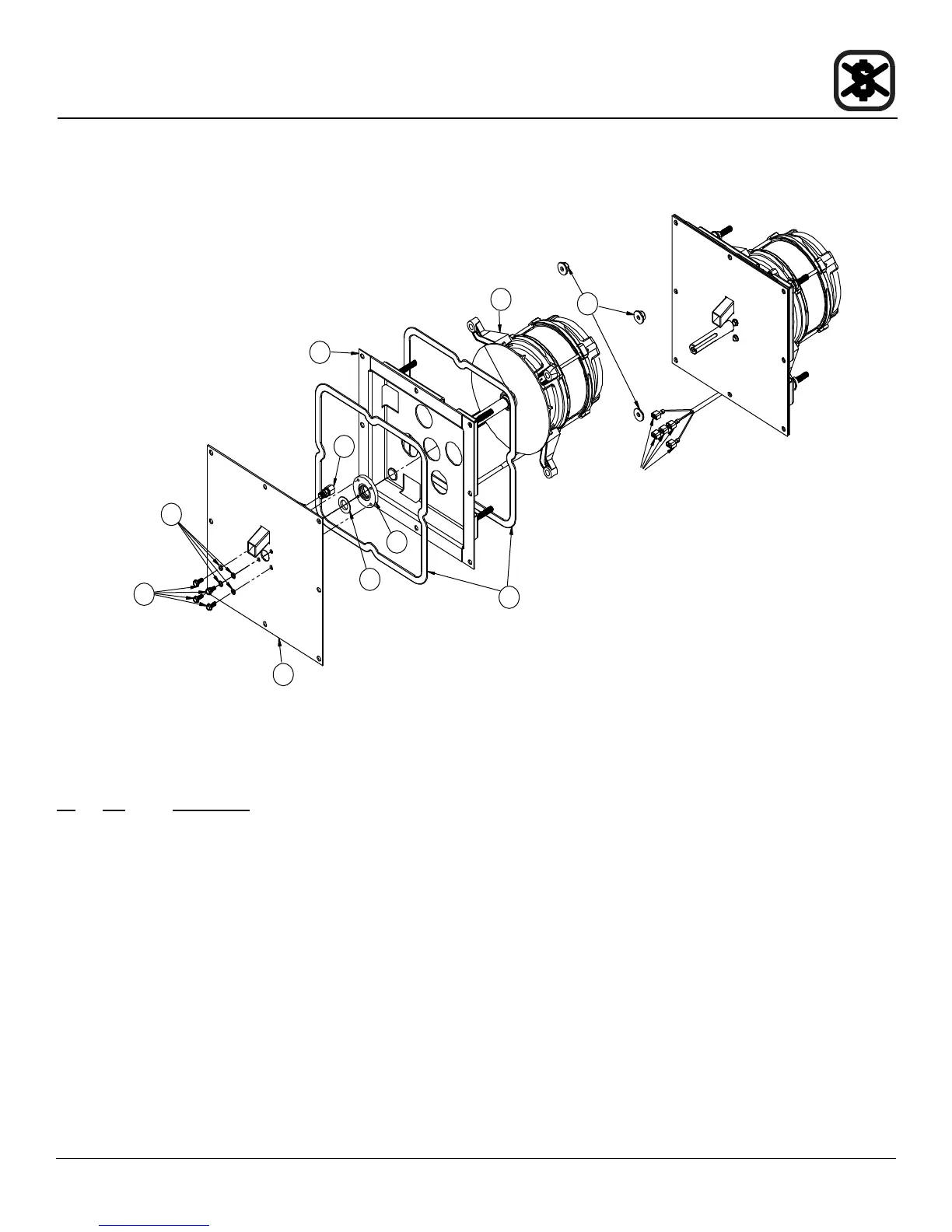

Replacement Parts
MOTOR
Ref. Part
No. No. Description
1 54294 MOTOR MOUNT ASSEMBLY
2 R8423 GORETEX GASKET, .25 X .18 (QTY 2)
3 54296 PLATE, FAN BRACKET COVER
4 R4244 SHAFT SEAL
5 R8955 SEAL RETAINER W/KEY
6 55301 MOTOR, 220V, 1/2 HP
8 R0726 WASHER, LOCK # 10 (QTY 4)
9 R1539 10-32 X .50 HXWHD MACHINE SCREW (QTY 4)
7 8628 NUT, 5/16 -18 SERRATED FLANGE (QTY 4)
10 M0959 FITTING, COMPRESSION
9
8
1
6
7
2
4
3
5
10
