26
Maintenance
Replacement Parts

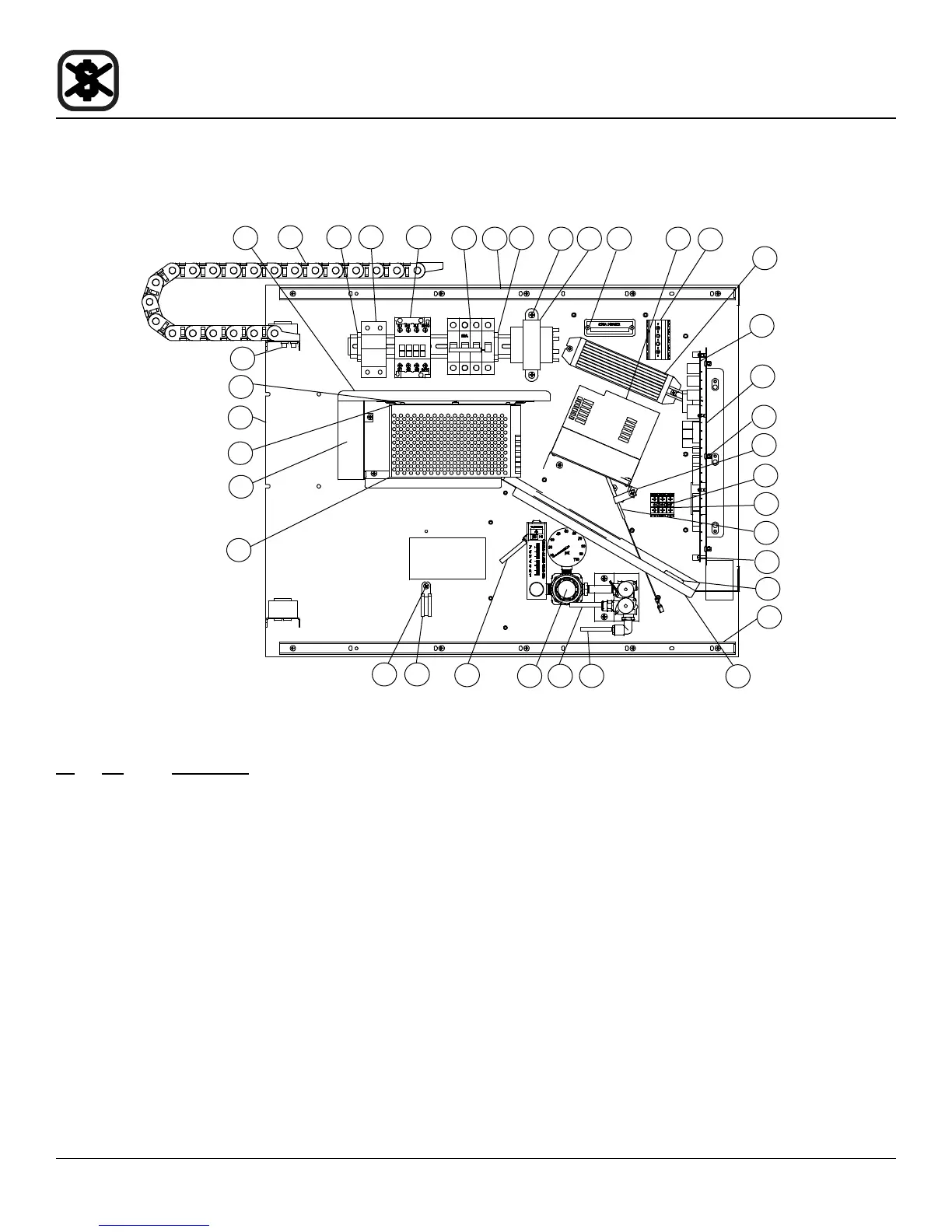

ELECTRICAL PANEL
Ref. Part
No. No. Description
1 51110 BRACKET, ELECTRICAL MOUNTING
2 51588-2 DRAWER SLIDE, MOVING (QTY 2)
3 24356 TRANSFORMER, 120V TO 24V 80VA
4 M9616 AXIAL FAN, 4” (24V)
5 M9608 24VDC POWER SUPPLY
6 51436 DUCT, LOWER AIR
7 51437 BRACKET, INVERTER DRIVE
8 38605 TERMINAL BLOCK 3 POLE
9 51122 BRACKET, COOLING DIVIDER
10 52535 ASSY, WATER MANIFOLD (NAVY)
11 51435 BRACKET, POWER SUPPLY SLIDE
12 15847 GROMMET, RUBBER 11/16
13 51489 BRACKET, I/O BOARD
14 54380 INTERFACE BOARD
9
24
38
43
42 28
2
38
17
3
41 34 15
39
14
13
23
7
31
8
20
18
32
2
6
2526
10
27
3316
30
19
1
11
4
5
