EP600 Energy Storage System User Manual
19

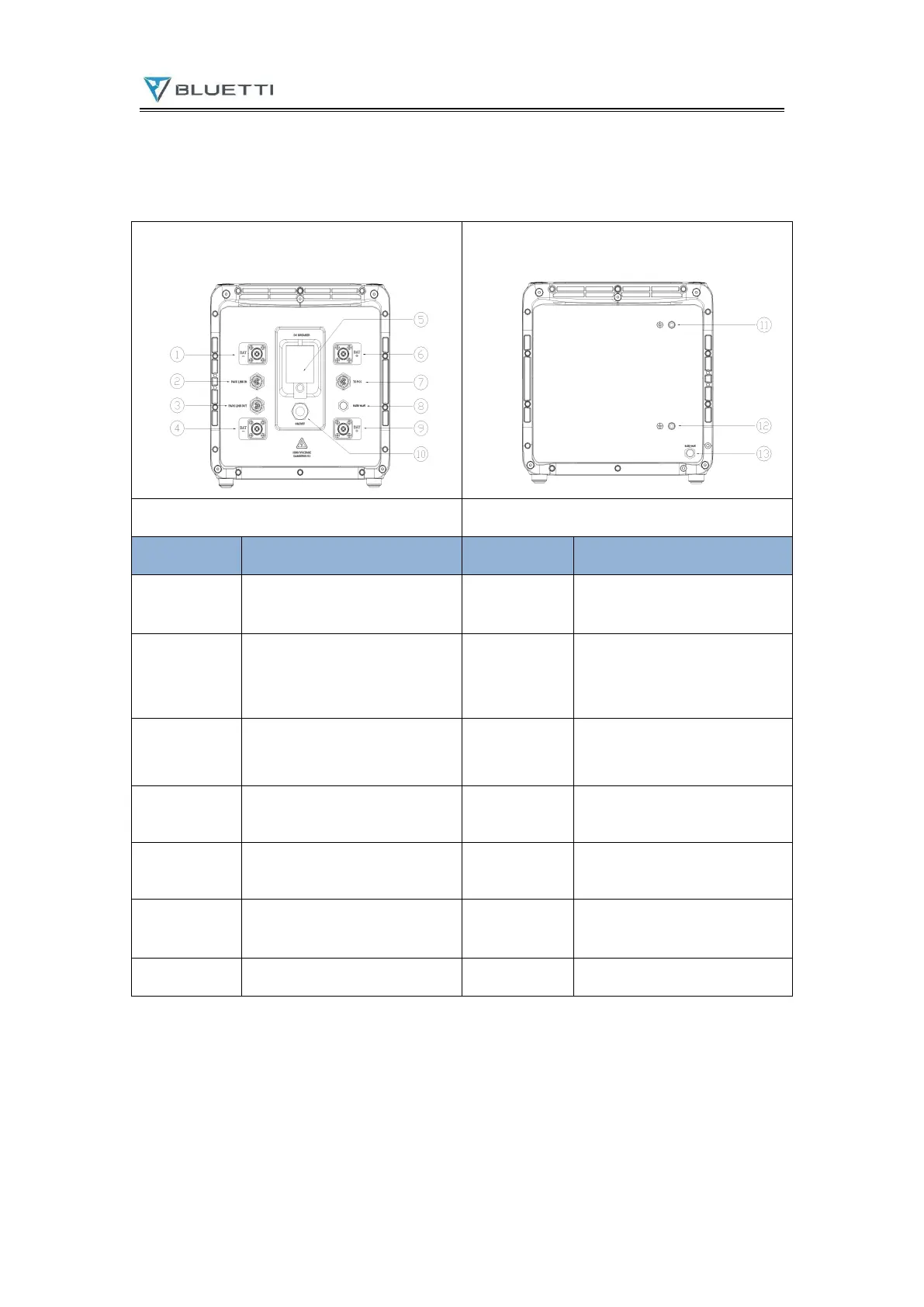

B500 Battery Pack Port Description
Table 4-2
Left
Right
NO.
Parts name
NO.
Parts name
1
Negative output cable port
(Upper)
8
Waterproof and breathable
valve
2
Signal connection cable port
(Upper)
9
Positive output cable port
(bottom)
3
Signal cable port (Bottom)
10
ON/OFF Switch
4
Negative output cable port
(Bottom)
11
Ground wire port(Upper)
5
Manual mechanical switch
12
Ground wire
port(Bottom)
6
Positive output cable port
(upper)
13
Waterproof and
breathable valve
7
Inverter signal cable port
