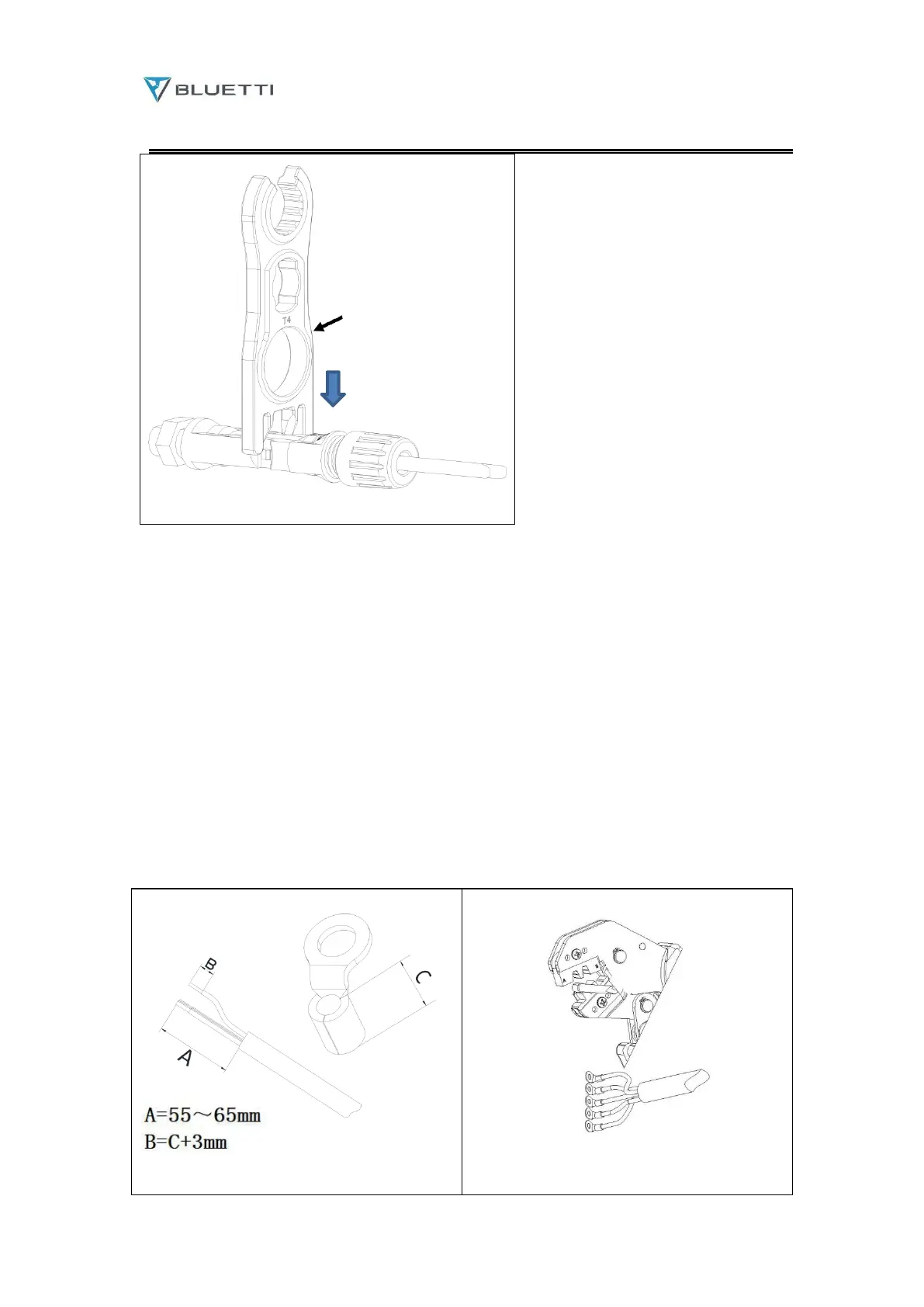

6.6 Connect the grid and load cable
Step 1: Select the appropriate cable type and specification according to figure 6-3; Strip the cable, For the
stripping length, refer to figure 6-5-1.
Step 2: Insert the wire core with the insulation layer stripped into the conductor crimping area of OT terminal,
and press it with crimping pliers(Figure 6-5-2).
Step 3: Connect the cable with crimped terminals according to the electrical polarity of the load symbols
marked on the junction box, and fasten with a screwdriver(6-5-3).
Step 4:Connect the cable with crimped terminals according to the electrical polarity of the grid symbols
marked on the junction box, and fasten with a screwdriver(Figure 6-5-4).
Step 5:Put the PG waterproof connector into the AC protective cover of junction box , and tighten the
hexagonal nut on the bottom of the PG waterproof connector with a socket tool( Figure 6-5-5).
Step6: Pass the cable through the PG waterproof connector , then fix the protective cover to the junction box
with 6Pcs M4 screws. Tighten the screws with a cross screwdriver(Figure 6-5-6).
Step 7: Tighten the nut outside the PG waterproof joint clockwise(Figure 6-5-7).
Figure 6-5-1
Figure 6-5-2
