EP600 Energy Storage System User Manual
18

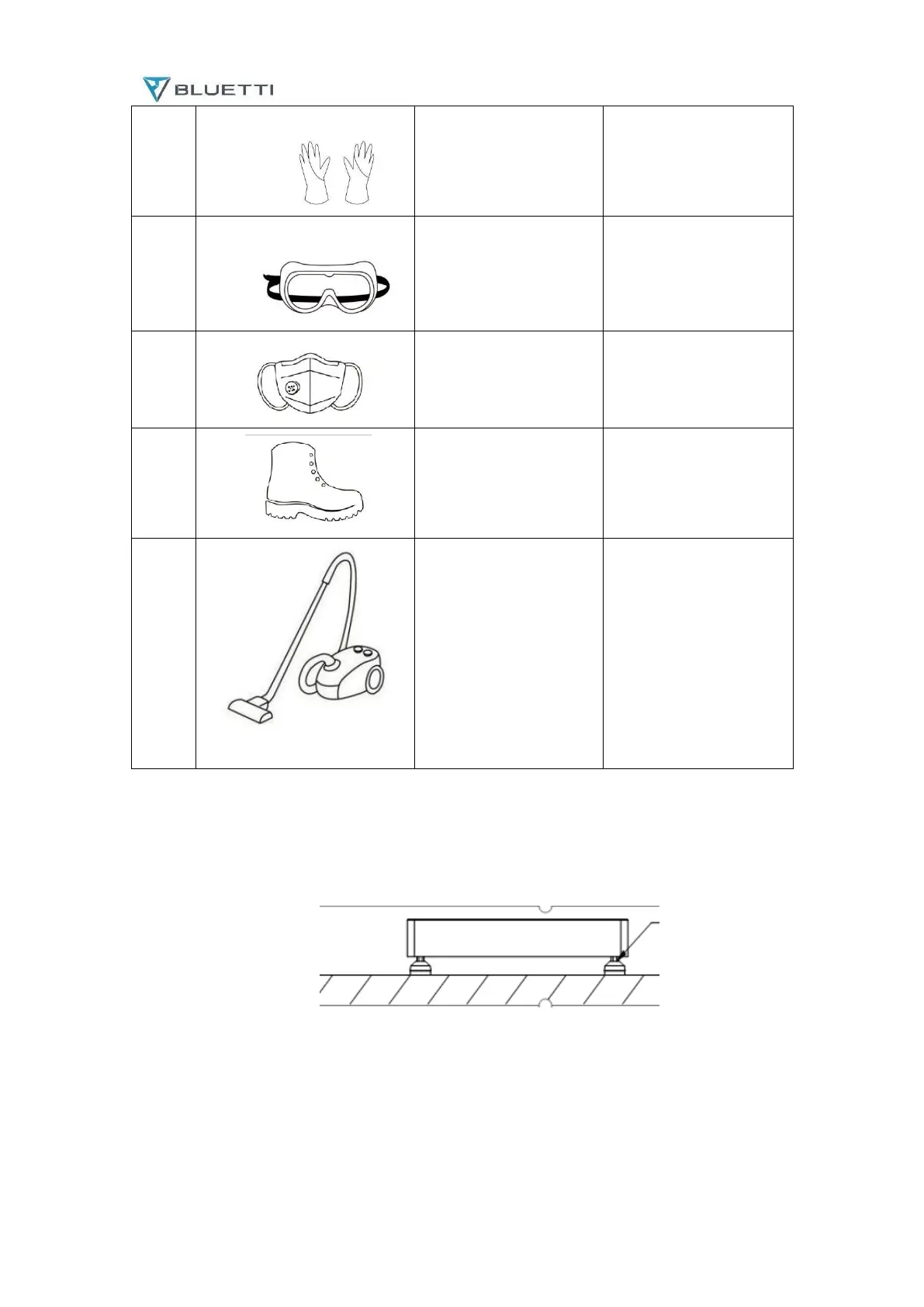

Anti-static gloves
Wear it when carrying and
installing the machine
19
Protective goggle
Wear while drilling
20
Face mask
wear while drilling
21
Safety shoes
Wear it when carrying and
installing the Energy
Storage System
22
Vacuum cleaner
Clean the site before and
after installation
5.6 installation steps
Step1：Place the base on the ground of the installation position, adjust the height of the foot cup to
make the base land stably. After the height of the foot cup is adjusted, tighten the nut so that the foot
cup is not loose.
Ground
Step2 : According to the size of the installation location diagram of the project in Figure 5-5 , use
a measuring tape to find the drilling position, mark it with a marker, and then use an electric drill
to drill the hole on the installation wall, and install the M8 expansion bolt.
Step3 : Hold the handles on two sides of the B500 battery pack by two people, lift it out of the
box and carry it to the installation position, place it on the base, and place the four feet of the
battery pack in the four grooves of the base.
Step4 : Take 2 mounting brackets No.1 and fix them on two sides of the battery pack with 4 M5X10
screws, then attach the mounting brackets No.2 through the expansion bolt and the pressure riveting
screw of bracket No.1 , and finally fix it with M8 and M5 nuts.
Height of 4 foot
cups can be
adjusted
