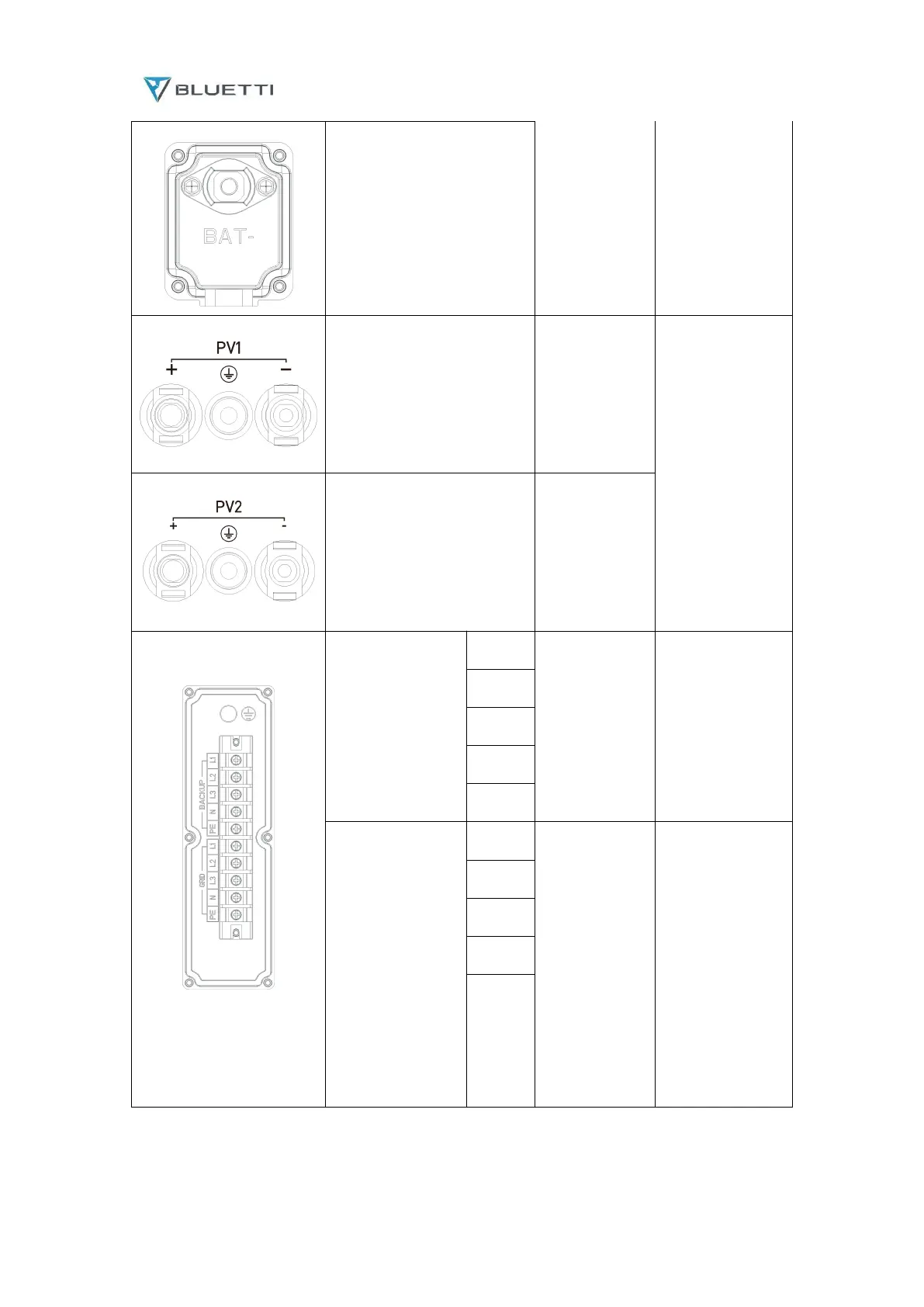

EP600 Energy Storage System User Manual
43
Standard
accessories
BAT-：Wire the battery
negative
PV1+：To solar panel
positive
PV1-：To solar panel
negative
PV1 PE：PV1 to solar panel
ground
Outdoor
multi-core
copper core
cable
Conductor cross-
sectional area
2.5mm
2
～4mm
2
PV2+：To solar panel
positive
PV2-：To solar panel
negative
PV2 PE：PV2 to solar panel
ground
Outdoor
multi-core
copper core
cable
（GRID）
L1
Outdoor
multi-core
copper core
cable
Cross sectional
area of cable
conductor
2.5mm
2
～ 4mm
2
L2
L3
N
PE
（Load）
L1
Outdoor
multi-core
copper core
cable
Cross sectional
area of cable
conductor
2.5mm
2
～ 4mm
2
L2
L3
N
PE
