EP600 Energy Storage System User Manual
50
6-6-4
1 、Battery positive terminal box（red BAT+ ）
2 、Battery positive terminal box（red BAT+ ）
3、M8×12 screws
4、Battery positive terminal box protective
cover（red BAT+）
5、M4×12 screws
6-6-3
1 、Battery negative terminal box（black BAT- ）
2 、Battery negative terminal box（black BAT- ）
3、M8×12 screws
4、Battery negative terminal box protective
cover（black BAT-）
5、M4×12 screws

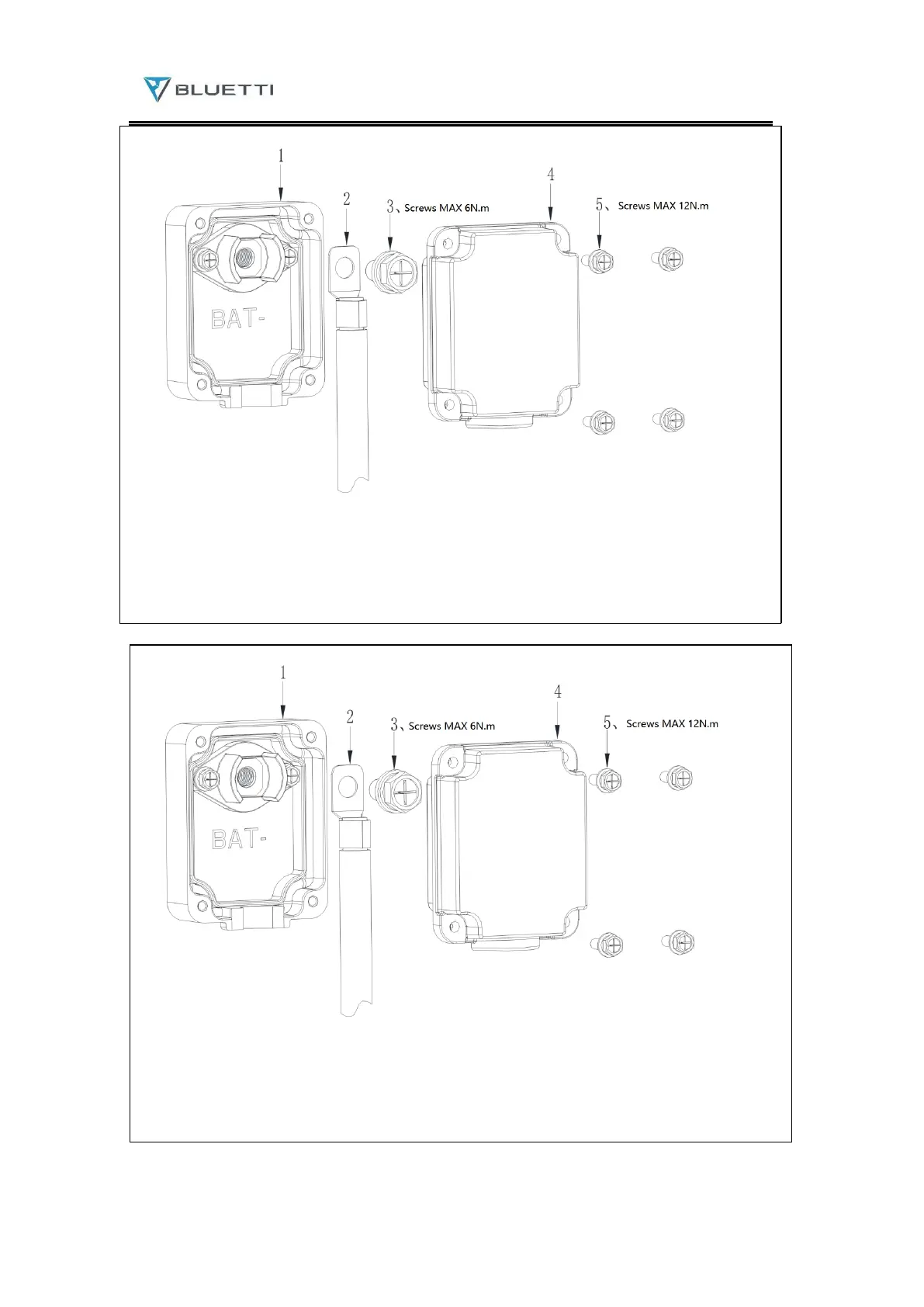

Figure 6-6 Battery positive and negative connection
