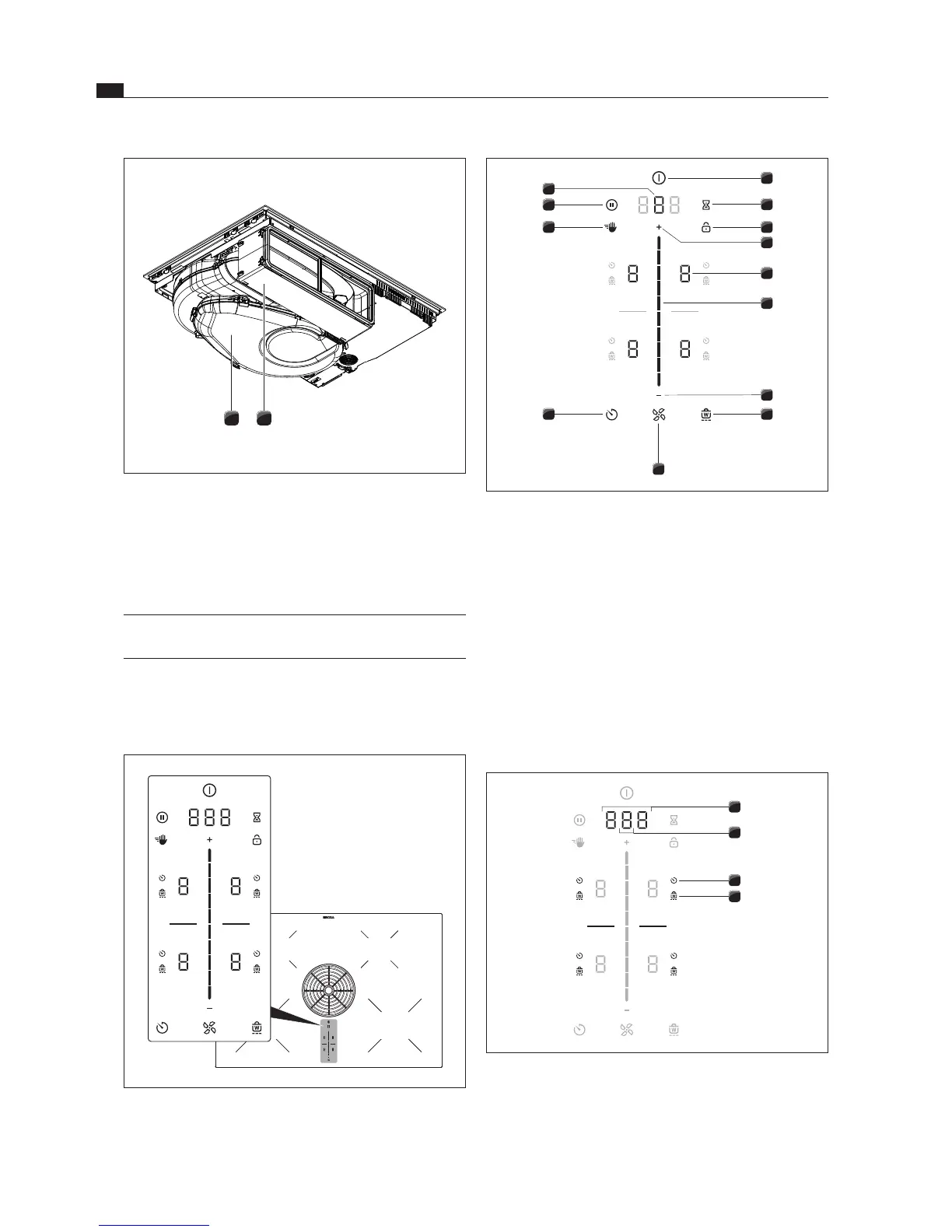

Fig. 5.5 Touch zones/buttons
[1] Switching on/off
[2] Short-time timer (egg timer)
[3] Display lock
[4] Power level setting zone plus
[5] Cooking zone selection (4x)
[6] Touch slider (power level setting zone)
[7] Power level setting zone minus
[8] Warming function
[9] Fan functions
[10] Cooking zone timer
[11] Cleaning lock
[12] Pause function
[13] Select fan/Call up menu
3
4
1
2
Fig. 5.6 Indicator zones
[1] Multi-function display
[2] Fan display
[3] Cooking zone timer indicator (4x)
[4] Warming indicator (4x)
12
Fig. 5.3 Rear view PURU
[1] PURE air cleaning box with telescopic pull-out
[2] Air guiding housing with housing base
5.2.1 Operating panel and operating
principle
INFO The operating principle and functions are
described in more detail in the Operation chapter
The cooktop extractor and cooktops are operated via a
central operating panel. The operating panel is fitted with
electronic sensor buttons and display panels. The sensor
buttons respond to finger contact (touch zones).
Fig. 5.4 Central touch/slider operating panel
