8.5.2 Closing the air guiding housing
Position the housing base [2] under the air guiding
housing [1] with the help of the 3 spigots[1].
Push the housing base [2] upwards into the sealing
groove [4].
Close the 6 locks [5].
Check that the housing base is positioned correctly.
Inside the inlet opening push the filter replacement
cover until it comes to a stop in the filter housing
opening (To insert the filter replacement cover see Fig.
8.10).
Check that the filter replacement cover is positioned
correctly.
Insert the stainless steel grease filter and the air inlet
nozzle.
8.6 Replacing the activated charcoal
filter
An activated charcoal filter will only be fitted with the
stainless steel grease filter if the cooktop extractor is
used in recirculation mode. The activated charcoal filter
absorbs cooking odours that arise during cooking.
INFO
The activated charcoal filter must be replaced
when the fan indicator shows
F
(Filter service
indicator). You can obtain the activated charcoal
filter PUAKF from your specialist supplier or by
contacting BORA via the website at www.bora.com.
Make sure that the cooktop and cooktop extractor are
switched off (see the Operation chapter).
Wait until the fan power level indicator shows
0
.
8.6.1 Removing the activated charcoal filter
Remove the air inlet nozzle and stainless steel grease filter.
21
Fig. 8.4 Remove the lter replacement cover
[1] Filter replacement cover
[2] Inlet opening
Inside the inlet opening [2] pull the filter replacement
cover [1] out through the opening in the filter housing.
8.5 Cleaning the air guiding housing
Grease particles and limescale residues from cooking
vapours can settle on the surface of the air guiding
housing. For this reason, regular cleaning is essential.
The air guiding housing can be found on the bottom of the
cooktop inside the floor unit.
8.5.1 Opening the air guiding housing.
Make sure that the cooktop and cooktop extractor are
switched off (see the Operation chapter).
Wait until the fan level indicator shows
0
.
Remove the air inlet nozzle and stainless steel grease
filter.
Inside the inlet opening pull the filter replacement
cover out of the filter housing opening (To remove the
filter replacement cover see Fig. 8.4).
1
2
5 4 3

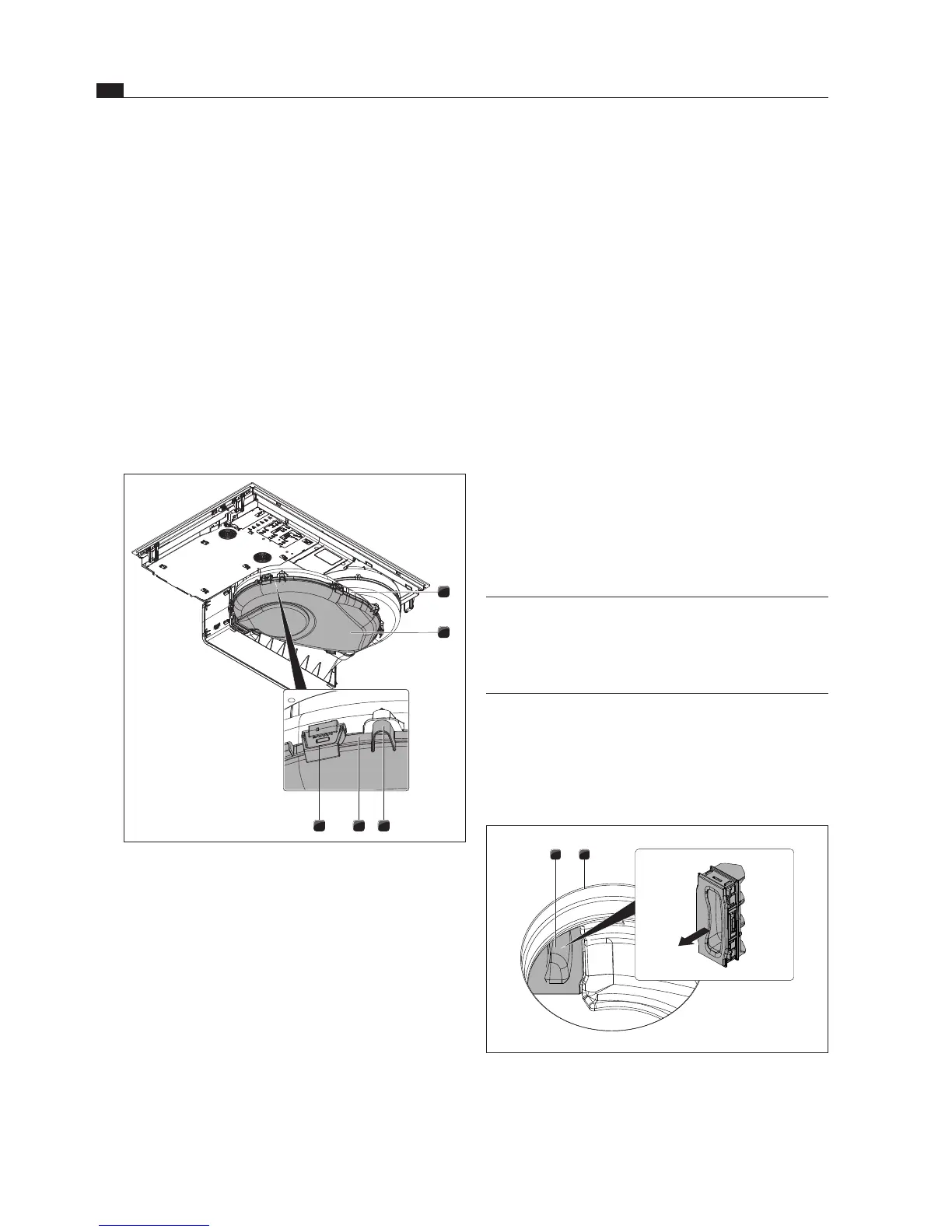

Fig. 8.3 Air guiding housing
[1] Air guiding housing
[2] Housing base
[3] Spigot
[4] Sealing groove
[5] Lock
Hold the housing base [2] with one hand.
Release the 6 locks [5] around the edge of the base.
Remove the housing base [2].
Clean the air guiding housing [1] and the housing base
[2] with a mild cleaning agent.
