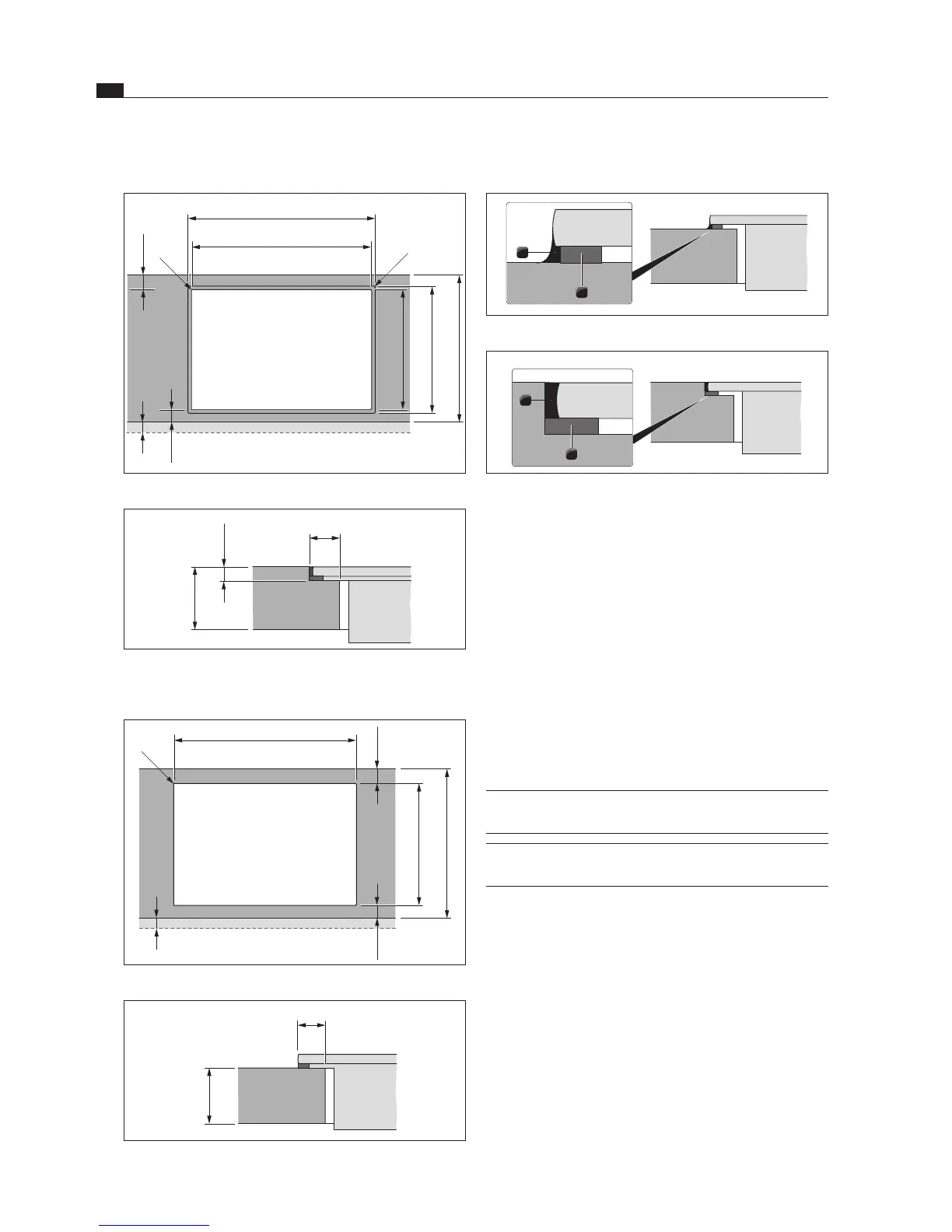

6.5 Attaching the sealing tape
2
1
Fig. 6.8 Sealing tape in surface mounting
1
2
Fig. 6.9 Sealing tape in ush installation
[1] Black, heat-resistant silicone sealant
[2] Sealing tape
[3] Optional height adjustment plates
With surface mounting, attach the enclosed sealing
tape [2] to the underside of the cooktop before
installing it. Do not leave any gaps.
With flush installation, attach the enclosed sealing tape
[2] to the horizontal cutting edge in the worktop cut-
out, even if you are sealing the cooktop with a silicone
sealing compound [1] or similar.
6.6 Installing the recirculation
version (PURU)
INFO A minimum clearance of 25 mm must be provided
for the vertical return flow aperture.
INFO A return flow aperture of at least 500 cm
2
must be
provided.
If the cooktop extractor is used exclusively in
recirculation mode, operation with an open fireplace is
possible without any additional safety measures.
Flush installation
x
764 ±2
740 ±2
519 ±2
≤ R5
≤ R5
≥ 50
(≥ 50)
495 ±2
≥ 600
Fig. 6.4 Cut-out dimensions for ush installation
7 +0,5
12
10 - 40
Fig. 6.5 Rebate dimensions for ush installation
Surface mounting
x
740 ±2
≤ R5
≥ 50 (≥ 50)
495 ±2
≥ 600
Fig. 6.6 Cut-out dimensions for surface mounting
10
