5.14 Display test
(Testing TFT display)
5.15 Display test geometry
5.16 Display test full screen
all white

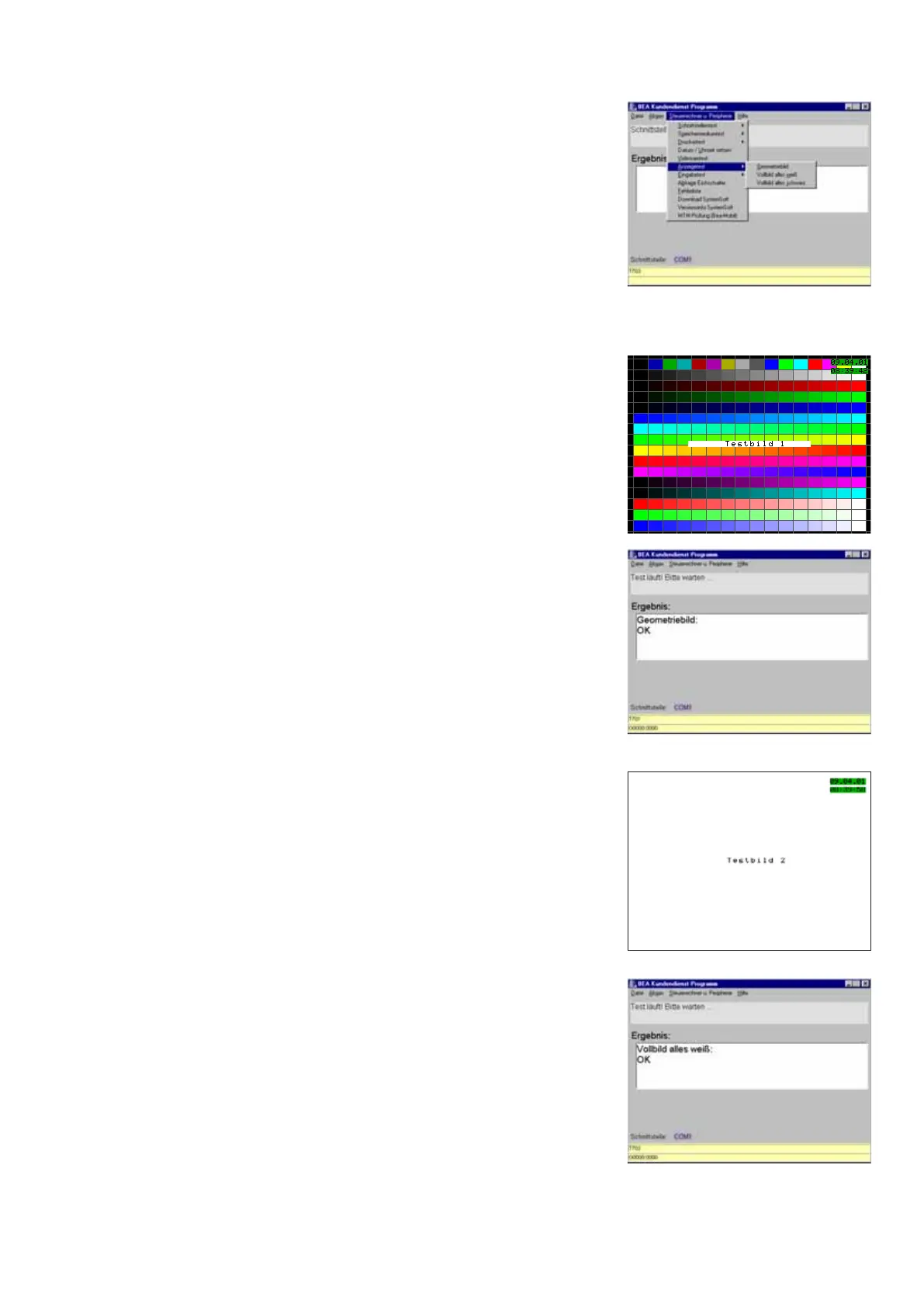

This menu serves to test the TFT display.
Select the Display test menu and open
the Display test menu by double clicking
on the left-hand mouse button or using the
Enter E key on the keyboard
i Various image tests are
performed on the TFT display of the BEA.
Select the Geometry image menu and
open the menu by double clicking on the
left-hand mouse button or using the Enter
E key on the keyboard
The geometry image is generated on the
BEA’s TFT display.
If the geometry image is in order, then the
Service software image displays the
following reference:
Geometry image OK.
In the event of a fault a clear text message
is issued.
Select the Full screen, all white menu
and open the menu by double clicking on
the left-hand mouse button or using the
Enter E key on the keyboard
The geometry image is generated on
the BEA’s TFT display.
If the full screen white is in order, then the
Service software image displays the
following reference:
Full screen all white OK.
In the event of a fault a clear text message
is issued.
