5. Functional description
The telematics unit installed in the vehicle,
referred to as CCU-Modul (connectivity control unit) in the
following, gathers data using the built-in 3D sensor and GPS
receiver. The CCU-Modul is to be connected either with the
voltage supply or with the OBD interface. If it is connected to
the vehicle's OBD interface, additional vehicle-specific data
(mileage, DTCs generated by the control unit and many more)
will be tracked and transmitted to the service provider using
the built-in mobile module. The service provider will be able
to access and process that data.
i If you have questions concerning the data gathered,
consult the provisions in your contract or contact your
service provider.
6. Device description

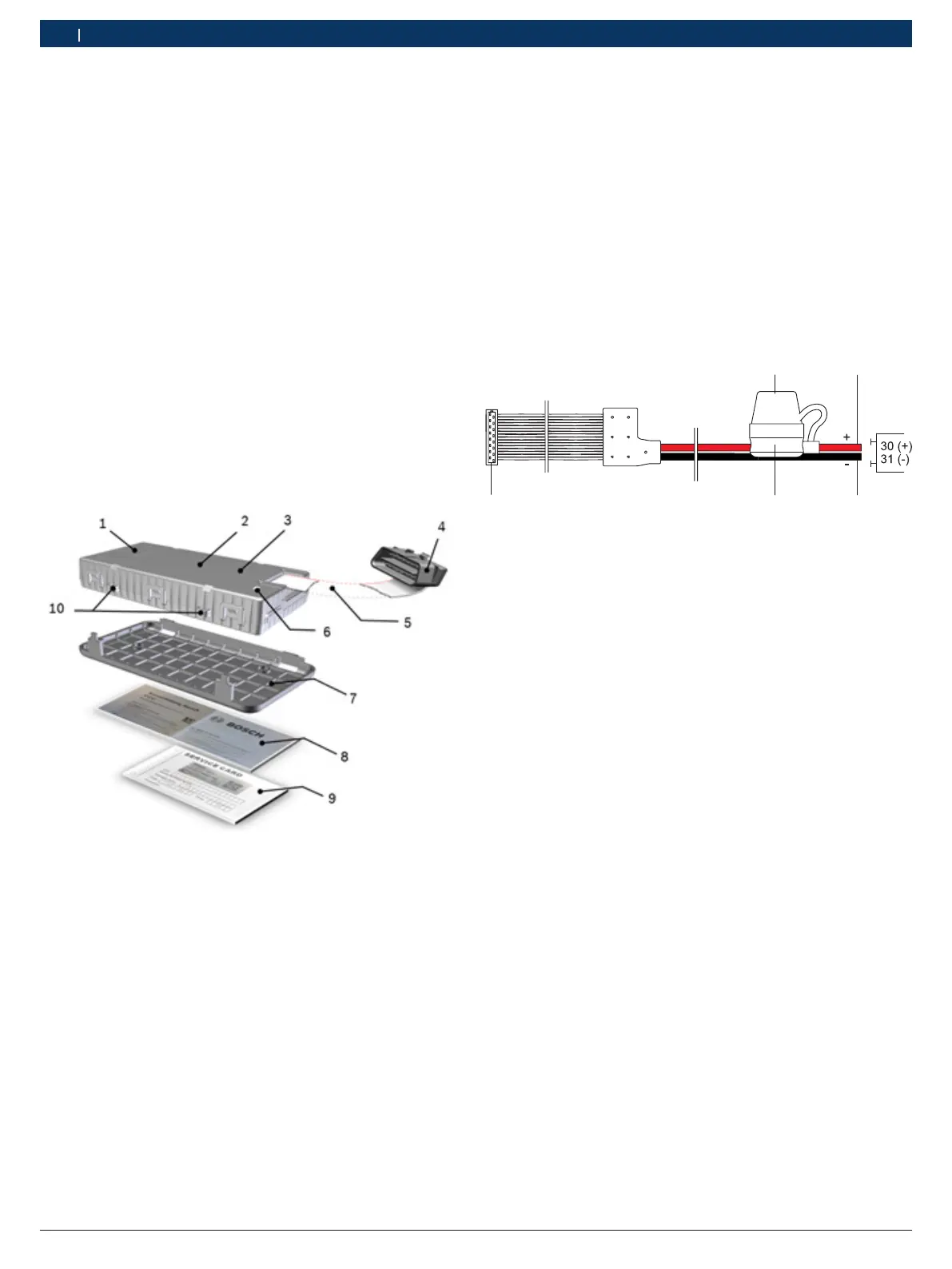

Fig. 1: CCU-Modul with accessories
1 integrated GSM antenna and installed SIM card
2 CCU-Modul
3 Integrated GSM antenna
4 OBD connector
5 OBD connection cable
6 LED (status display) CCU-Modul
7 Holder (use is optional)
8 Instructions entitled "Important information"
9 Service card
10 Loops for cable ties
7. Two-wire connection cable
(Special accessories )
Two-wire connection cable (part number: 1687010556) for
connecting a connectivity control unit (CCU-Modul) with a
vehicle's voltage supply (only for cases where the CCU-Modul
cannot be connected using the OBD connection cable).
! If the two-wire connection cable is improperly connected
the the vehicle, this may result in faults and damage to the
vehicle's electronics which may subsequently compromise
vehicle safety.
5
Fig. 2: Two-wire connection cable (optional accessory)
1 Protective cap,
2 Positive cable (red)
3 Ground cable (black)
4 Fuse holder with 2A fuse inserted (ATM/MINI)
5 Connector on CCU-Modul.
1 689 989 295 2017-06-27| Robert Bosch GmbH
3 | CCU-Modul | Functional descriptionen
