Information on the Connectivity main menu
39
Control 8313 – 6720859567 (2017/03)
Setting up the Internet connection
The connection with the Internet can only be established with the
address 0 via the master control unit. It is not possible to establish a
connection via other control units.
The setting options Internet and Modbus are only available for the
master control unit with the address 0.
A connection with the Internet can be established via the LAN 1 interface
of the master control unit.
To set up the network connection:
▶ Insert the LAN cable in the LAN 1 connection ( Fig. 13, [10],
page 16) and connect to the router.
▶ Call up the service level.
▶ Tap the field.
The login mask is displayed.

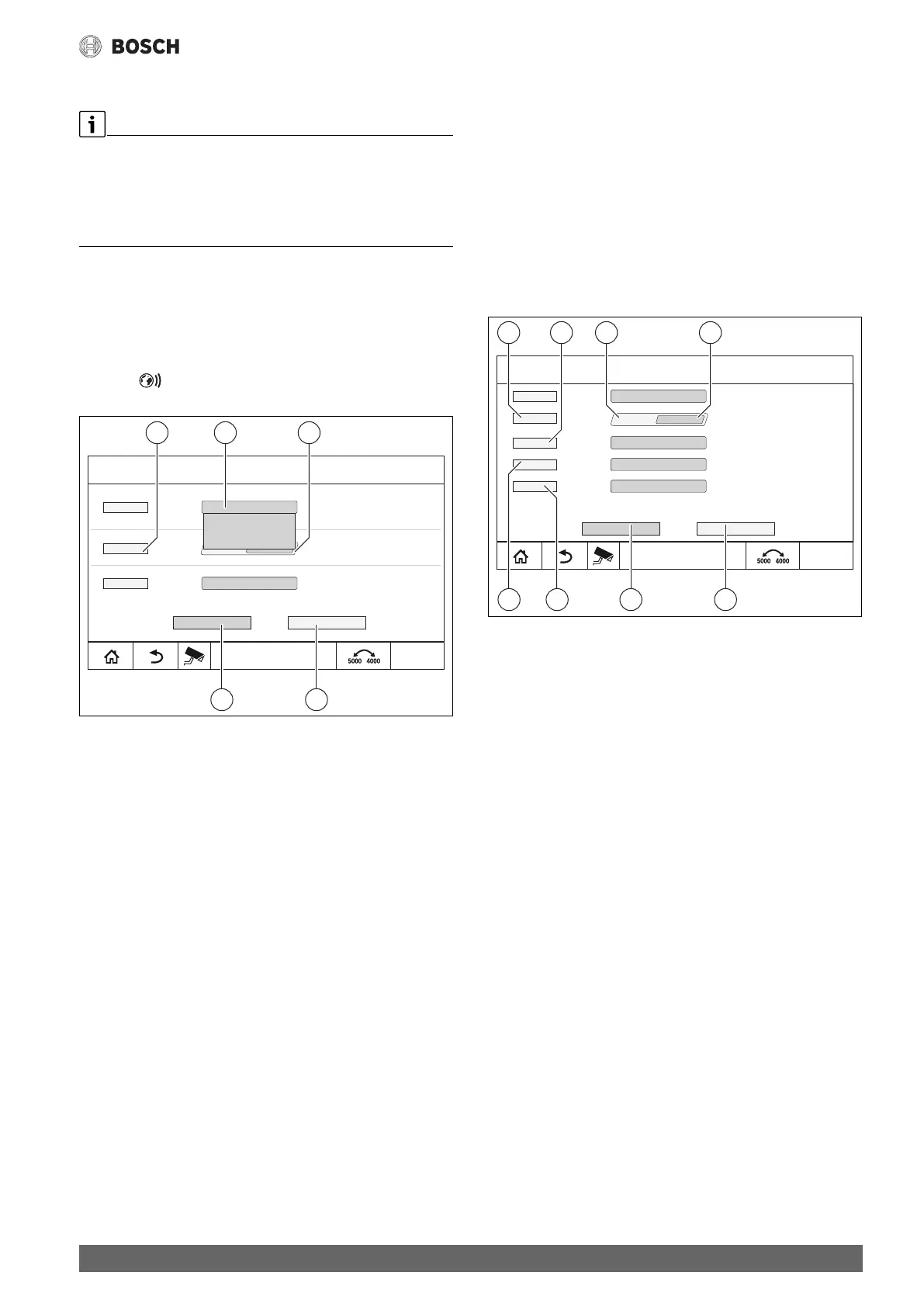

Fig. 25 Network connection login mask
[1] Address assignment
[2] Settings for LAN 1
[3] Static/DHCP
[4] Cancel
[5] Save
▶ Tap selection menu for LAN 1.
A selection box opens.
The following adjustments can be made for LAN 1:
• Internet
• CBC-BUS
• Modbus TCP/IP
▶ Select Internet.
▶Set Address assignment.
The address allocation parameters are shown according to the
selection.
If you select DHCP, the address data is automatically allocated. If you
select Static, the address data must be entered manually.
If you select Static, the IP Address, Subnet Mask and Gateway fields
are displayed and must be filled out ( Fig. 26).
Fig. 26 Manual Address assignment
[1] Address assignment
[2] IP Address 1
[3] Static
[4] DHCP
[5] Cancel
[6] Save
[7] Gateway 1, Gateway 2
[8] Subnet Mask 1
Once the connection test has been completed successfully, the status of
the connection is displayed:
• Green symbol
Connection with router and server ok
• Yellow symbol
Router connected, server not connected
• Red symbol
No connection with router and server
The Internet connection symbol is displayed in the header
( Fig. 6, [6], page 12).
• Visible and green
Network connection is active, connection with router and server
is active
• Visible and yellow
Network connection is active, connection with router is active,
no connection with server
• Visible and red
Network connection is active, no connection with router and server
• Not visible
Network connection is not active
0010009549-001
12:00
LAN 1
LAN 2
21 3
5 4
0010009547-001
12:00
LAN 1
192.168.2.1
255.255.255.0
192.168.2.0
1 3 42
68 7 5
