Bosch DIVAR AN 5000 User Manual

IP filter

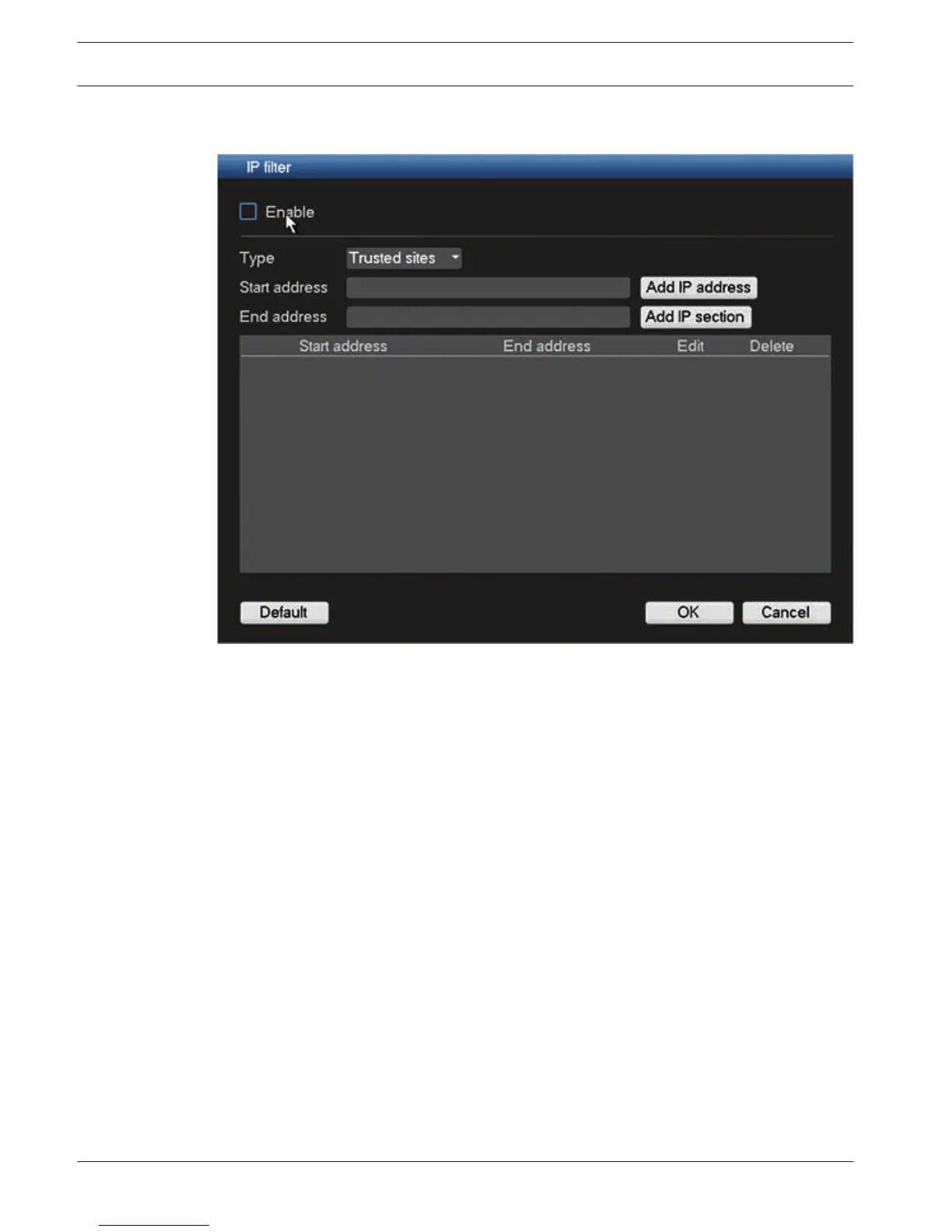

Figure 6.11: Network IP filter
The system supports IPv4 and IPv6 address format.
Enable
Select to choose for access to ‘Trusted’ or ‘Blocked’ sites IP addresses. If you disable this
function, all IP addresses can access the current DVR
Type
Choose from Trusted or blocked sites.
Start address / End address
Add IP addresses to the list displayed at the bottom half of the screen (the list supports a
maximum 64 IP addresses). If you input the IPv6 address format, system needs to check its
validity and optimize its format. For example, it can optimize IP:”fe80::0054:0cff:fefa:1682”
to ”fe80::54:cff:fefa:1682”.
6.6.2
50 en | Configuration DIVAR AN 3000 / DIVAR AN 5000
2014.10 | 2.0 | AM18-Q0669 Operations Manual Bosch Security Systems

Bosch DIVAR AN 5000 Specifications

General

Motion sensor	Yes
Total storage capacity	2000 GB
Video compression formats	H.264
Analog signal format system	NTSC, PAL
Compatible operating systems	Windows XP, Windows Vista, Windows 7.
Playback resolutions supported	960x576, 960x480, 704x576, 704x480, 704x288, 704x240, 352x288, 352x240, 176x144, 176x120
Audio input	4
BNC input ports	16
USB 2.0 ports quantity	1
Ethernet interface type	Gigabit Ethernet
HDD interface	Serial ATA
Maximum HDD capacity	3000 GB
Power requirements	100-240VAC 50-60Hz
Optical drive included	No
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 93 %

Weight and Dimensions

Dimensions (WxDxH)	440 x 420 x 70 mm
