UPnP

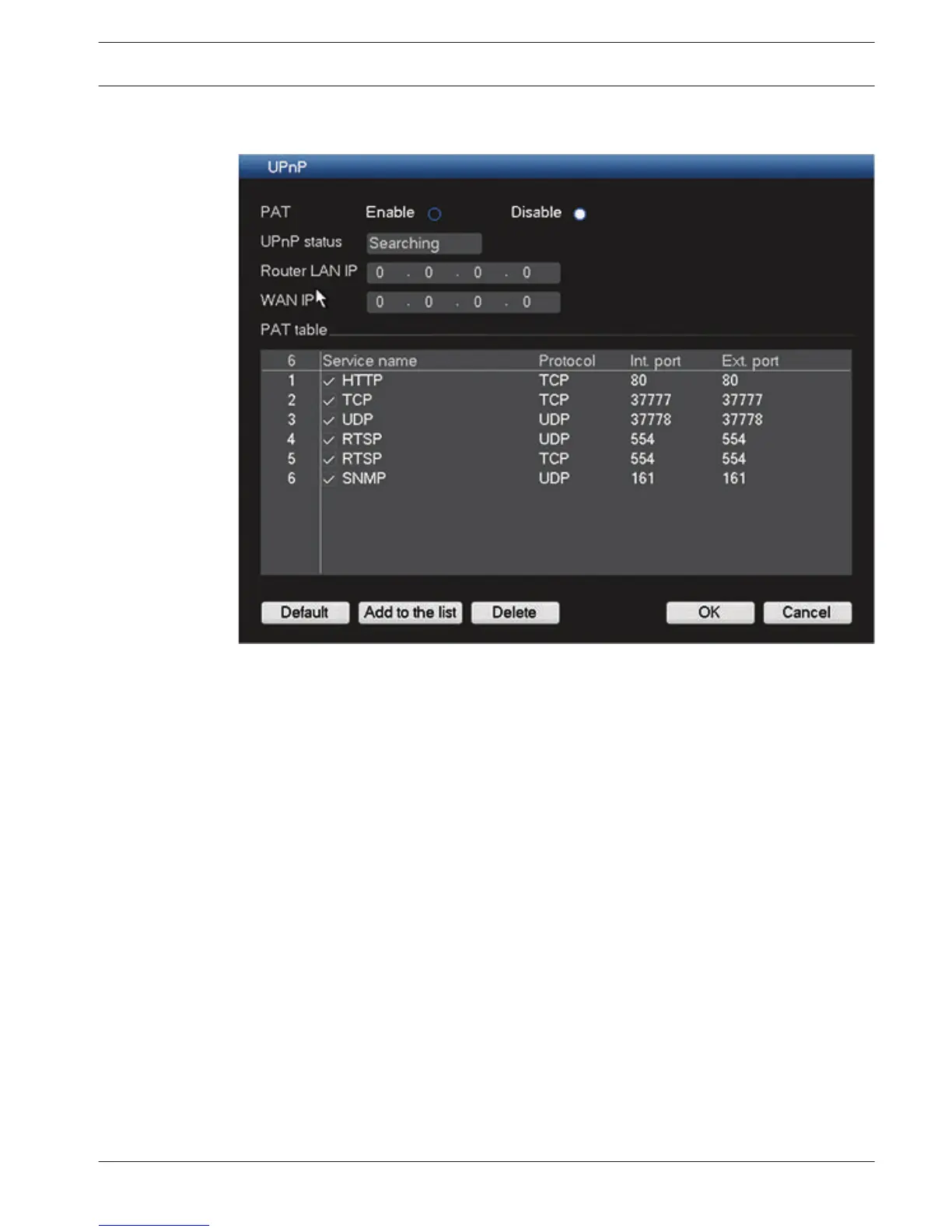

Figure 6.15: Network UPnP
This protocol enables a mapping relationship between the LAN and the WAN
Enter here:
– PAT Enable/Disable - enable or disable the UPnP function on this device
– Status – Can be Success, Searching or Unknown (when the system is offline)
– Router LAN IP
– Router WAN IP
The bottom table shows the PAT (port mapping list) with a one-to-one relationship with the
router port mapping setting:
– Click the relevant checkbox to enable a port.
– Double-click a port to change a setting
– Select a port and click <Delete> to remove a port setting
– Click <Add to the list> to open a ‘Port info’ dialog box to add a new port setting
6.6.6
DIVAR AN 3000 / DIVAR AN 5000 Configuration | en 53
Bosch Security Systems Operations Manual 2014.10 | 2.0 | AM18-Q0669

Bosch DIVAR AN 5000 Specifications

General

Motion sensor	Yes
Total storage capacity	2000 GB
Video compression formats	H.264
Analog signal format system	NTSC, PAL
Compatible operating systems	Windows XP, Windows Vista, Windows 7.
Playback resolutions supported	960x576, 960x480, 704x576, 704x480, 704x288, 704x240, 352x288, 352x240, 176x144, 176x120
Audio input	4
BNC input ports	16
USB 2.0 ports quantity	1
Ethernet interface type	Gigabit Ethernet
HDD interface	Serial ATA
Maximum HDD capacity	3000 GB
Power requirements	100-240VAC 50-60Hz
Optical drive included	No
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 93 %

Weight and Dimensions

Dimensions (WxDxH)	440 x 420 x 70 mm
