Bosch EPS 708 - Design Features; Tower; Desktop

1 689 989 158 2012-10-12| Robert Bosch GmbH
16 | 1 687 023 652 – 658en

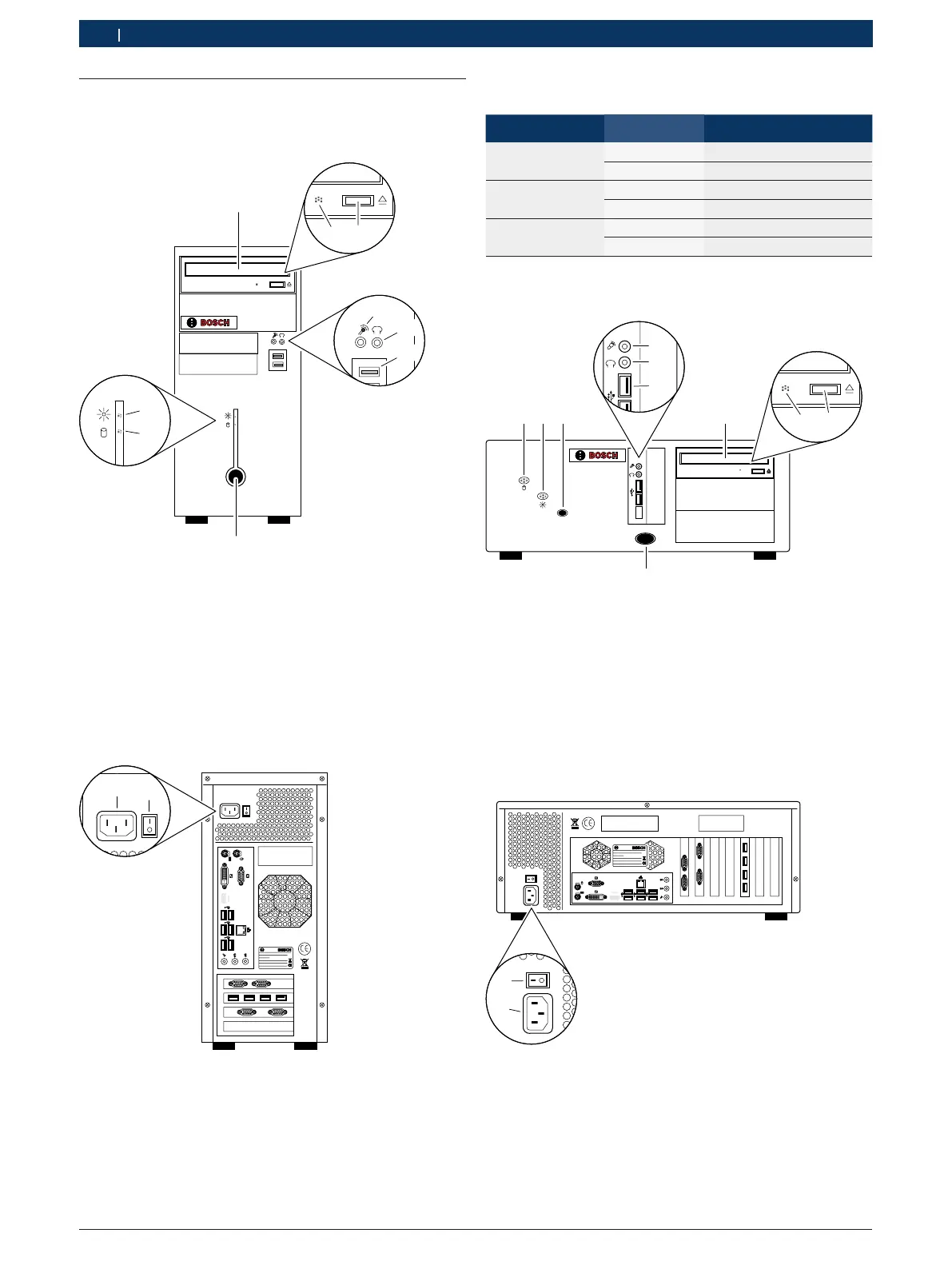

3.6 Design features
3.6.1 Tower
459935-01_Ht
1
2
3
4
5
6
7
8
9
Fig. 1: Front view
1 DVD drive
2 DVD drive LED
3 Eject button
4 Microphone connection
5 Headphone connection
6 USB connection (USB 2.0)
7 On/Off LED
8 Hard disk access LED
9 Standby button
459935-02_Ht
1
2
Fig. 2: Rear view
1 Mains connection
2 On/Off switch
LED status
LED Display Status
On/Off Off PC not ready for operation
Green light PC ready for operation
Hard disk access Off Hard disk not active
Flashing green Data being read or saved
DVD drive Off DVD drive not active
Flashing green Data being read or written
3.6.2 Desktop
459935-03_Ht
1
2
3
4
5
6
8 9
10
7
Fig. 3: Front view
1 Hard disk access LED
2 On/Off LED
3 Reset button
4 Microphone connection
5 Headphone connection
6 USB (USB 2.0)
7 DVD drive
8 DVD drive LED
9 Eject button
10 Standby button
459935-04_Ht
1
2
Fig. 4: Rear view
1 On/Off switch
2 Mains connection
