34 en | Product Description Modular Fire Panel
F.01U.028.089 | 5.4 | 2009.08 Product Information Bosch Sicherheitssysteme GmbH
Conditions for the assignment of the card slots

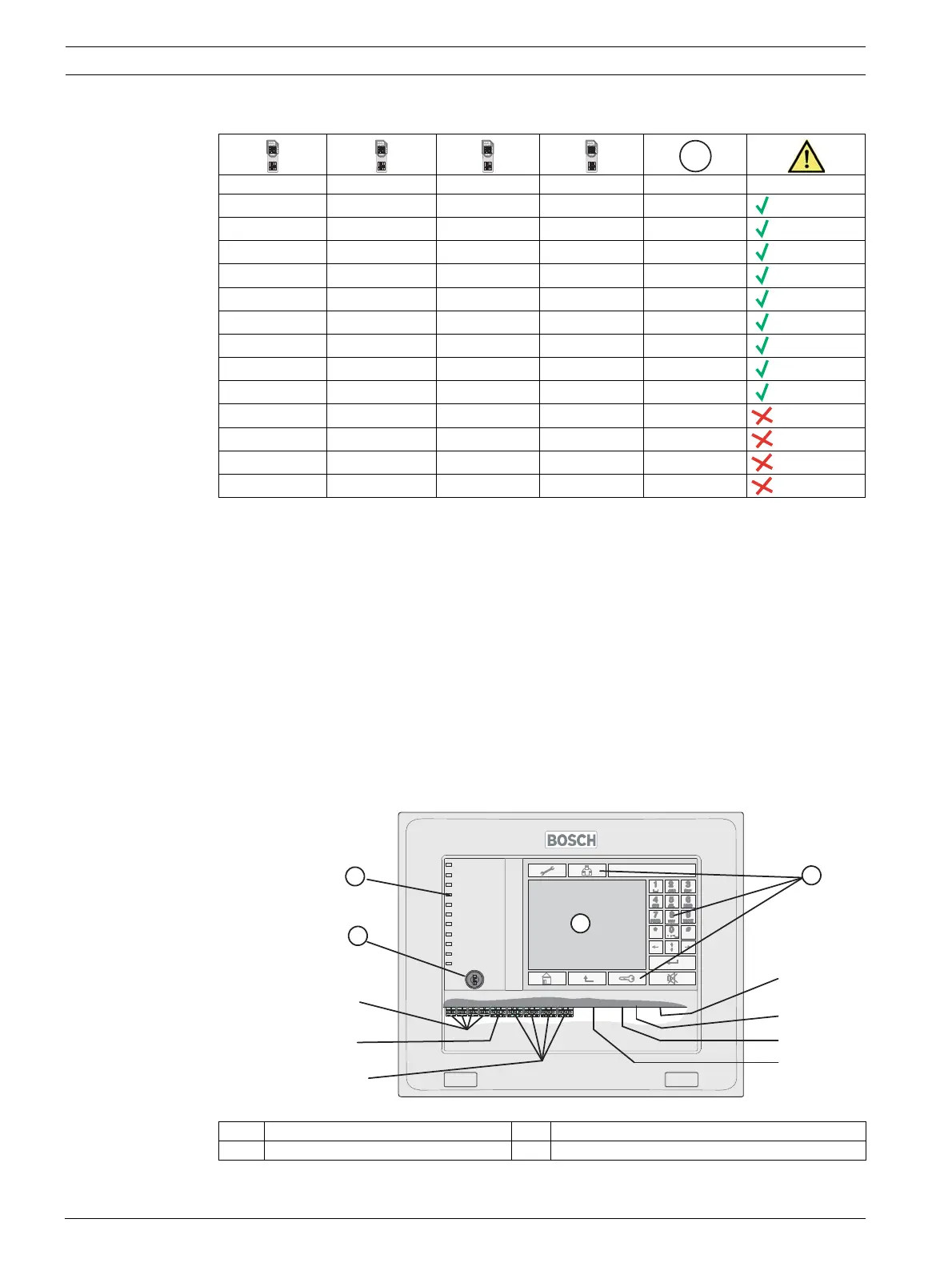

1.14 FMR-5000 Remote Keypad
The same control system is used in the FMR-5000 Remote Keypad as in the MPC-xxxx-B Panel
Controller. This can be used to perform the same operating procedures as the control panel,
enabling variable operation of a networked system.
The control unit has two CAN interfaces (CAN1/CAN2) to enable system networking with bus
or loop topology. Two signal inputs (IN1/IN2) and three additional connections (Ethernet,
USB, RS232) are available.
Power can be supplied by the panel or an external power supply unit such as the FPP-5000.
On the back there are three rotary switches for addressing and six DIP switches for
configuration settings.
The easy-to-install housing was designed for tilted installation and for flush and surface wall
mounting.
1234Σ≤ 4096
0064 0064 0064 0064 0256
0064 0128 0512 1024 1728
0128 0512 0512 1024 2176
0512 0512 0512 0512 2048
0512 0512 1024 OPC 2048
0128 0512 1024 2048 3712
0512 0512 1024 2048 4096
1024 1024 1024 OPC 3072
1024 1024 2048 OPC 4096
2048 2048 2048 2048 8192
512 2048 2048 OPC 4608
1024 2048 2048 OPC 5120
2048 2048 2048 OPC 6144
i
A Touch screen C 11 LEDs for displaying the operating status
B 22 keys for standard entries D Key switch
2xDC1/2xDC2
RS232
USB Host
IN1 / GND / IN2
2xCAN1/2xCAN2
Ethernet
(RJ45)
A
C
D
B
USB Device
