User guide
| OBD 1350
ProGrade OBDII Scan Tool
580001 | REV. A | 11.2016

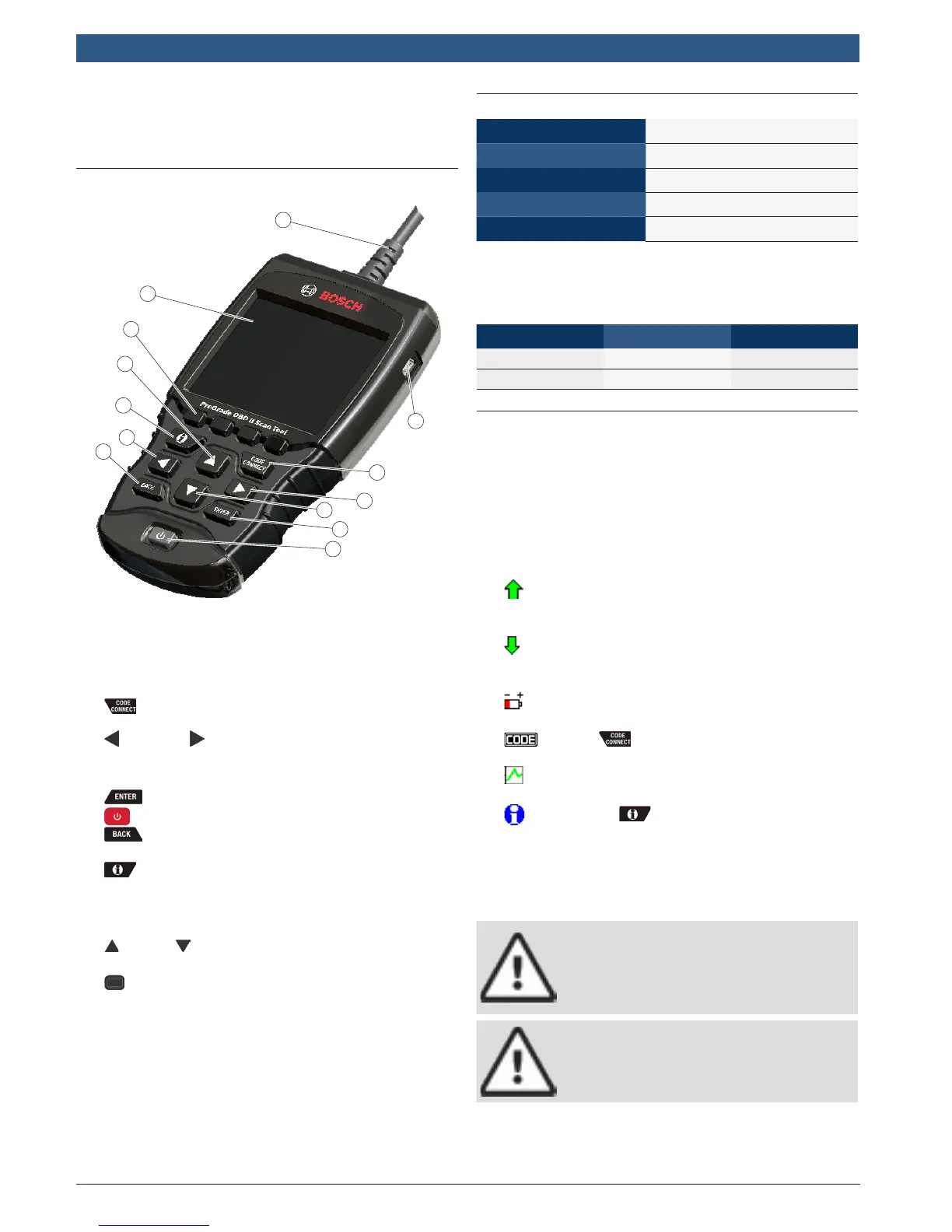

4 Using the Scan Tool
4.1 The Scan Tool
1
3
5
6
4
9
2
9
8
11
10
4
7
1. DLC Cable - provides connection for vehicle inter-
face.
2. USB Port - provides a USB connection for the com-
puter.
3. CodeConnect® - allows the operator to access
vehicle-specific repair information.
4. LEFT and RIGHT arrow keys - selects YES or
NO and selects data parameters for custom data
list.
5. ENTER key - selects displayed items.
6. ON/OFF key - turns power ON or OFF.
7. BACK key - goes to the previous screen or
level.
8. MORE INFO key - displays the Diagnostic
Trouble Code (DTC) definition when viewing Freeze
Frame Data. It will display the code setting criteria
when viewing DTC definition.
9. UP and DOWN arrow keys - moves selection
up or down.
10. SOFTKEYS are used to perform the specified
action on the display directly above the key.
11. LCD display (color, backlit, QVGA resolution).
12. Serial Number Plate (on back; not shown) - Located
inside battery compartment, provides serial number
of scan tool.
13. Battery Compartment (on back; not shown) - pro-
vides power to the scan tool when reprogramming
from a personal computer or off-vehicle reviewing of
codes and printing.
4.2 Specifications
Display Color, backlit, QVGA resolution
Operating Temperature
0 to 50°C (32 to 122°F)
Storage Temperature -20 to 70°C (-4 to 158°F)
Internal Power
4-AAA batteries
External Power 7 to 16 Volts
A minimum of 8.0 V is required for most control modules
to operate properly in a vehicle.
Dimensions
Height Width Depth
6.5 inches 3.75 inches 1.13 inches
165.1 mm 95.25 mm 28.7 mm
4.3 Display
The display has a large viewing area for displaying mes-
sages, instructions, and diagnostic information.
The back-lit liquid crystal display (LCD) is a QVGA pixel
display. Display icons used to help operate the scan tool
are:
• √ Indicates information is available for an item or
multiple items.
• Indicates additional information is available by
scrolling up.
• Indicates additional information is available by
scrolling down.
• Indicates internal batteries need replacing or are
not installed.
• Indicates is active.
• Indicates graphical viewing of data items is avail-
able in View Data.
• Indicates the key is active.
Keypad
The keypad is used to move through the different menus
of the scan tool. The scan tool’s software is designed for
ease in operating and navigating through menus.
CAUTION
Do not use solvents such as alcohol to clean
keypad or display. Use a mild nonabrasive
detergent and a soft, cotton cloth.
CAUTION
Do not soak keypad as water might find its
way inside the scan tool.
