User guide
| OBD 1350
ProGrade OBDII Scan Tool
580001 | REV. A | 11.2016

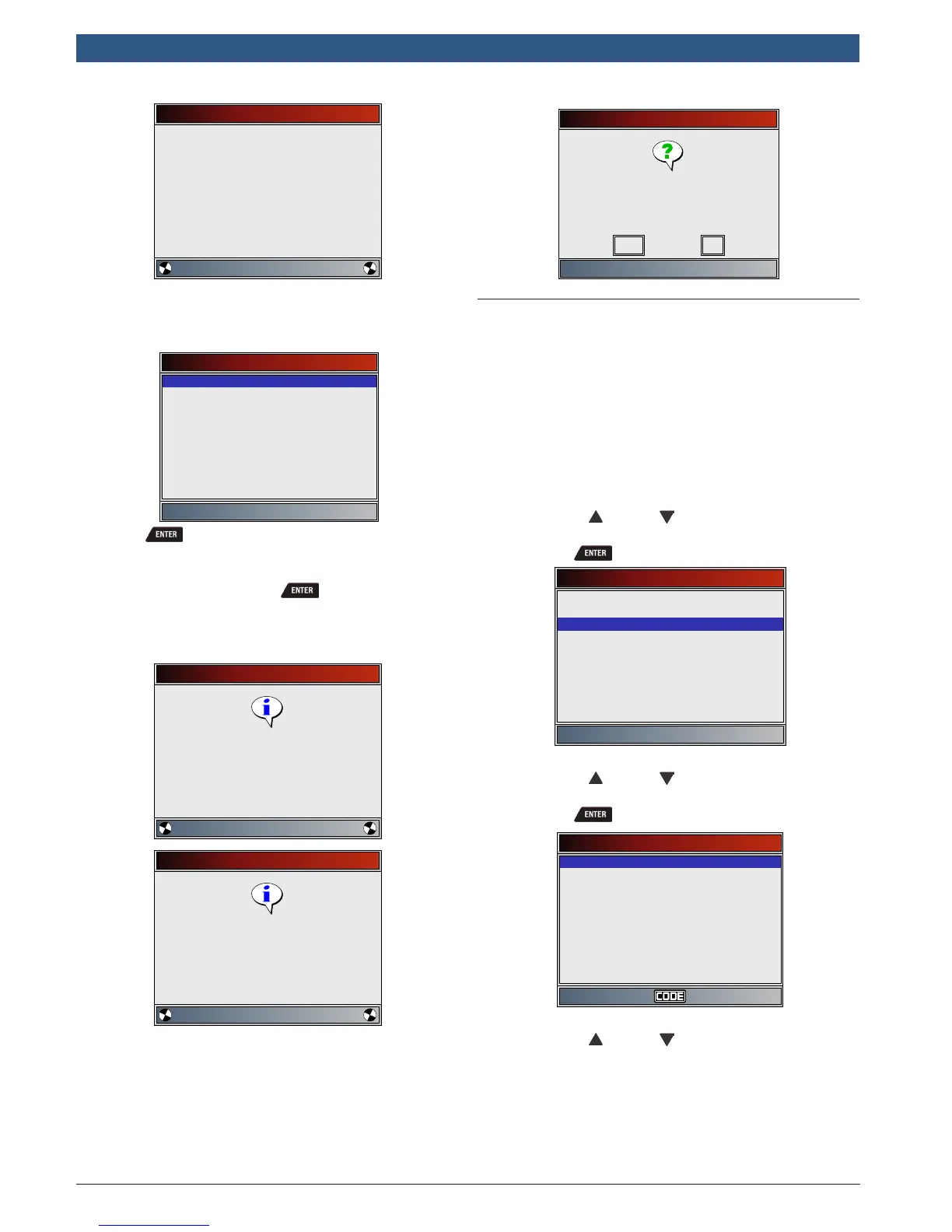

Validating PIDs
Please Wait
Validating PID List
PID 116/329
3. Refer to View Data to setup Custom List or View
Entire List and Pre-Trigger Setup to set the number
of frames to keep prior to triggering the recording.
Select Data to Record
Entire Data List
Custom Data List
Pre-Trigger Setup
4. Press to begin recording.
• Data continues to be saved until either:
– Record memory is full.
– Operator presses .
• Scan tool recording times vary. A recording
consists of frames of data before trigger and
several frames after trigger.
Recording
Press ENTER to trigger
recording
Collecting pretrigger data
Recording
Press ENTER to end recording
Collecting data for frame #4
5. After recording, scan tool displays a prompt to
Playback Data.
• Select NO to return to Datastream Menu.
• Select YES to display recorded data.
• Refer to “Recording” on page 17 for instruc-
tions on how to play back data.
Record Data
Playback data?
No
Yes
5.8 View Freeze Data
When an emission-related fault occurs, certain vehicle
conditions are recorded by the on-board computer. This
information is referred to as freeze frame data. View
Freeze Data is a snapshot of the operating conditions at
the time of an emission-related fault. View Freeze Data
can be overwritten by faults with a higher priority. If
codes were erased, View Freeze Data may not be stored
in vehicle memory depending on vehicle.
From Diagnostic Codes Menu:
1. Select View Freeze Data.
• Use the UP and DOWN keys until View
Freeze Data is highlighted.
• Press .
Diagnostic Codes
Read Codes
Erase Codes
View Freeze Data
Component Locator
Acronyms
Review Data
Print Data
Code Lookup
System Setup
2. Select frame, if more than one frame is present.
• Use the UP and DOWN keys until the
desired frame is highlighted.
• Press .
Select Data to View
P0102 (MOD $10)
Long PID Names
English/Metric
3. View PIDs on scan tool.
• Use the UP and DOWN keys.
• See Appendix A for PID definitions.
