OBD 1350 ProGrade OBDII Scan Tool
|
User guide | 31
|
en

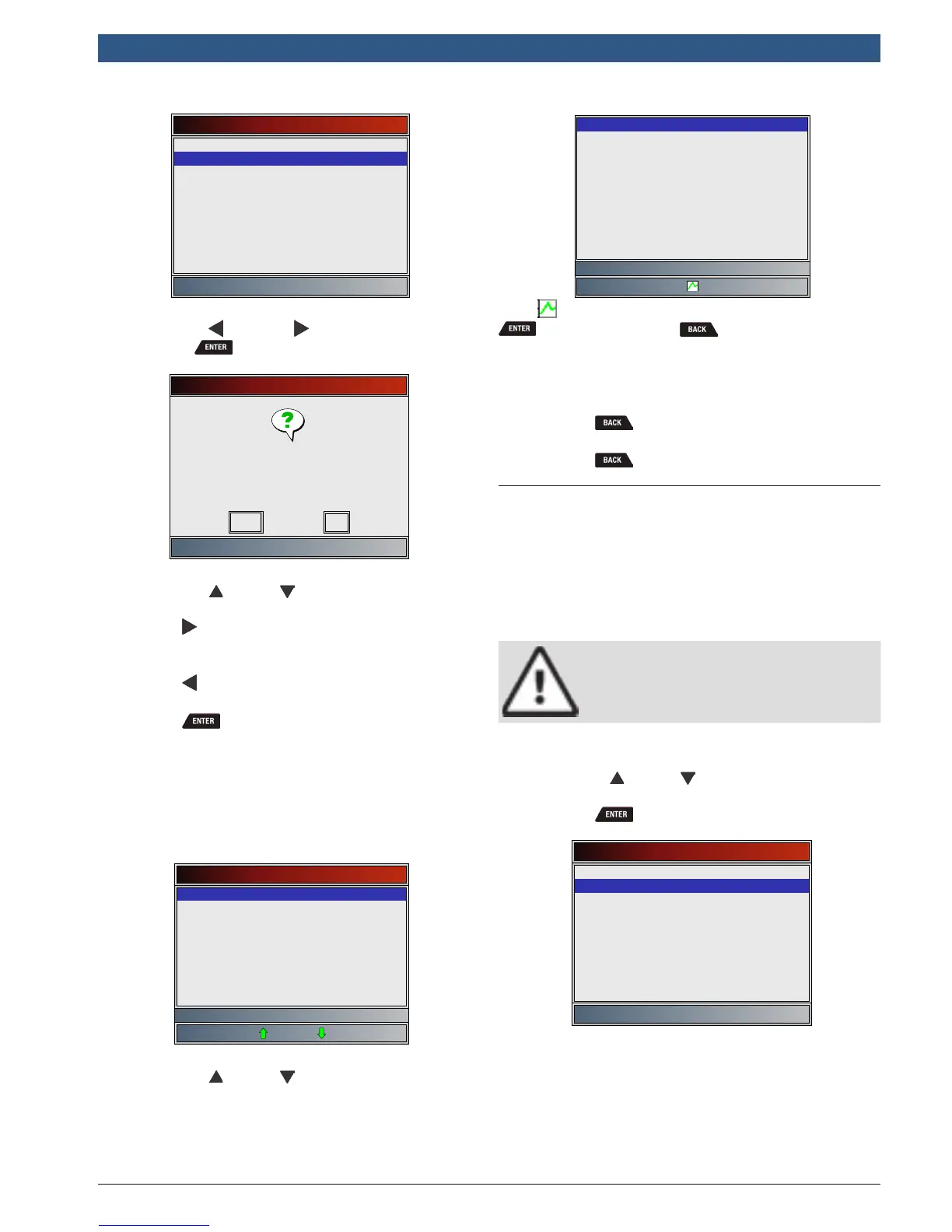

Select Data to View
Entire Data List
Custom Data List
English/Metric
2. Select View Instructions or Not.
• Use the LEFT and RIGHT keys.
• Press .
Custom Setup
Do you want to view
instructions for creating a
custom data list?
No
Yes
3. Select PIDs to View.
• Use the UP and DOWN keys to move up
and down list.
• The RIGHT arrow selects or deselects data
parameter. All selected data values are marked
with a √ symbol.
• The LEFT arrow deselects all marked data
parameters.
• The key starts recording data or display-
ing selected data parameters.
• If Long PID Names is turn ON, the expanded text
for the PID will scroll on the bottom line of
display. See “Long PID Names” in section 3.
• Selected PIDs are kept until you exit View Data
and return to the Datastream Menu.
Select Custom List
MIL STATUS
O2S11(V)
O2S12(V)
O2S21(V)
O2S22(V)
OBD2 STAT
PTO STATUS
ST FTRM11(%)
Malfunction Indicator Lamp Statu
4. View PIDs on scan tool.
• Use the UP and DOWN arrow key.
• See Appendix A for PID Definitions.
ABS TPS B(%)
MIL STATUS
0.0
Off
Throttle Position B
If the icon displays while a PID is selected press
to view graph. Press to Return to PID
Screen.
Refer to “View Entire List.” on page 4-19 for instructions
on how to select PIDs to graph and how to view graph.
5. Return to Select Data to View Menu.
• Press .
6. Return to Datastream Menu.
• Press .
5.7 Record Data
The Record Data function records PIDs while vehicle is
parked or being driven. The Record Data function is
mainly used for diagnosing intermittent driveability
problems that cannot be isolated by any other method.
The recording time varies. A recording consists of frames
of data before the trigger and several frames after the
trigger.
CAUTION
Two people must be in vehicle when driving.
One to drive and the other to operate the
scan tool.
From Datastream Menu:
1. Select Record Data.
• Use the UP and DOWN keys until Record
Data is highlighted.
• Press .
Datastream
View Data
Record Data
Component Locator
Acronyms
Review Data
Print Data
Code Lookup
System Setup
2. Follow all instructions on display.
• The scan tool can maintain 5 recordings per
vehicle. If there are already 5 recordings stored,
the scan tool will ask which recording to over-
write.
• Scan tool validates list of global PIDs from
vehicle.
