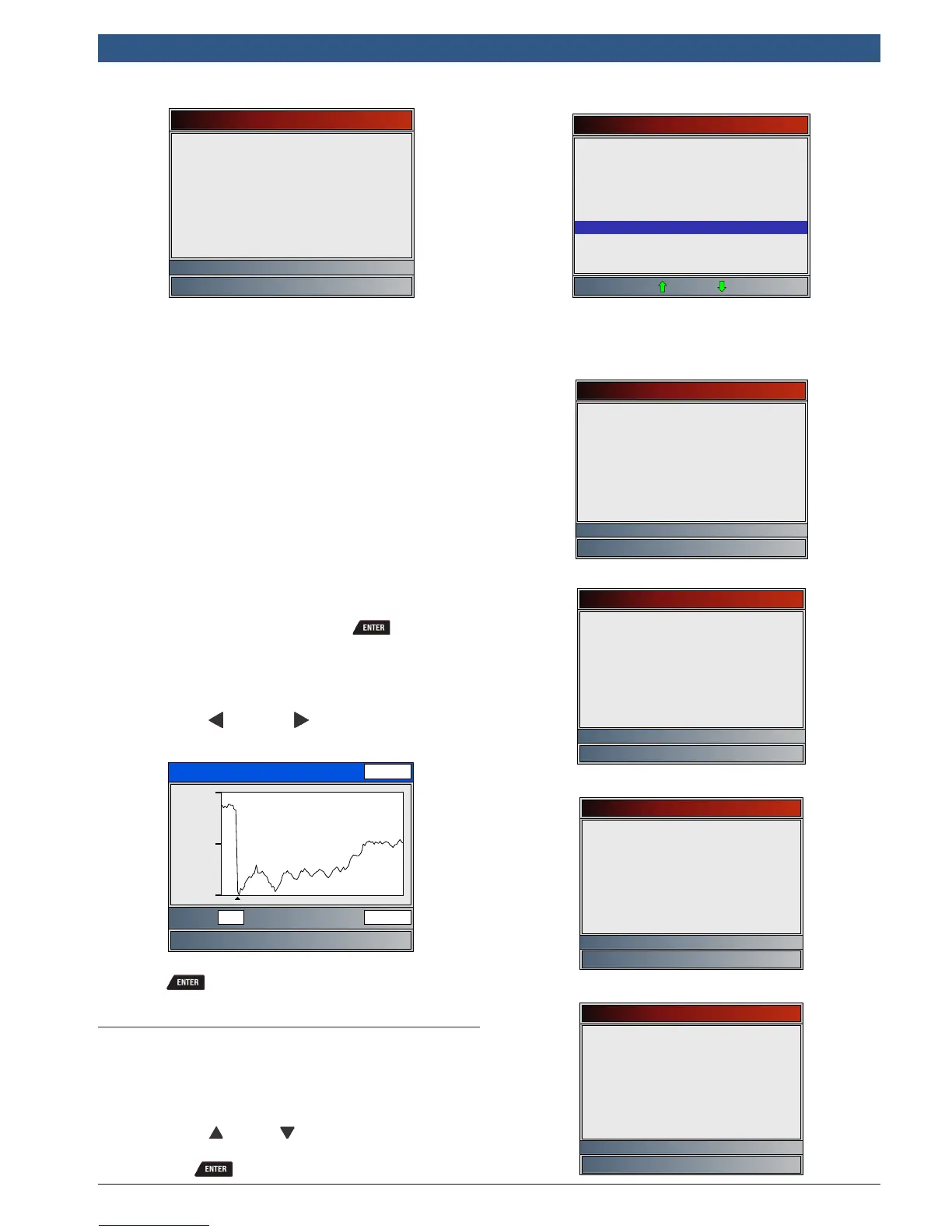

Bosch OBD 1350 - Modules Present

580001 | REV. A | 11.2016
OBD 1350 ProGrade OBDII Scan Tool
|
User guide | 41
|
en
Test Results
DLC KOEO Voltage
DLC Cranking Voltage
DLC KOER Voltage
12.2
10.4
14.7
ess ENTER to view the data plot.
On the first screen, the scan tool didn’t detect that the
engine had started, so there isn’t a KOER voltage read-
ing.
The second screen did detect that the engine had
started so there is a KOER reading.
The screen on the left shows that the KOEO voltage
before an engine start was attempted was 12.2V. Once
the starter began cranking the engine, a cranking voltage
of 10.4V was measured. After the engine started, a KOER
voltage reading of 14.7V was measured.
• If the KOEO voltage is very low, this could be an
indication of a bad battery, or one that needs to be
charged.
• If the cranking voltage is a lot lower than the KOEO
voltage, than this is an indication of a worn starter.
• If the KOER voltage is not higher than the KOEO
voltage, than this indicates a bad or weak alternator.
After reviewing the test results, Press to view the
data plot.
7. View the data plot.
• The triangle below the graph indicates the
position of the frame in the graph.
• Use the LEFT and RIGHT arrow keys to
scroll back and forth through graph.
DLC Pin 16 Voltage
14.7
10.4
Frame: Time:
0 0.00
10.6
8. Press to return to the Special Functions
Menu.
5.17 Modules Present
The scan tool identifies the module IDs and communica-
tion type for all Global OBD II modules in the vehicle.
From the Global OBDII Functions Menu:
1. Select Modules Present.
• Use the UP and DOWN keys until Modules
Present is highlighted.
• Press .
Global OBDII Functions
O2 Monitor Tests
Diagnostic Monitor Tests
On-Board Systems
Vehicle Information
Oil Light Reset
Charging System Monitor
Modules Present
Component Locator
Acronyms
The types of protocols (communication types) sup-
ported by the scan tool are:
• ISO 9141-2 protocol is shown as ISO.
Modules Present
ID Protocol
$40 ISO*
Press ENTER to continue
• SAE J1850 protocol is shown as VPWM or PWM.
Modules Present
ID Protocol
$10 VPWM*
Press ENTER to continue
OR
Modules Present
ID Protocol
$10 PWM*
Press ENTER to continue
• ISO 15765-4 protocol is shown as CAN.
Modules Present
ID Protocol
$01 CAN*7e9
$00 CAN*7e8
Press ENTER to continue
