| OBD 1350
ProGrade OBDII Scan Tool
580001 | REV. A | 11.2016

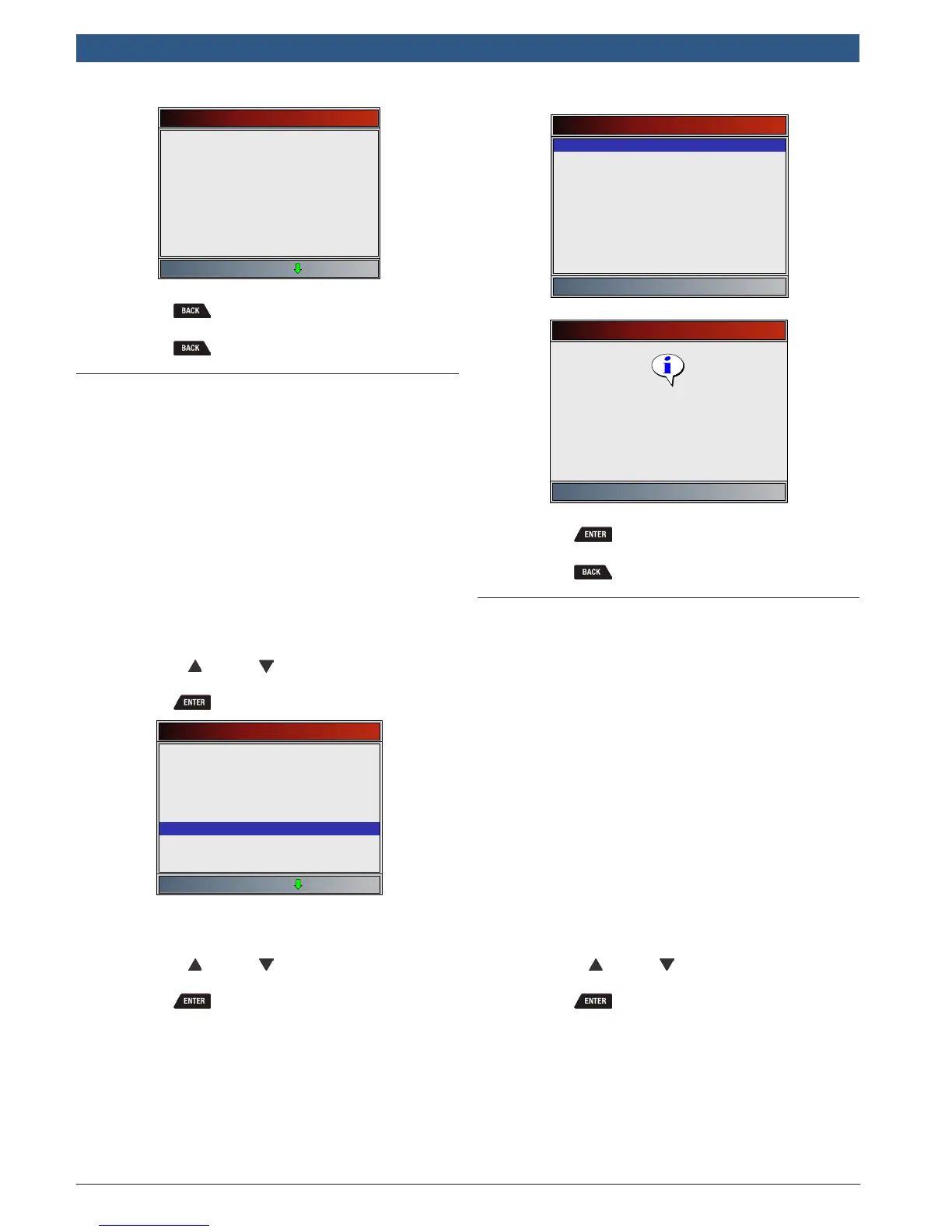

O2 Sensor B1S1
RICH-LN Thresh
MOD
MAX
MEAS
MIN
STS
$07
0.4497(V)
0.4497(V)
0.4497(V)
OK
3. Return to Select Test menu.
• Press .
4. Return to Global OBDII Functions Menu.
• Press .
5.12 On-Board Systems
The On-Board Systems test allows the scan tool to
control operation of vehicle components, tests or sys-
tems.
• Some manufacturers do not allow tools to control
vehicle systems. A vehicle not supporting an on-
board system is identified by a message that is
displayed when selected.
• Refer to the vehicle service manual for on-board
systems instructions.
• The manufacturer is responsible for determining the
criteria to automatically stop test. Refer to appropri-
ate vehicle service manual.
From Global OBDII Functions Menu:
1. Select On-Board Systems.
• Use the UP and DOWN keys until On-
Board Systems is highlighted.
• Press .
Global OBDII Functions
I/M Monitors
Drive Cycle Monitor
State OBD Check
MIL Status
O2 Monitor Tests
Diagnostic Monitor Tests
On-Board Systems
Vehicle Information
Charging System Monitor
• A list of on-board systems and components
available for testing are shown on the display.
2. Select test.
• Use the UP and DOWN keys until desired
test is highlighted.
• Press .
On-Board Systems
EVAP System Test
On-Board Systems
Press ENTER to continue
Command sent
3. Return to On-Board Systems menu.
• Press .
4. Return to Global OBDII Functions Menu.
• Press .
5.13 Vehicle Information
The Vehicle Information function allows the scan tool to
request the vehicle’s VIN number, calibration ID(s) which
identifies software version in vehicle control module(s),
calibration verification numbers (CVN(s)) and in-use
performance tracking.
• Vehicle Information function applies to model year
2000 and newer OBDII compliant vehicles.
• The scan tool cannot verify if data is correct for
scanned vehicles.
• CVNs are calculated values required by OBDII regulations.
• The CVN calculation may take several minutes.
• CVNs are reported to determine if emission-related
calibrations have been changed. Multiple CVNs may
be reported for a control module.
• In-use performance tracking, tracks performance of
key I/M Monitors.
From Global OBDII Functions Menu:
1. Select Vehicle Information.
• Use the UP and DOWN keys until Vehicle
Information is highlighted.
• Press .
