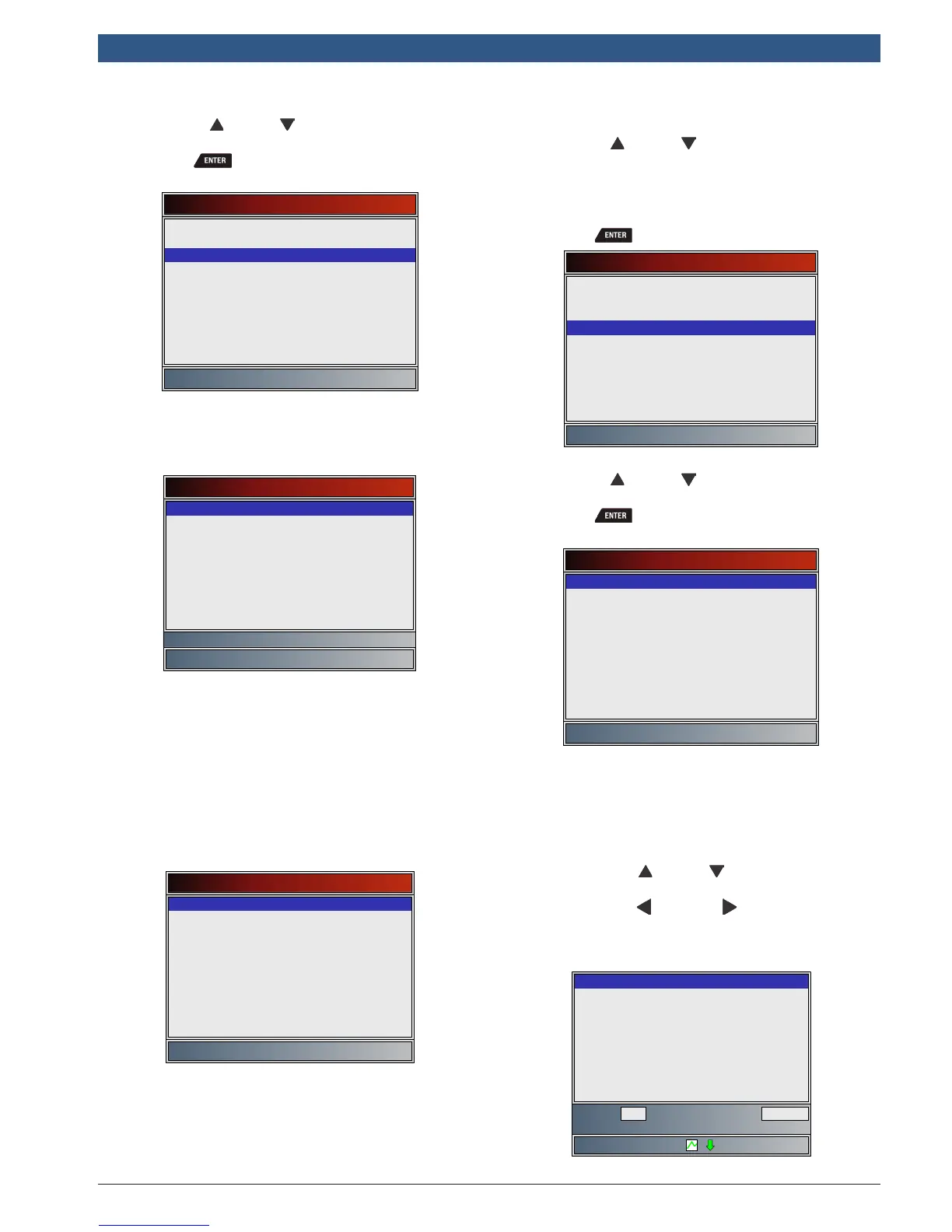

1. Select Review Data.
• Use the UP and DOWN keys until Review
Data is highlighted.
• Press .
Main Menu
Vehicle Diagnostics
Acronyms
Review Data
Print Data
Code Lookup
System Setup
If Review Data is selected from the Main Menu, a Select
Vehicle menu is shown. This menu contains up to 5
previous vehicles, so select which vehicle you wish to
review data.
Select Vehicle
Prev: 06 Accord
Prev: 04 Express 1500
2. Follow prompts and instructions provided by scan
tool and then select item whose data you wish to
review.
• The Review Data menu shows a checkmark next
to the item(s) that has data.
• If there is not a checkmark next to the item, then
this item can’t be selected until the appropriate
function is run from the Diagnostic Menu.
• See “Recording” on page 17 for detailed
instructions on this function.
Review Data
✓I/M Monitors
✓DTCs (Codes)
✓State OBD Check
✓Recording
View Freeze Data
✓O2 Monitor Tests
✓Diagnostic Monitor Tests
Vehicle Information
Modules Present
Recording
The Recording function is used to play back a recording.
This function is very similar to View Data. The only differ-
ence is that View Data is real-time viewing of PIDs, while
Recording is a viewing of previously recorded PIDs.
From the Review Data menu:
1. Select Recording.
• Use the UP and DOWN keys until Record-
ing is highlighted.
• The tool can keep up to 5 recordings per vehi-
cle. If the tool has more than one recording,
select a recording to playback.
• Press .
Review Data
✓I/M Monitors
✓DTCs (Codes)
State OBD Check
✓Recording
View Freeze Data
O2 Monitor Tests
Diagnostic Monitor Tests
Vehicle Information
Modules Present
2. Select Playback Recording.
• Use the UP and DOWN keys until Play-
back Recording is highlighted.
• Press .
Playback Options
Playback Recording
Long PID Names
English/Metric
• The recording has frame number and timestamp
(in seconds).
– Negative frames and timestamps indicate
data recorded before trigger event.
– Positive frames and timestamps indicate
data recorded after trigger event.
– Use the UP and DOWN keys to view
recorded PID data within each frame.
– Use the LEFT and RIGHT keys to scroll
back and forth through frames.
– See Appendix A for PID Definitions.
ABSLT TPS(%)
CALC LOAD(%)
COOLANT(°F)
ENG SPEED(RPM)
FUEL SYS 1
FUEL SYS 2
IAT(°F)
IGN ADV(°)
LT FTRM1(%)
0.0
3.5
95
692
OPEN
OPEN
75
4.5
3.1
Frame:
Throttle position
Time: 0.00
To Next Page
