RE 79094, Issue 10.2019, Bosch Rexroth AG
About this product | HYDROTRAC GFT >130 kNm 19/64
5.4 PRODUCT OVERVIEW
5.4.1 T model

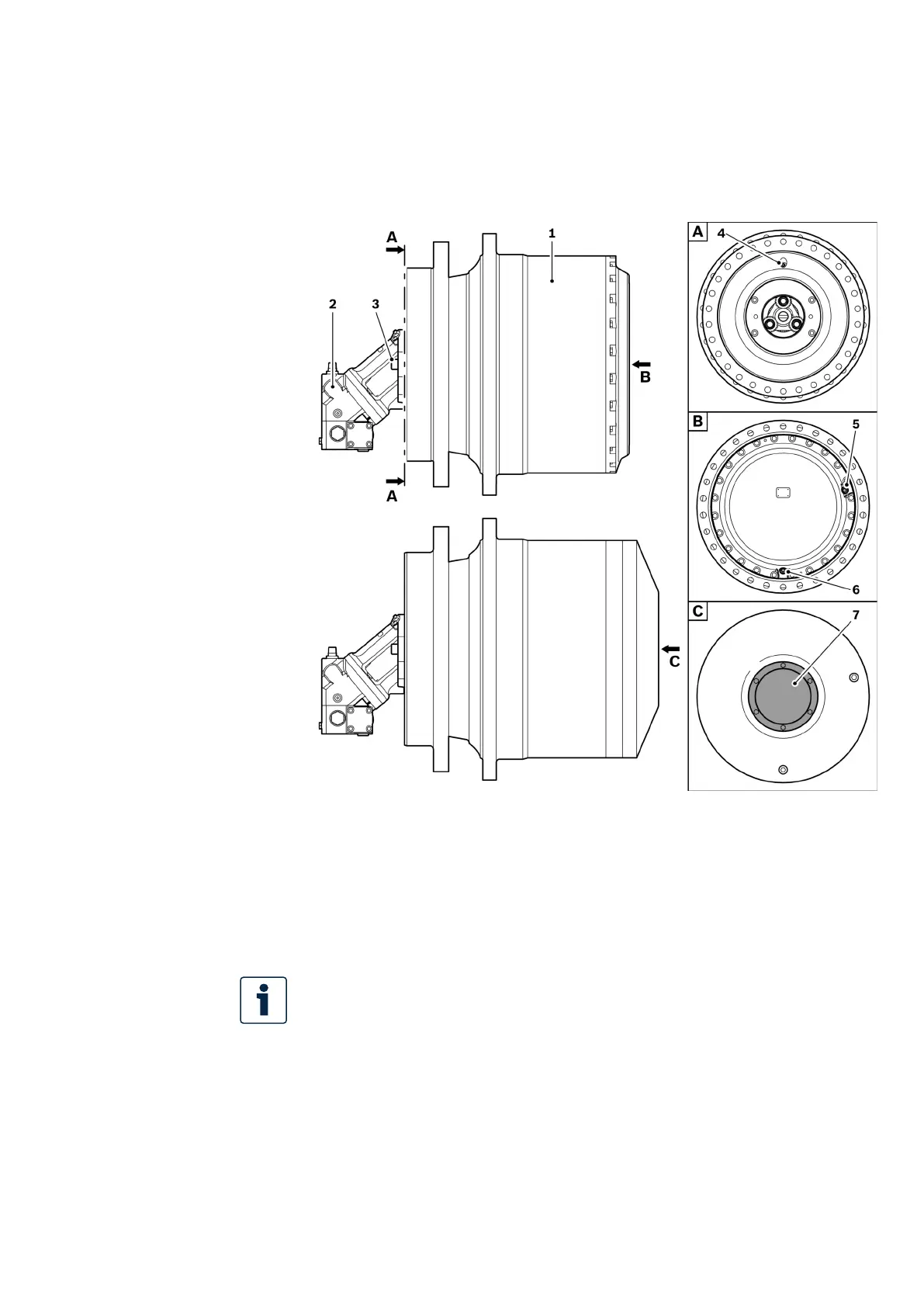

Fig. 1: Overview of the HYDROTRAC GFT, T model planetary gearbox (the shown models are
exemplary and may differ from the supplied model).
1 HYDROTRAC GFT planetary gearbox
2 Axial-piston motor
3 Motor fastening screws
4 External brake release connection
5 Bore 5 (in the position shown above
for checking the lubricating oil)
6 Bore 6 (in the position shown above
for discharging the lubricating oil)
7 Optional: Disconnect mechanism
You may set the bores
5and 6 in the cover of the planetary gearbox to different
positions by turning the ring gear. The positioning of the bores
5and 6 to
each other remains however xed. Fig. 1, view B shows the possible position
of the cover only in an exemplary manner. For the exact arrangement, refer
to the planetary gearbox dimensioned drawing in the appendix D “Technical
data / Drawings” of the material number-specic operating instructions. In
the chapters 8.1.3 “Filling the planetary gearbox with lubricating oil”, 10.2.2
“Checking the oil level of the planetary gearbox” and 10.4.2 “Changing the
lubricating oil”, the cover is shown in the required position.
CORRECTION COPY 1 |17.10.2019 | ONLY FOR INTERNAL USE
