7 Assembly
Prior to assembly, the following documents must be readily accessible:
• Operating instructions for the machine or vehicle (supplied by the manufacturer)
• Dimensioned drawing of the planetary gearbox
• Technical data of the planetary gearbox
• Material number-specic operating instructions of the planetary gearbox
• Hydraulic diagram for the entire machine or vehicle (supplied by the manufacturer)
• Assembly drawing for the machine or vehicle (supplied by the manufacturer)
7.1 UNPACKING
Depending on manufacturer's plant and transport paths, the planetary gearbox may
be packed differently.
7.1.1 Delivery on pallet
If the planetary gearbox is delivered on a pallet, the gearbox is secured with
clamping bands. To protect from moisture, the delivery may be covered in shrink
wrap.
To unpack the planetary gearbox:
1. Remove the shrink wrap and the oiled paper.
2. Remove the clamping bands.
3. Check the scope of supply for transport damage and completeness, see chapter
4 “Scope of supply”.
4. Compare material number and designation (type code) with those specied in
the order conrmation.
If the material number of the planetary gearbox does not match the one in the
order conrmation, contact the Rexroth Service for clarication. For the address,
see appendix A “Address directory” of the material number-specic operating
instructions.
5. Lift the planetary gearbox from the pallet with suitable lifting equipment
and suitable attachment means (see chapter 6.1 “Transporting the
HYDROTRACGFT”).
6. For placing the planetary gearbox, make sure that the surface is stable.

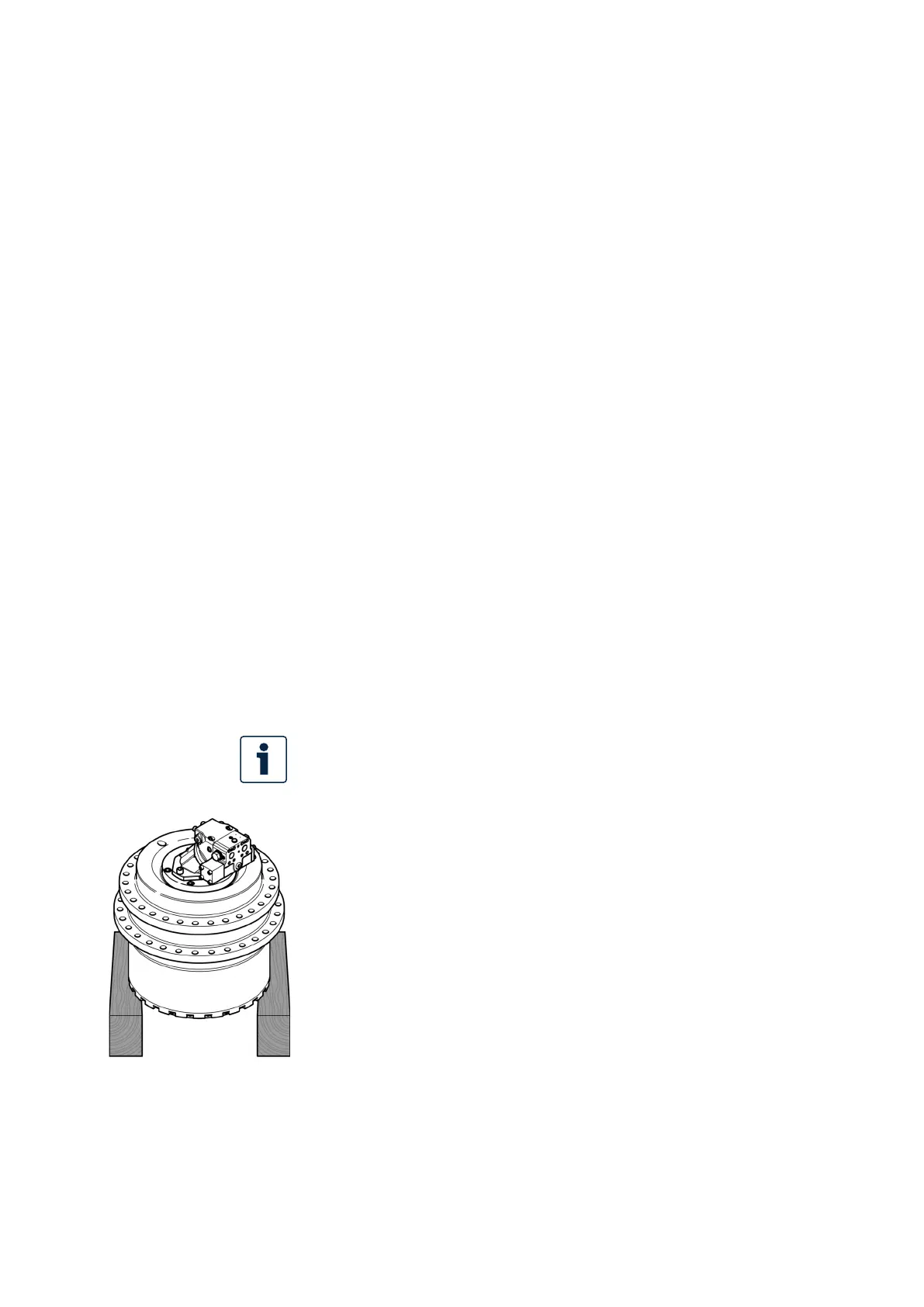

7. Place the planetary gearbox with the cover plate down on two suitable squared
timbers. Secure the planetary gearbox against tipping over.
8. Dispose of the packaging in accordance with regulations in your local country.
Procedure
