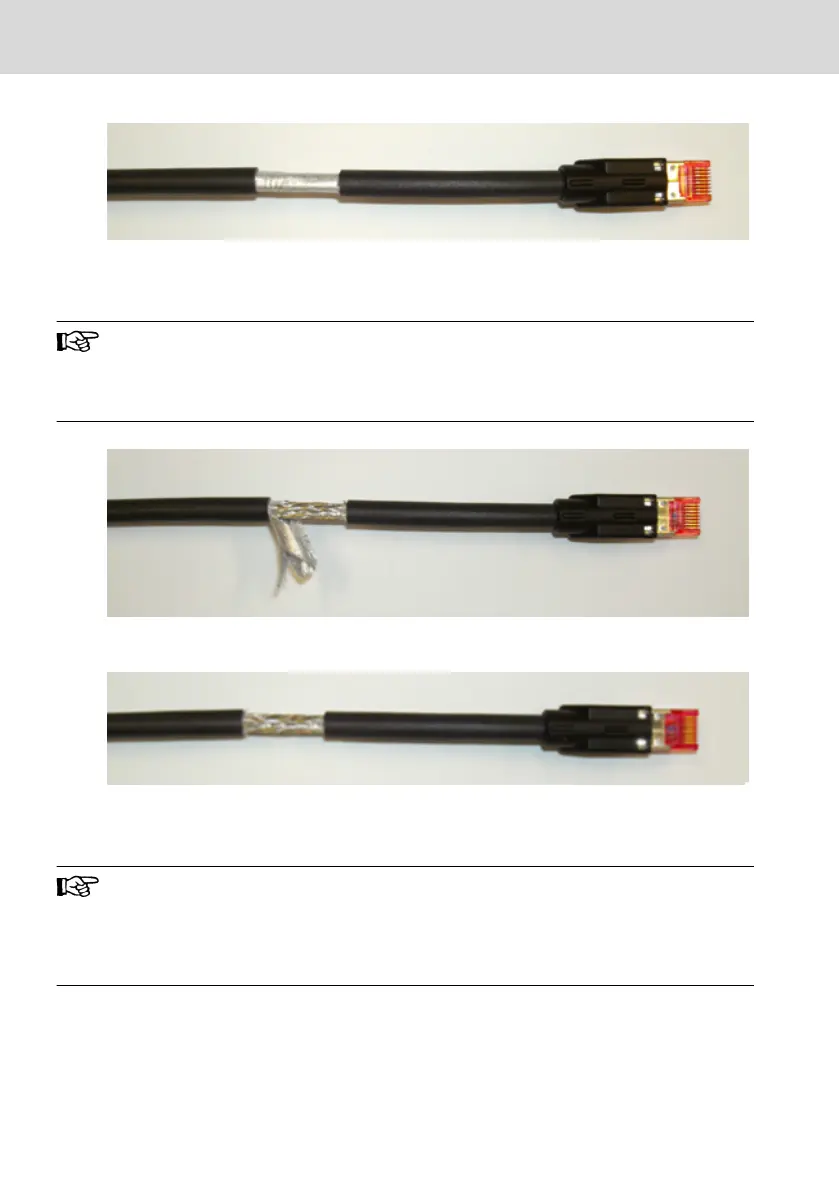

Fig. 10-16: CDI cable with partially removed jacket
2. Remove the foil shield.
CDI cables are equipped with an additional foil shield. The foil shield
must not be used for the connection. The foil shield is usually
plastic-coated on one side for an improved stability. The plastic
coating is insulating.
Fig. 10-17: Foil shield of the CDI cable
Fig. 10-18: Foil shield removed
3. Fasten cable with EMC shielding clamp.
Ensure that the CDI cable is not crimped when connecting the
shielding to the equipotential bonding. Use an EMC shielding clamp
suitable for the cable diameter. Crimping of the cable impairs the
electrical properties of the CDI cable. Avoid mechanical stress
(tensile, compressive) on the plug.
