59
DISASSEMBLY PROCEDURES

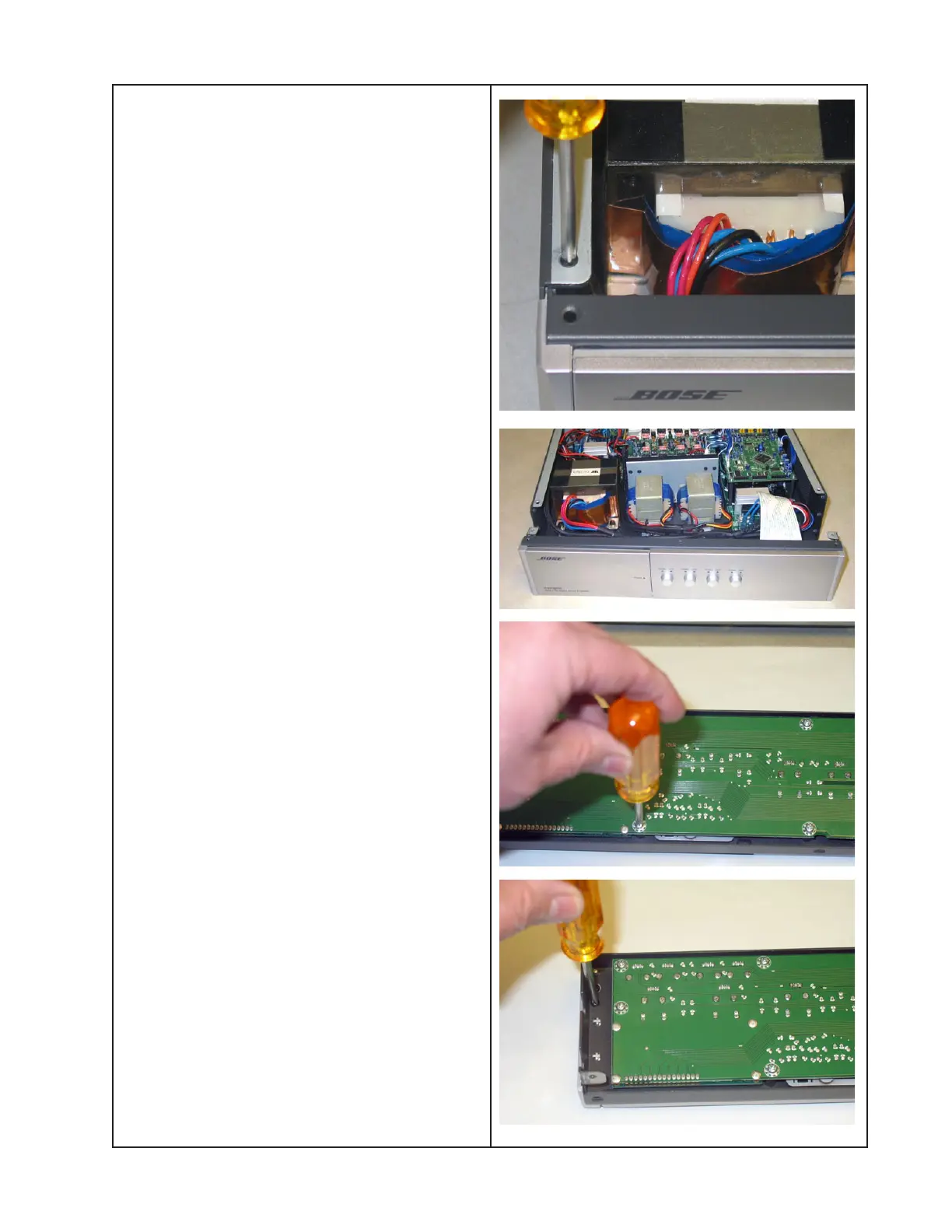

11.4 Turn the chassis back over onto its
bottom. Remove the two screws located on
either side of the chassis side rails near the
front panel.
11.5 Slide off the front panel assembly.
11.6 On the front panel, pull off the four
knobs for inputs 1 - 4.
11.7 Remove the ten screws that secure the
CTRL PCB to the front panel. Lift off the
PCB.
12. Door and Front Panel Removal
12.1 Perform procedure 11.
12.2 Remove the two screws that secure the
left front panel end cap to the front panel
chassis section.
