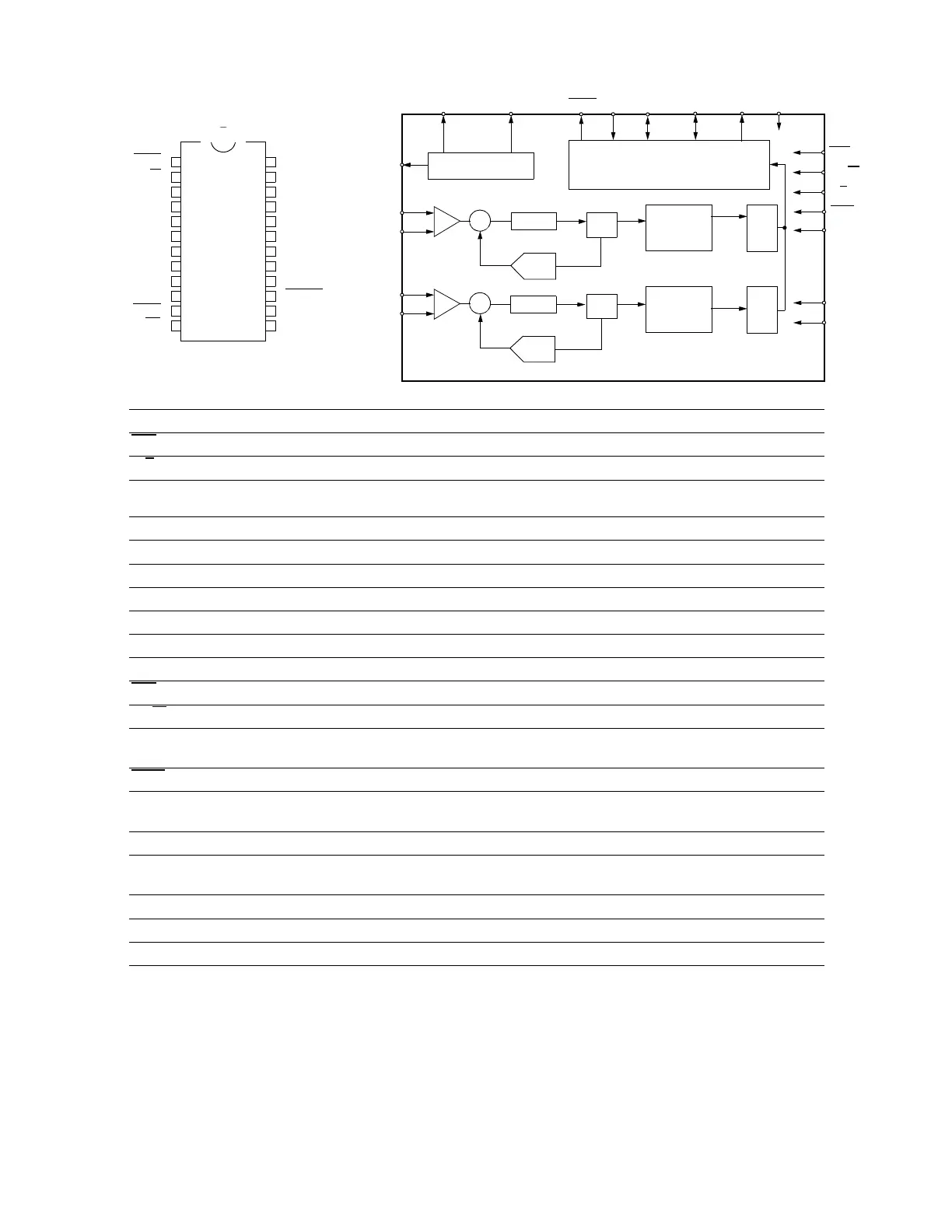

Integrated Circuit Diagrams
CS5361 A/D Converter
Voltage Reference
Serial Output Interface
Digital
Filter
High
Pass
Filter
High
Pass
Filter
Decimation
Digital
Filter
Decimation
DAC
-
+
S/H
DAC
-
+
S/H
AINR+
SCLK
SDOUT MCLK
RST
VQ LRCK
AINR-
AINL+
AINL-
FILT+
I
2
S/LJ
M/S
HPF
MODE0
MODE1
REFGND
V
L
MDIV
LP Filter
LP Filter
∆Σ
∆Σ
OVFL
RST 1 24 FILT+
M/S 2 23 REFGND
LRCK 3 22 VQ
SCLK 4 21 AINR+
MCLK 5 20 AINR-
VD 6 19 VA
GND 7 18 GND
VL 8 17 AINL-
SDOUT 9 16 AINL+
MDIV 10 15 OVFL
HPF 11 14 M1
I
2
S/LJ 12 13 M0
Pin Name # Pin Description
RST
1
Reset (Input) - The device enters a low power mode when low.
M/S
2
Master/Slave Mode (Input) - Selects operation as either clock master or slave.
LRCK
3
Left Right Clock (Input/Output) - Determines which channel, Left or Right, is currently active on the
serial audio data line.
SCLK
4
Serial Clock (Input/Output) - Serial clock for the serial audio interface.
MCLK
5
Master Clock (Input) - Clock source for the delta-sigma modulator and digital filters.
VD
6 Digital Power (Input) - Positive power supply for the digital section.
GND
7,18
Ground (Input) - Ground reference. Must be connected to analog ground.
VL
8
Logic Power (Input) - Positive power for the digital input/output.
SDOUT
9
Serial Audio Data Output (Output) - Output for two’s complement serial audio data.
MDIV
10
MCLK Divider (Input) - Enables a master clock divide by two function.
HPF
11
High Pass Filter Enable (Input) - Enables the Digital High-Pass Filter.
I
2
S/LJ
12
Serial Audio Interface Format Select (Input) -Selects either the left-justified or I
2
S format for the SAI.
M0
M1
13,
14
Mode Selection (Input) - Determines the operational mode of the device.
OVFL
15
Overflow (Output, open drain) - Detects an overflow condition on both left and right channels.
AINL+
AINL-
16,
17
Differential Left Channel Analog Input (Input) - Signals are presented differentially to the delta-sigma
modulators via the AINL+/- pins.
VA
19 Analog Power (Input) - Positive power supply for the analog section.
AINR-
AINR+
20,
21
Differential Right Channel Analog Input (Input) -Signals are presented differentially to the delta-sigma
modulators via the AINR+/- pins.
VQ
22
Quiescent Voltage (Output) - Filter connection for the internal quiescent reference voltage.
REF_GND
23
Reference Ground (Input) - Ground reference for the internal sampling circuits.
FILT+
24
Positive Voltage Reference (Output) - Positive reference voltage for the internal sampling circuits.
