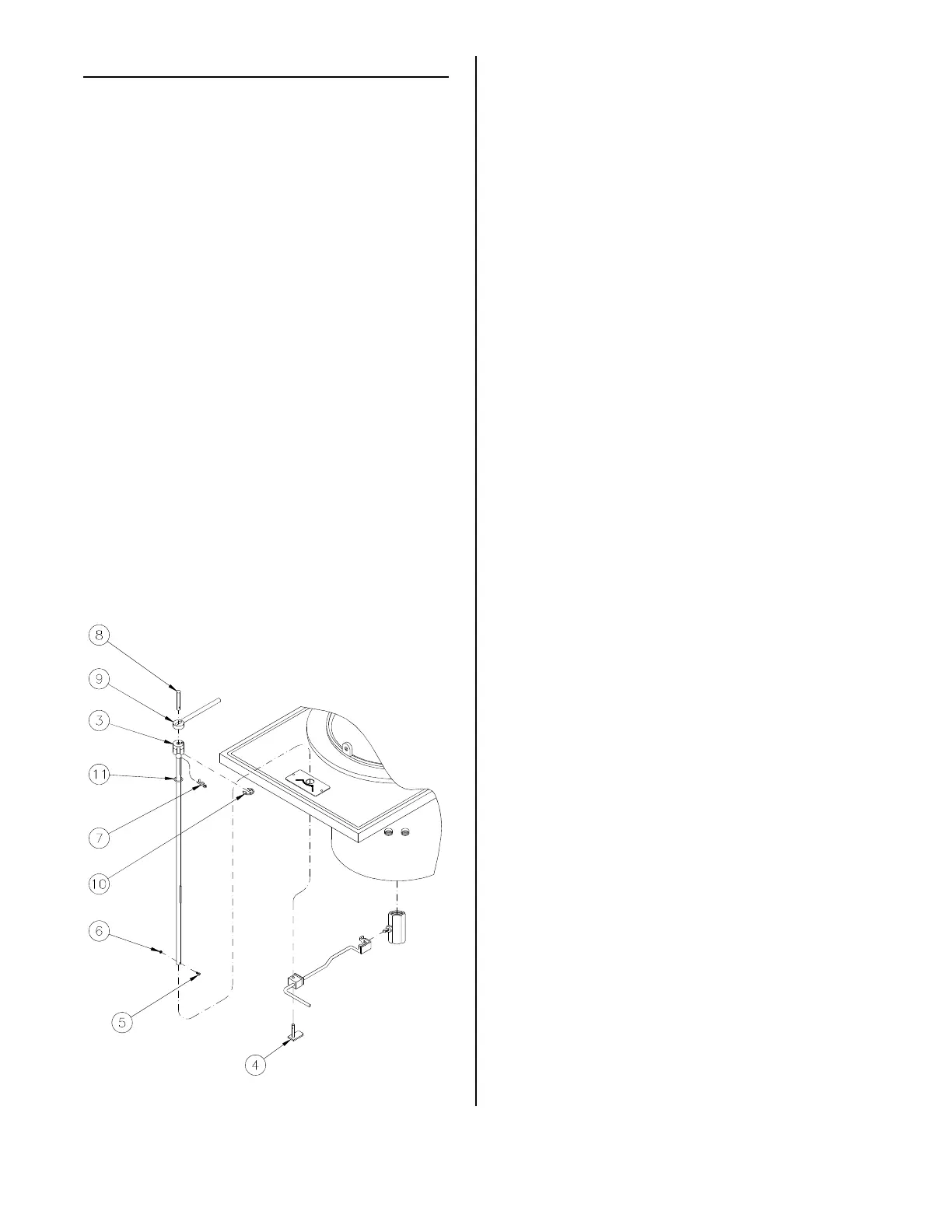

CONTROL ROD
The Control Rod controls the function of the
exhaust valve (open/close) and the timer
switch (timer start/beeper off).
Control Rod Removal:
1. Separate Control Rod (3) from Drain
Valve Interlock (4) by removing screw
(5) and nut (6).
2. Remove Bridge Pin (7) from Control
Rod just below countertop.
3. Pull Button Pin (8) from top of Control
Rod and remove Cover Interlock (9).
4. Remove E-Clip (10) which hold Control
Rod to countertop.
5. Pull Control Rod straight up from
countertop. Be sure to retain o-ring
(11) to use at reassembly.
