5-5

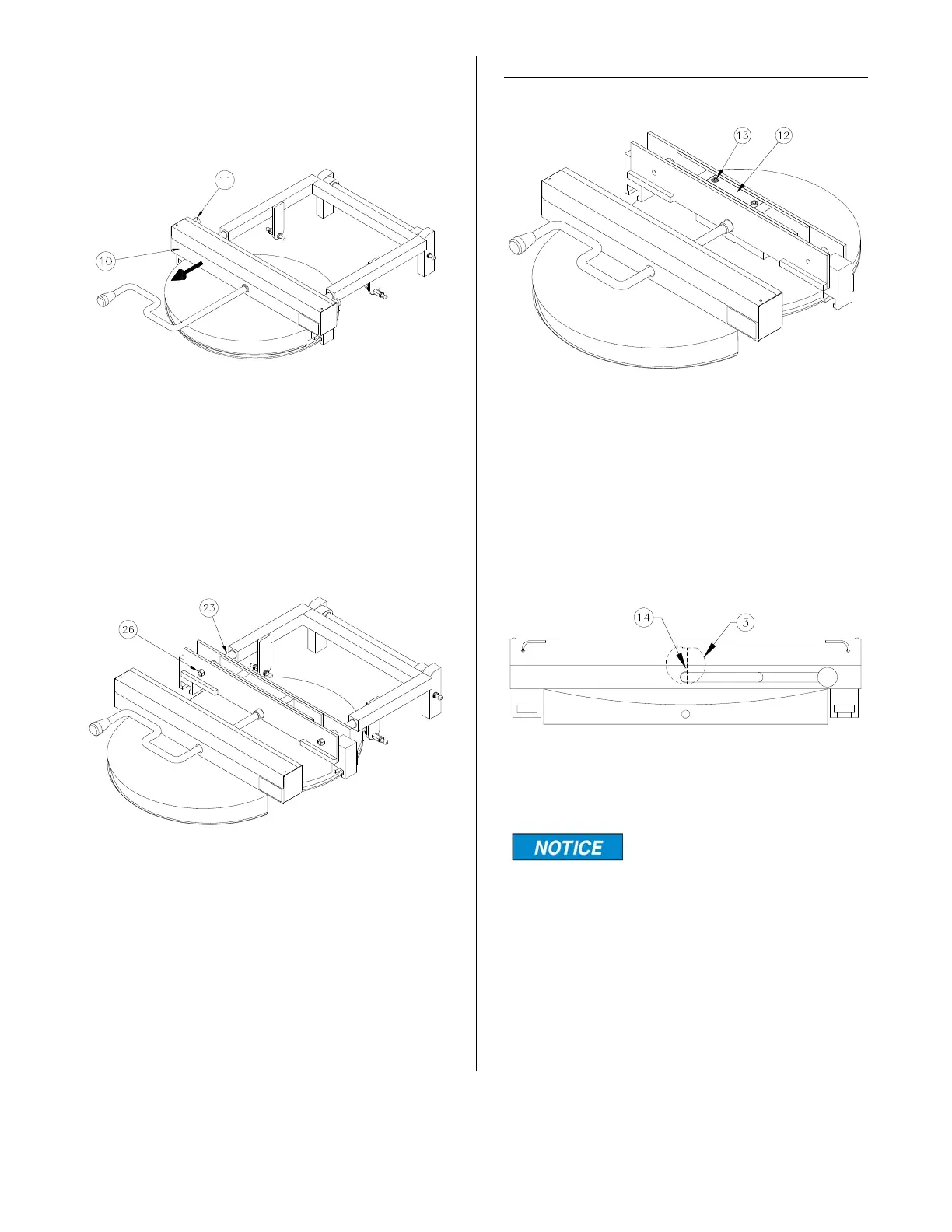

10. Loosen two large head knurled screws
(9) attaching splash shield (10) to back
panel assembly (11).
.
11. Slide splash shield (10) forward
towards the end of the cover handle
(2).
12. Remove nuts (26) attaching yoke and
cover assembly to lift assembly.
13. Pull cover assembly toward front of
unit until it is free of the slide rods (23).
14. Reassemble in reverse order.
COVER AND YOKE DISASSEMBLY
1. Remove two cover bolts (12).
2. Lift yoke bar up. The cover (4) and
spacer block (5) will remain.
3. Remove lifter box (13).
4. Rotate cover handle to the OPEN
position.
5. Locate grooved pin (14) hole in the flat
of the cam (3).
Be sure to note how the
handle and cam are
removed. Use a stiff wire to tie the han-
dle and cam together after removal.
6. Use a 1/8 inch punch to remove
grooved pin. Remove handle and cam.
7. Clean lifter box, handle, cam and yoke
bar where lifter box slides up and
down.
broaster.com Manual #17280 1/15 Rev 6/15
