7-7

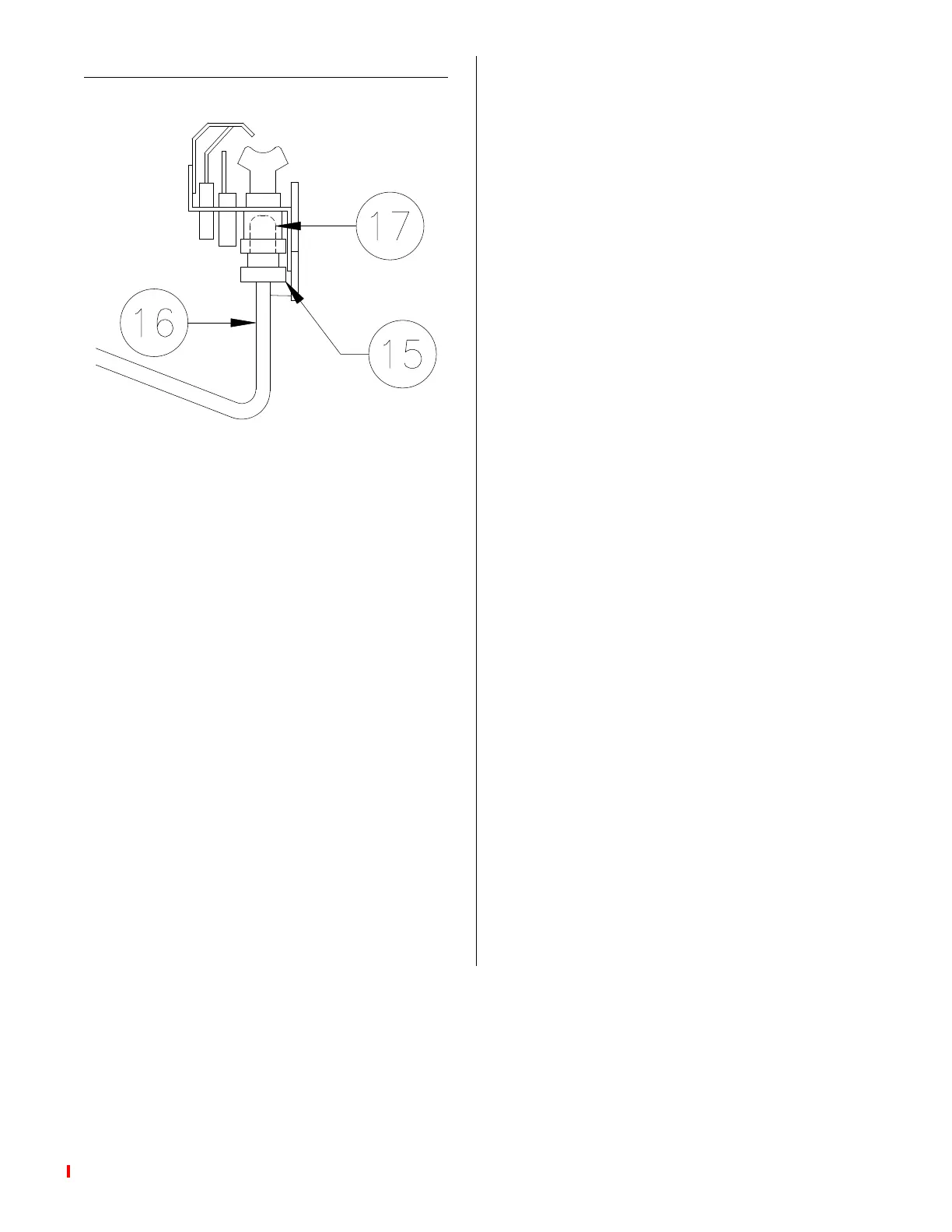

PILOT BURNER ORIFICE
Orifice (17) is located above brass fitting
(15).
Replacement:
1. Remove condensate pan.
2. Turn cook/filter switch, gas valve
switch and manual gas shut off valve
OFF.
3. Loosen brass fitting (15) from pilot
burner.
4. Pull 1/4” gas supply line (16) and brass
fitting free of burner.
5. Remove orifice (17).
6. Install new orifice in reverse order.
Check all gas connections with a soap
and water solution. Bubbles indicate a
gas leak.
broaster.com Manuals #17280 1/15 Rev 12/15
