MAIN BURNER ORIFICE
Replacement:
1. Turn cook/filter switch, gas valve
switch and manual gas shut off valve
OFF.
2. Turn main gas supply OFF.
3. Disconnect main electric supply.
4. Remove condensate pan.
5. Facing the front of unit, remove left
and side panel if possible.

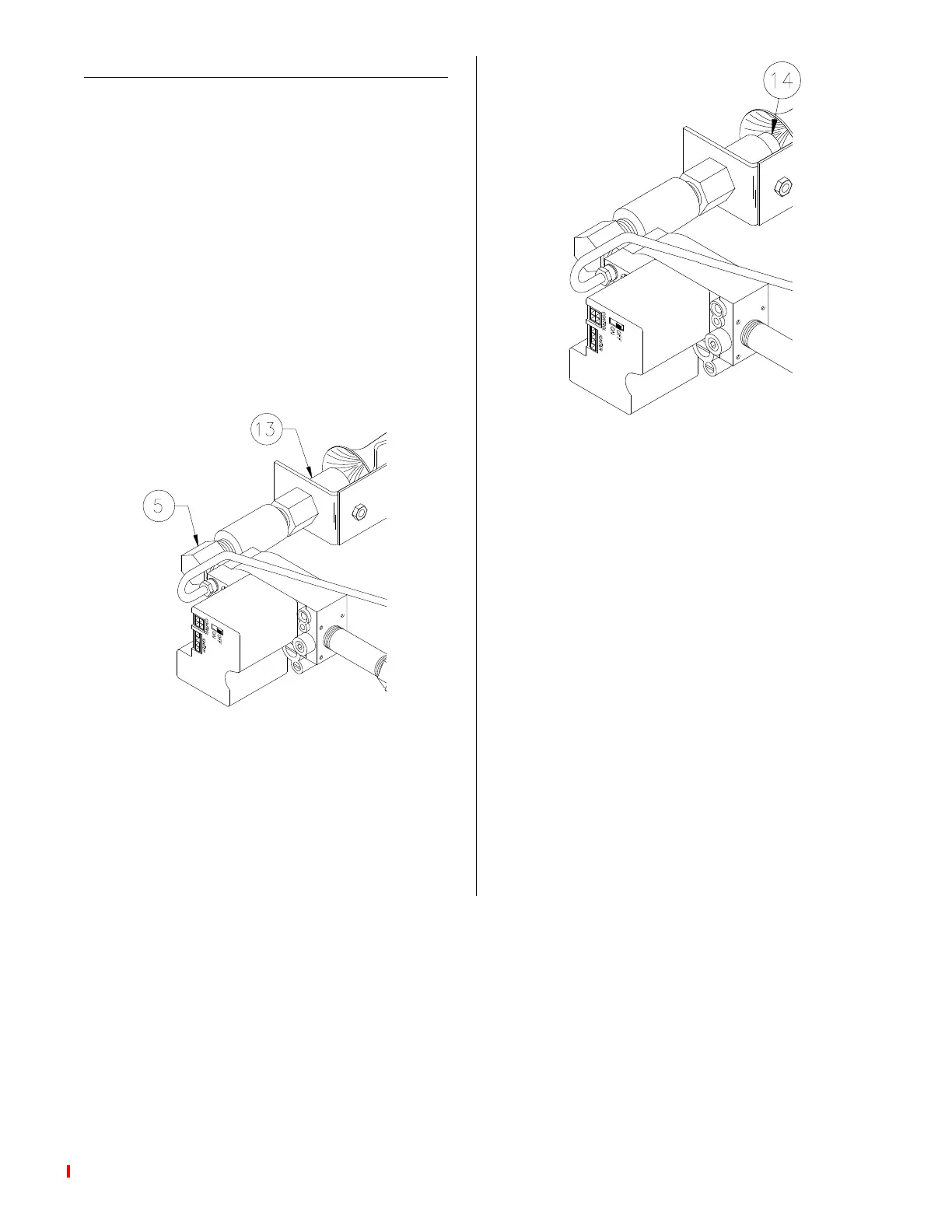

6. Loosen union elbow (5) and remove
locknut (13).
7. Remove orifice holder and union
elbow from mixer.
8. Remove main burner orifice (14).
9. Assemble in reverse order. Check all
connections and pipes with a soap
and water solution. Bubbles indicate a
gas leak.
