LIFT REMOVAL
To remove complete lift assembly:
1. Complete COVER AND YOKE
REMOVAL.

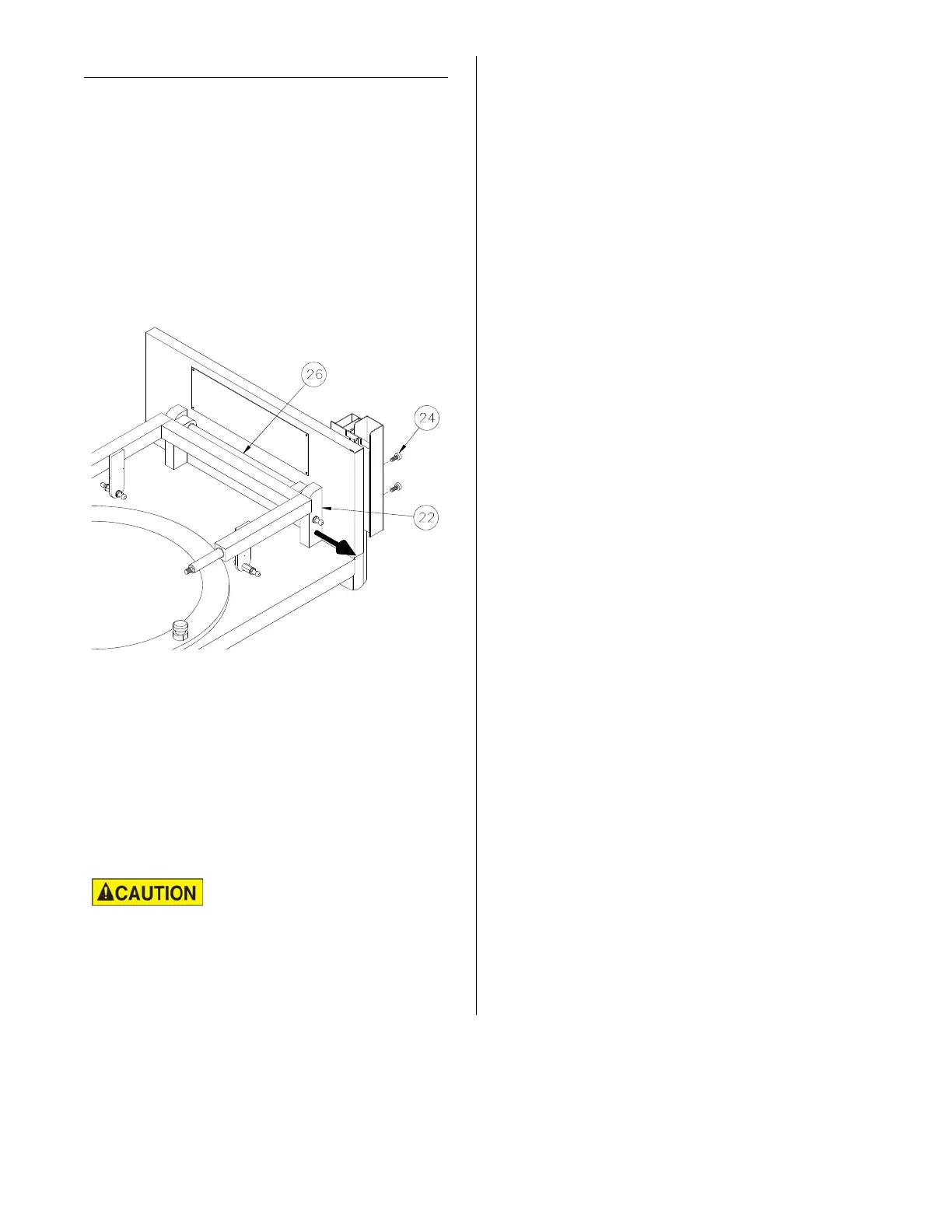

2. Remove two screws (24) attaching
either one of the cover mounts (22) to
the frame.
3. Slide the cover mount block (22)
toward the outside of the unit.
4. Slide the lift assembly toward the out-
side of the unit thereby disengaging
the lift hinge bar (26) from the opposite
cover mount block.
DO NOT allow the lift
hinge bar to be damaged.
It may not allow the lift assembly to be
reattached to the unit.
5. Reassemble in reverse order.
