MOTOR

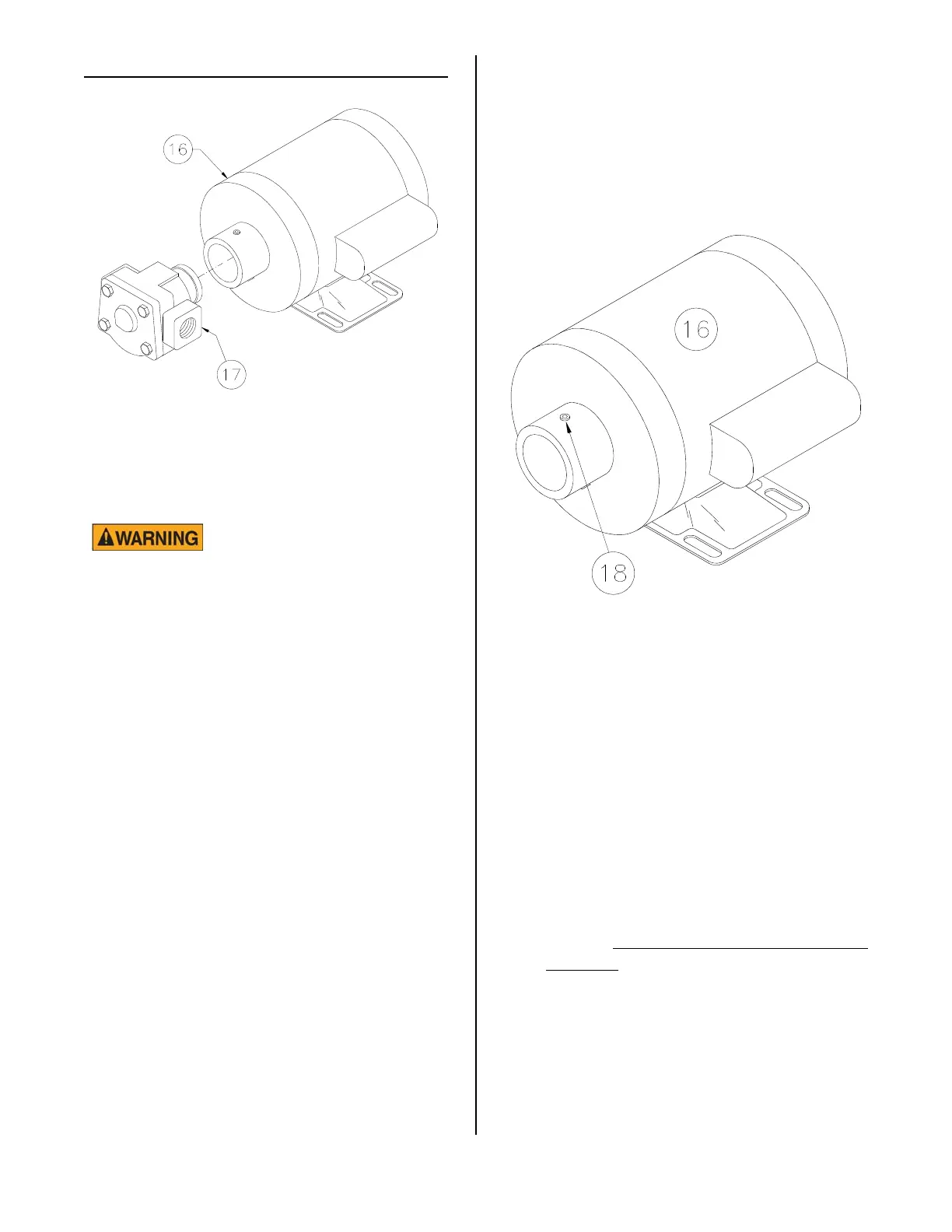

Motor (16) turns pump (17) which returns
cooking oil from filter pan to the cooking
well.
Turn cook/filter switch
OFF before resetting man-
ual reset thermal overload.
Motor has a manual reset thermal overload.
If overload trips, push red reset button on
back after motor has cooled.
Replacement:
1. Disconnect main electric power sup-
ply.
2. Disconnect conduit wires and conduit
from the motor.
3. Loosen three set screws (18) in neck of
motor (16) which hold pump in place.
4. Remove motor mounting bolts and
remove motor.
5. Install in reverse order.
Installation Hints:
1. Be sure pump is fully installed into the
motor neck before tightening set
screws.
2. Tighten three set screws in neck a little
at a time, in sequence, around neck
until tight. This will prevent any unnec-
essary binding on shafts of the pump
and motor.
Continued next page
