8 - DRAIN VALVE AND FILTER SYSTEM
8-1
DRAIN VALVE
Used to drain oil from cooking well into filter
pan or container made for handling hot oil.
Never drain oil unless the
power switch is OFF or
the display is on the FILTER tab and the
pressure regulating valve is OPEN. Hot
oil could spray out under pressure caus-
ing serious burns.
Replacement:
1. Disconnect main electric supply.
2. Remove filter pan from under the unit.
Drain cooking oil from cooking well
into a container made for handling hot
oil.

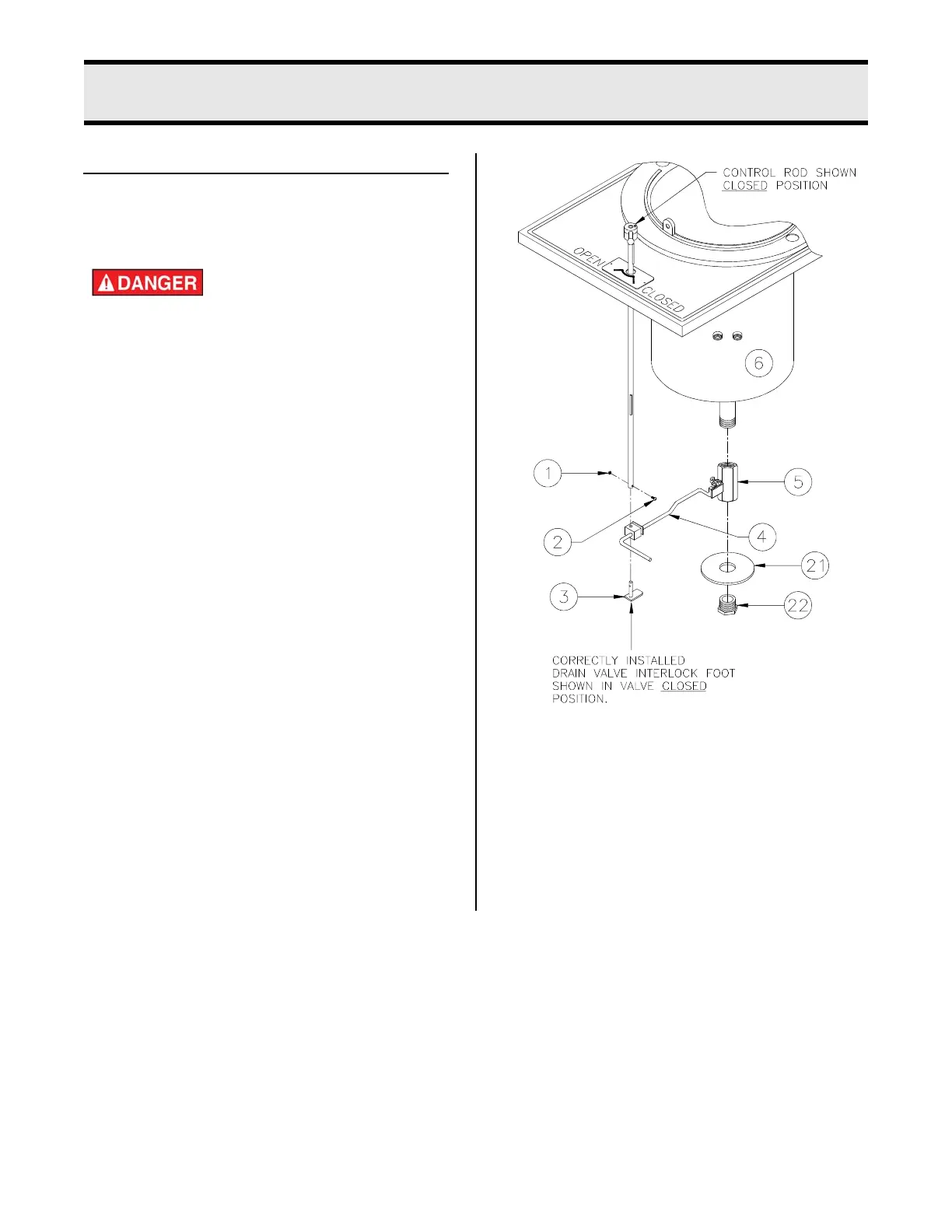

3. Remove splash disc (21) and bushing
(22). (2400GH only)
4. Remove nut (1), screw (2) and interlock
(3).
5. Remove nut mounting handle (4) to the
drain valve (5).
6. Unscrew drain valve from the cooking
well (6).
7. Assemble in reverse order using
#15820 Primer & #15359 Sealant on
cooking well threads.
