8-3
CHECK VALVE
Prevents cooking oil from draining into the
filter pan from cooking well.
Replacement:
1. Disconnect main electric power sup-
ply.
2. Drain cooking oil from the cooking well
and into a container made for handling
hot oil then close the drain valve.
3. Remove left hand side panel.

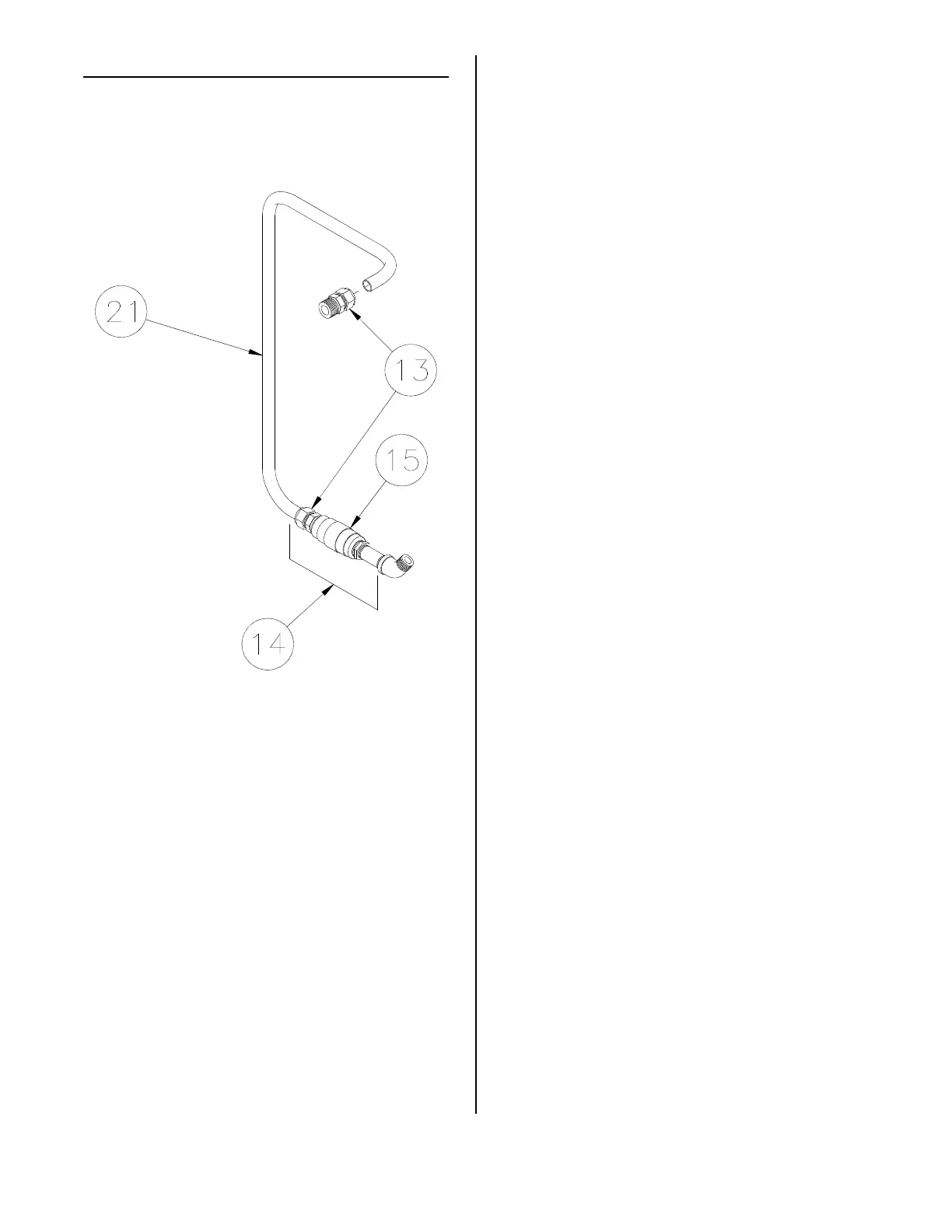

4. Loosen fittings (13), remove return
tube (21), remove pipe assembly (14)
from pump.
5. Remove any fittings from the valve
(15).
6. Install in reverse order using #15820
Primer & #15359 Sealant on pipe
threads.
Installation hint:
1. When installing a fitting or pipe nipple
into the valve, be sure to place wrench
on the same side of valve into which
fitting or nipple is being installed. DO
NOT tighten across the valve! Distor-
tion of valve seat could occur.
2. When installing compression fittings
on tubing, tighten nut finger tight then
turn 1-1/4 turns more.
