COVER AND YOKE REMOVAL
To remove complete cover and yoke
assembly:
1. Keep the cover in its CLOSED posi-
tion.

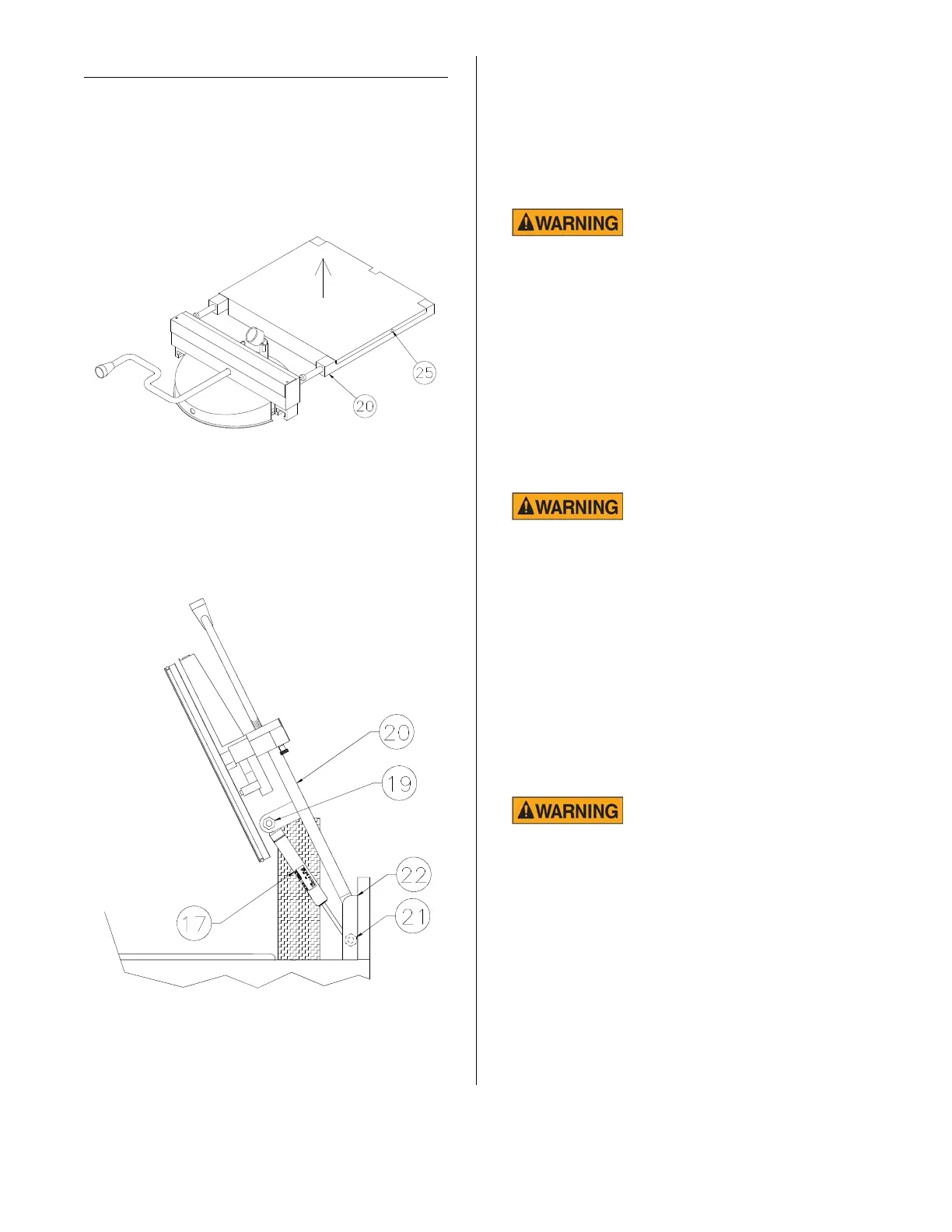

2. Remove two thumbscrews (25) attach-
ing the lift assembly cover and remove
from assembly (20). Remove cover
drip pan.
3. Raise the cover to its full open position
and place a solid support under the lift
to keep it in raised position.
4. Place a plastic or wooden board
across well opening to support cover
and yoke assembly.
5. Remove gas spring keepers from both
ends of the three gas springs.
Cover Assembly is very
heavy. DO NOT allow
cover assembly to fall. Serious injury or
damage to the unit may result.
6. Push up on cover until the gas springs
are at their full extension. While hold-
ing the cover up, pop them off the ball-
studs at the large end of both springs.
7. Lower cover to the support block
holding it in the up position.
When performing the next
step be extremely careful
so that the support does not become
dislodged. Cover is very heavy. If it falls,
serious injury or damage to unit may
result.
8. Pop the other end of the gas springs
off of the ballstuds on the mounting
blocks.
9. Carefully lower cover assembly to the
support board over the well.
Cover Assembly is very
heavy. DO NOT allow
cover assembly to fall. Serious injury or
damage to the unit may result.
