SLIDE ROD AND BEARING
REPLACEMENT
1. Remove plastic caps (27).
2. Remove the slide rod (23) from the lift
assembly (20) by sliding in the direc-
tion of the arrow.
DO NOT allow the sliding
rod bar to be damaged. It
may not be able to be reinserted into the
lift assembly.

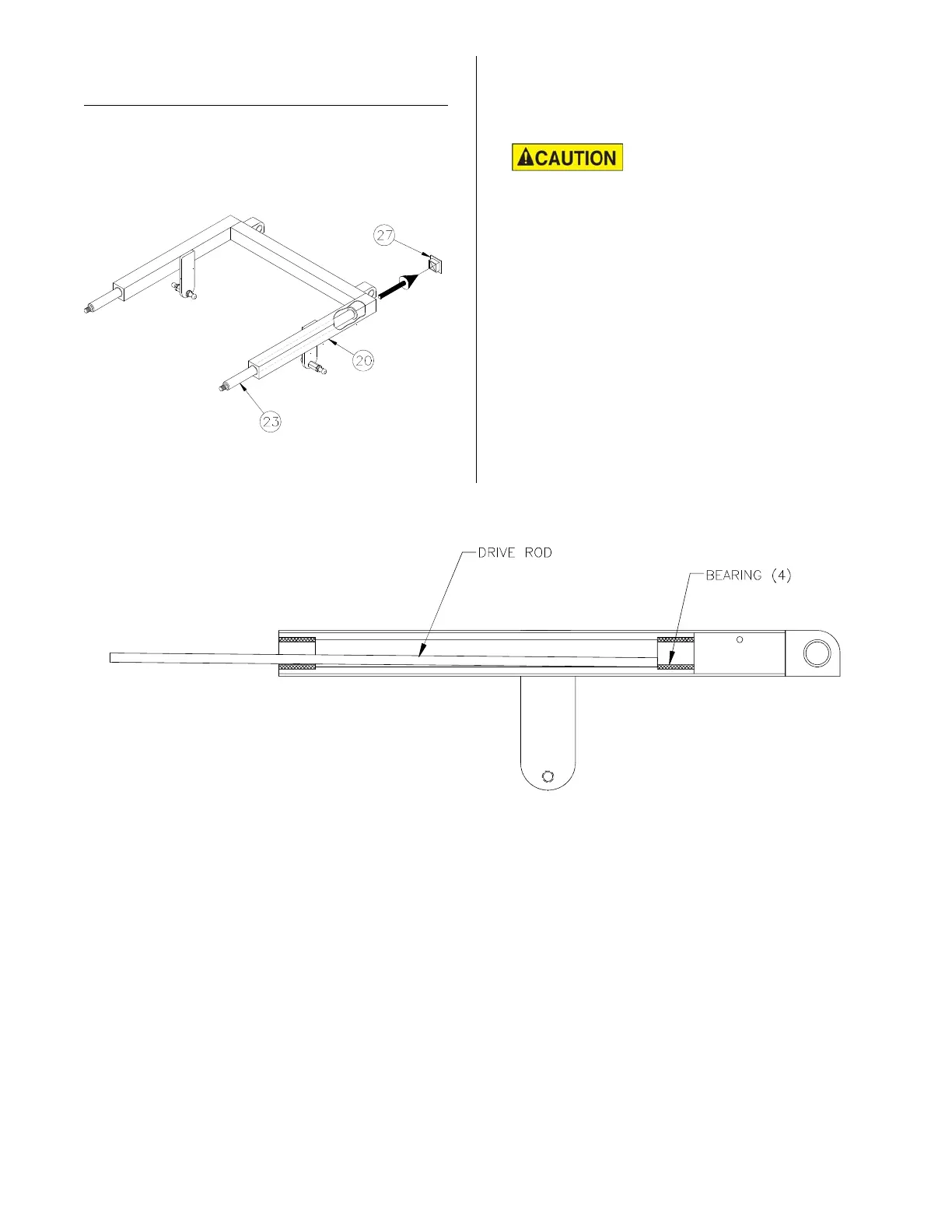

3. Drive out old bearings using a bar
1/4” Dia. x 15” long. (See diagram
below).
4. Install new bearings.
5. Reassemble in reverse order.
