6-3

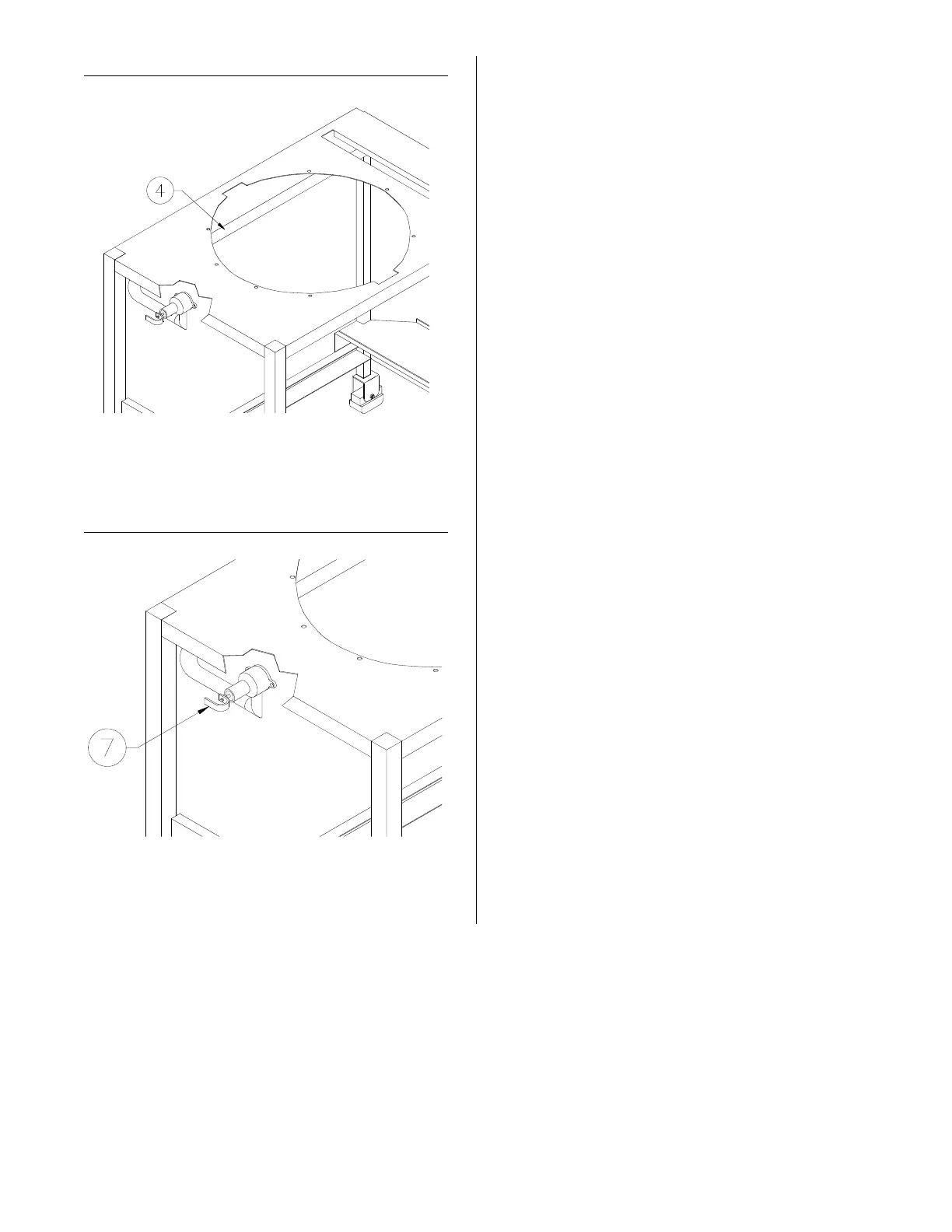

EXHAUST TUBE
Tube (4) directs steam and vapors from
cooking well into the exhaust tank.
PRESSURE REGULATING VALVE
Valve (7) is preset to maintain a maximum
pressure of 12-14 psi during a cooking
cycle. Pressure may build slowly or remain
low when cooking small loads. Add one or
two quartered potatoes with product to
help build and maintain maximum pressure.
Replacement:
1. Disconnect main electric power sup-
ply.
2. Slide right hand squeeze clamp, on
valve outlet, to the left.
3. Pull silicone sleeve and exhaust tube
(4) free of valve outlet.
4. Remove two allen screws mounting
valve to the cooking well and remove
valve.
5. See Repair.
6. Install silicone sleeve and exhaust
tube onto the valve outlet.
7. Slide right hand squeeze clamp onto
the valve outlet.
broaster.com Manual #17280 1/15
