8-5

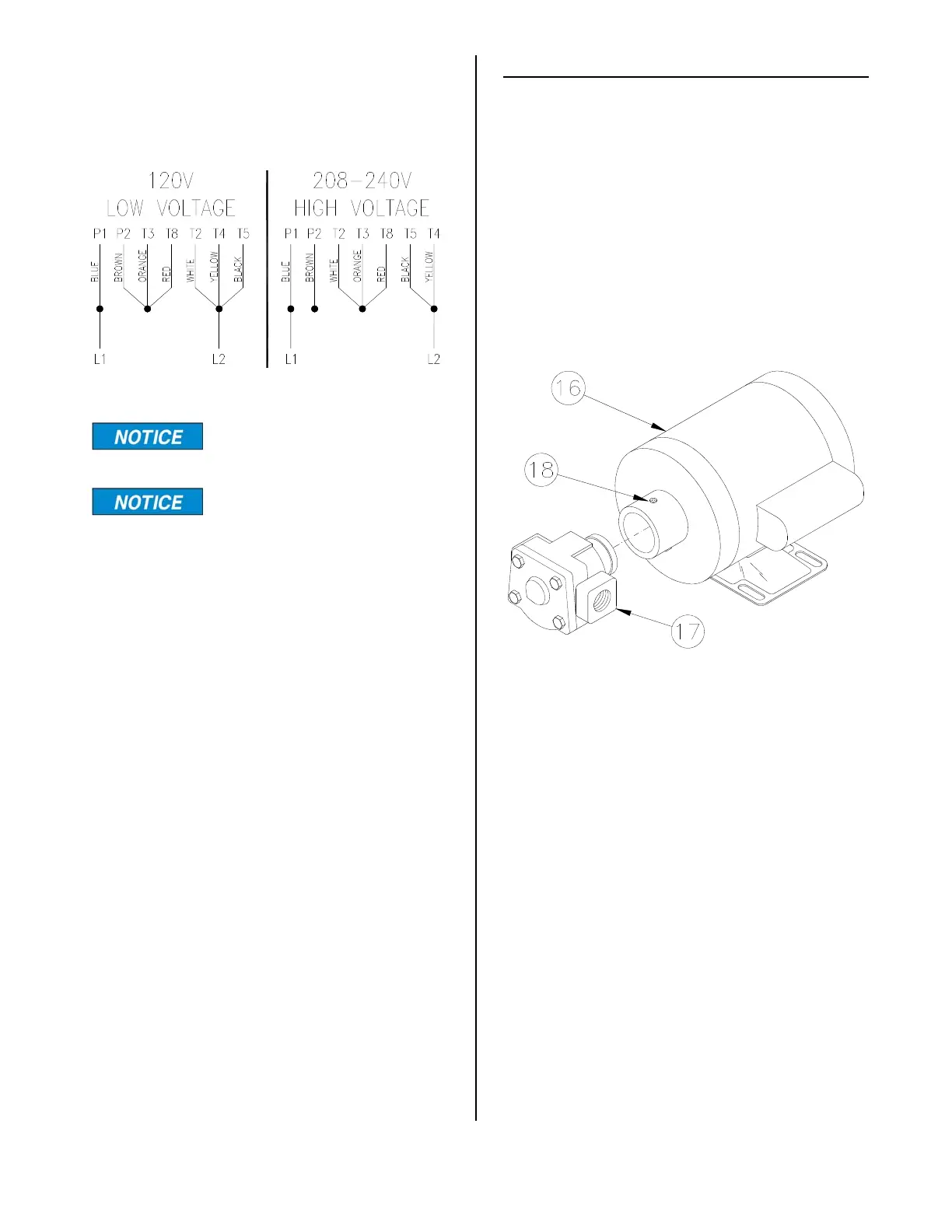

3. Be sure motor is wired for correct volt-
age and direction. Motor wires are
identified to ensure proper connection.
The dots represent wire
nuts.
Wire 2400 pump motor as
shown above.
PUMP
Pumps cooking oil from filter pan to the
cooking well.
Removal:
1. Disconnect main electric power sup-
ply.
2. Drain cooking oil from cooking well
into a container made for handling hot
oil and close drain valve.
3. Remove piping from pump (17).
4. Loosen three set screws (18) in neck of
motor (16) which hold pump in place.
Remove pump.
5. Assemble in reverse order using
#15820 Primer & #15359 Sealant on
pipe threads.
Installation Hints:
1. Loosen motor mounting bolts to help
install piping.
2. See MOTOR Installation Hints.
broaster.com Manual #17280 1/15 Rev 6/15
