7-4
6. Turn cook/filter switch to COOK.
Check manometer read-
ing. If at correct pressure
go to step 8.

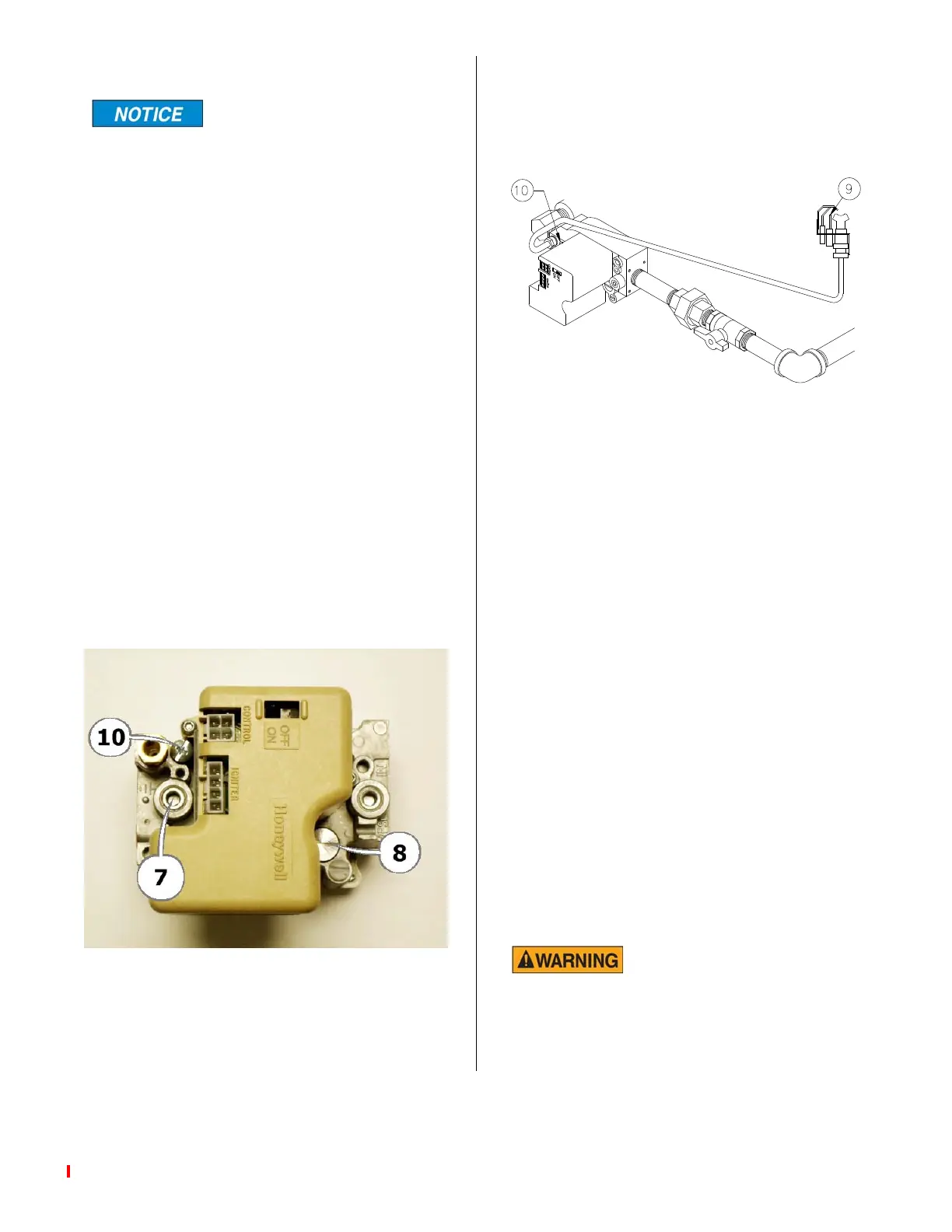

7. Remove regulator adjustment cover
(8). Adjust pressure when main burner
is on.
8. Turn cook/filter switch, manual gas
shut off valve (1) and switch (2) OFF.
9. Remove manometer. Replace pressure
tap plug. Use gas pipe sealer on
threads.
10. Turn manual gas shut off valve (1) ON.
11. Slide gas valve switch (2) ON.
12. Turn cook/filter switch to COOK.
13. Check pressure tap with a soap and
water solution when main burner is on.
Bubbles indicate a gas leak.
Pilot Burner Flame Adjustment:
Pilot burner flame must surround sensor (9).
1. Remove screw (10).
2. Adjust flame and replace screw.
Main Burner Flame:
Flame must be blue and sit on the burner
surface. During normal operation, a slight
“whoosing” sound may be heard when
burner shuts off. If you cannot adjust the
flame correctly check the following:
1. Centered main burner orifice. After
installing a new gas valve or piping,
brackets can shift causing gas not to
travel down center of the venturi. A
bad air/gas mixture is the result.
Adjustment will be necessary if main burner
flame is mostly orange or yellow. If flame is
out of adjustment, check combustion
chamber and flue for soot build-up.
If soot is present, DO NOT
operate unit until all soot
is removed and correction made. Soot is
black and powdery to the touch. See
COMBUSTION CHAMBER.
2. Drafts on floor can affect combustion.
