RTU32M Series User Guide
Brodersen A/S, Islevdalvej 187, DK-2610 Roedovre, Denmark, Tel: +45 45 35 26 27, Fax: +45 45 35 26 29, Email: sales@Brodersen.com
August 2018

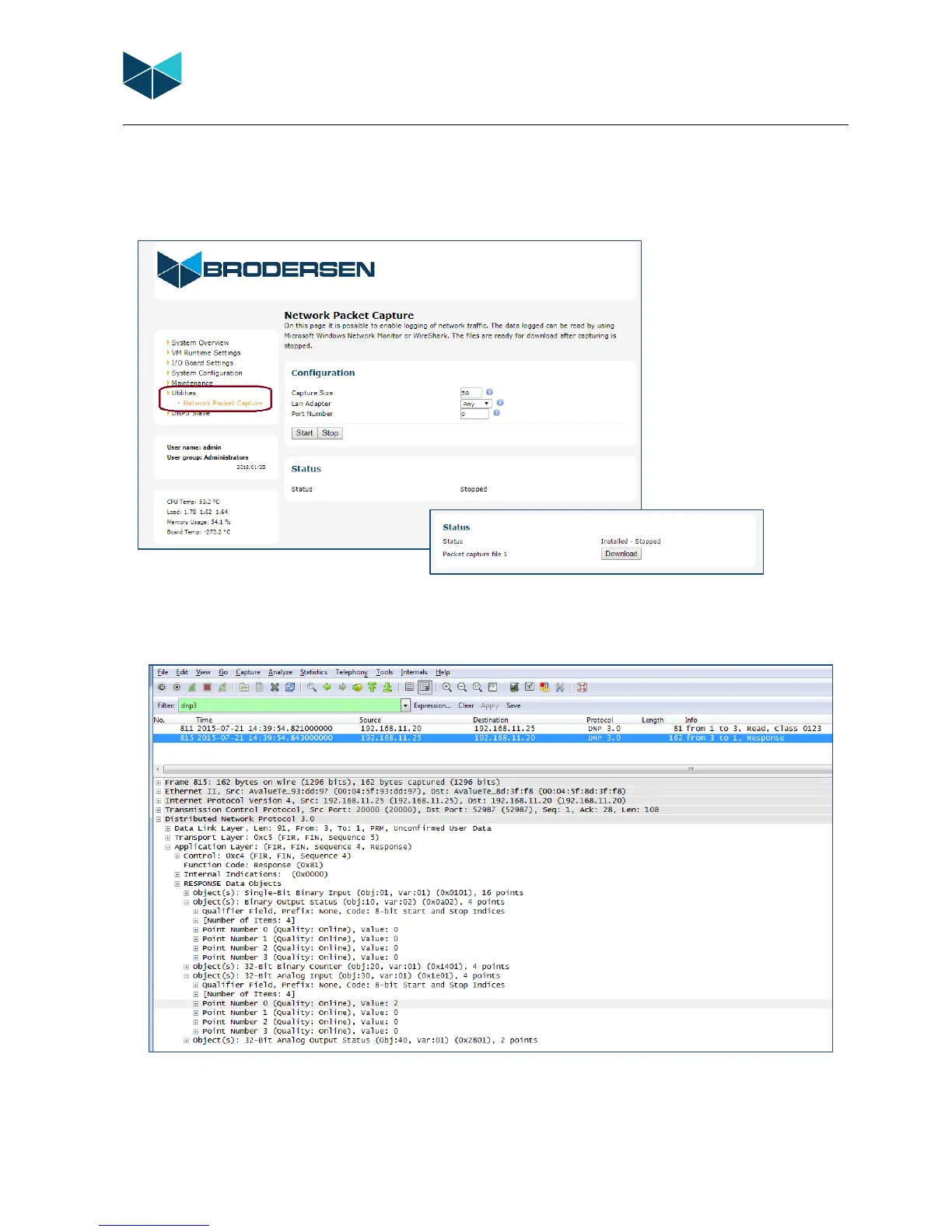

4.27 Utilities - Network Packet Capture
The Network Packet Capture utility allows IP traffic to be monitored and saved to a .pcap file. The file can then be uploaded to a PC
and viewed by applications including WireShark. Capture begins when the start button is pressed and files are then ready for uploading
when the capture is stopped.
Eg. example below shows a captured DNP3 integrity poll and the response from the RTU32M can be viewed in WireShark. A dnp3 filter
has been applied to allow the message to be decoded.
