9 RTU HMI
9.1 Creating and Viewing RTU Graphics
The RTU32 Series support simple HMI functions developed in WorkSuite. You can easily add graphic displays to your application and
monitor data online from your PC using the WorkSuite HMI Viewer, or publish the page as an html document for remote viewing.

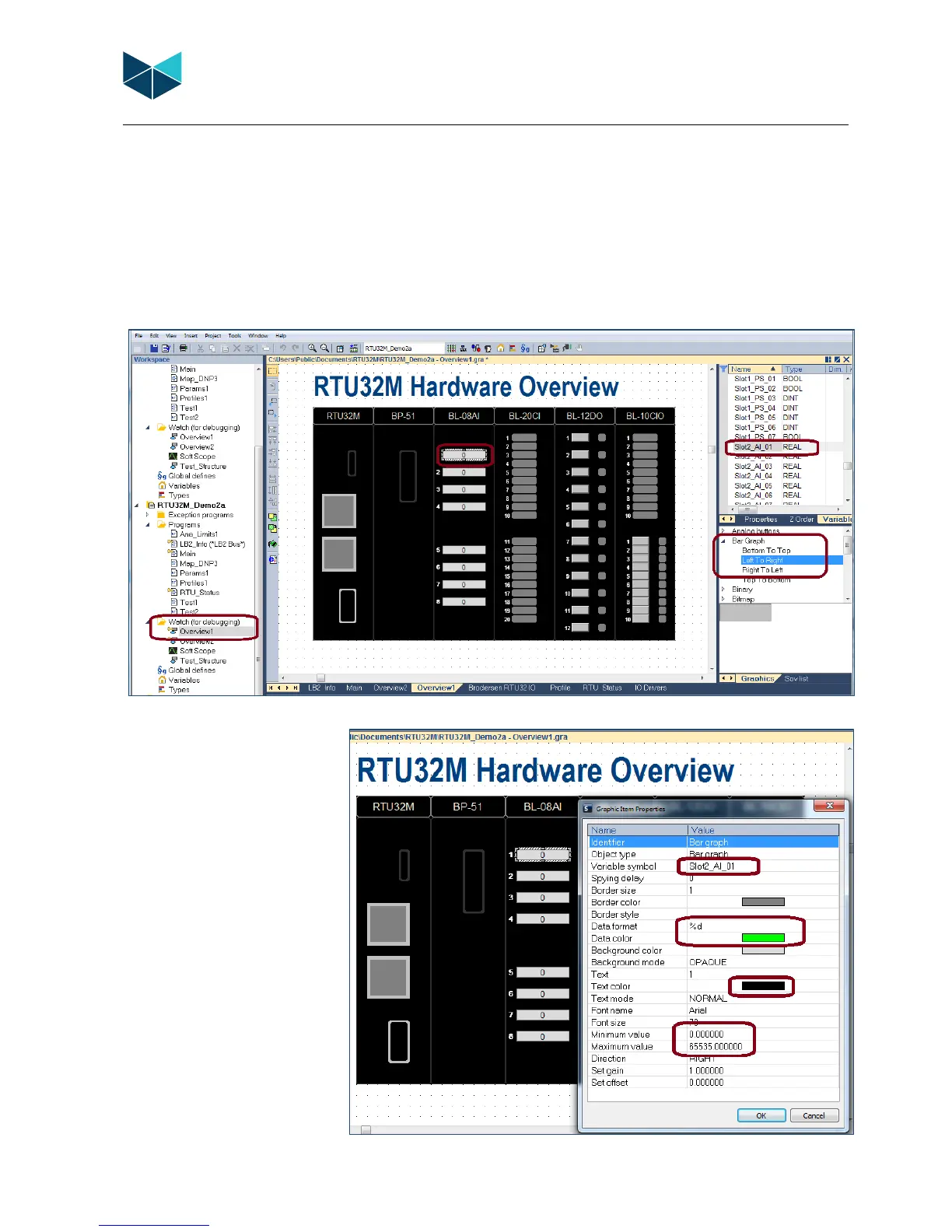

Example – Hardware Overview:
The page below can be built using the standard WorkSuite graphic tools.
The page can include static text,
shapes and a range of items that
provide the animation.
The example here shows the setup
of a horizontal bar graph that moves
from left to right and uses the value
from the variable named
‘Slot2_AI_01’ to show the value as
both a text value and a scaled bar.
