RTU32M Series User Guide
Brodersen A/S, Islevdalvej 187, DK-2610 Roedovre, Denmark, Tel: +45 45 35 26 27, Fax: +45 45 35 26 29, Email: sales@Brodersen.com
August 2018

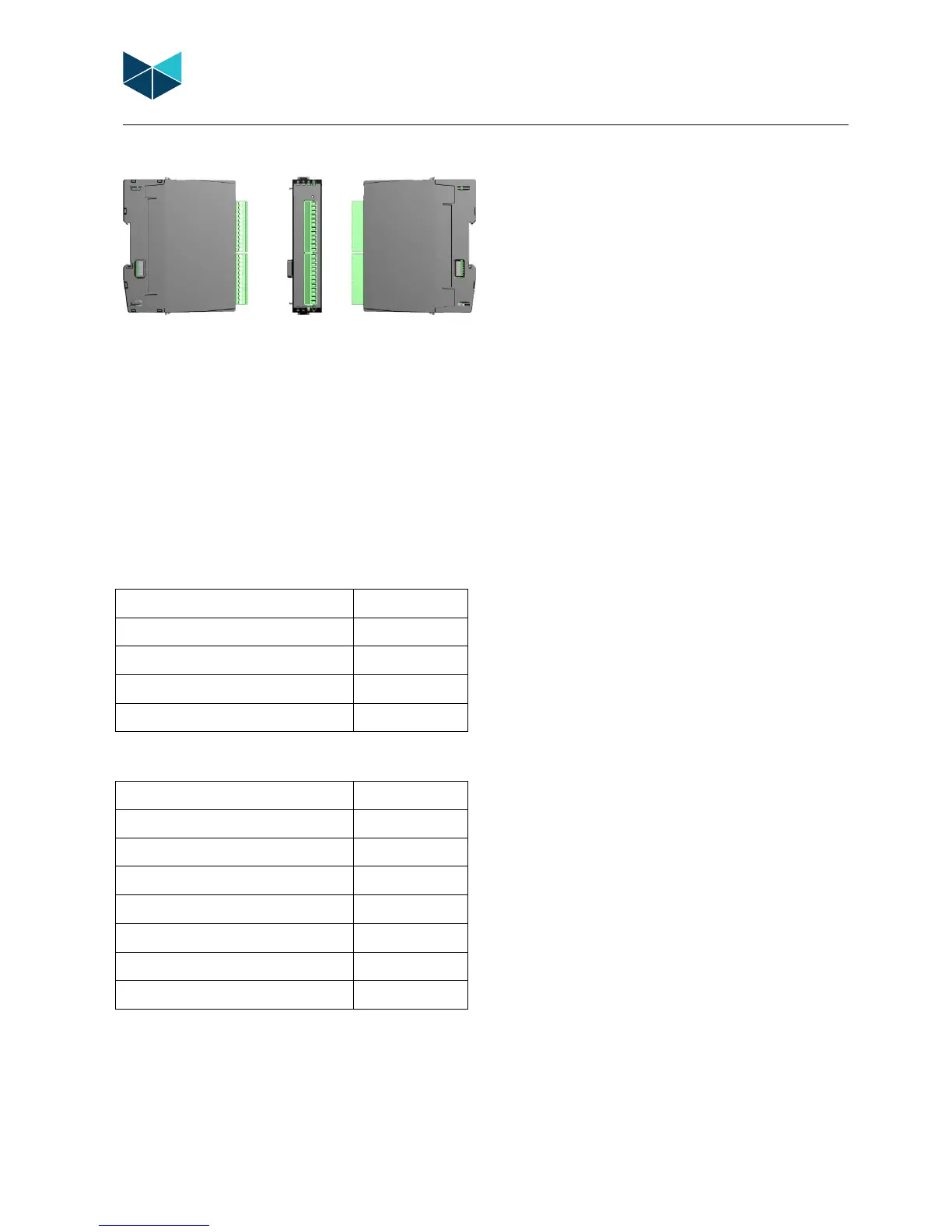

6.3 INTRODUCTION to BL I/O series
The Brodersen BL Series I/O modules can be used with RTU32M & RTU32M Series products. The modules are in two parts - the bottom
part contains the backplane bus and top part contains the I/O board and logic. All LB2 modules can be hot swapped.
Each I/O modules has a 200 MHz CPU to process I/O, perform filtering, SOE, debounce, module clock and general module logic.
Diagnostic variables are available for all modules - see the module datasheets for full info. Firmware updates are handled from
Brodersen Worksuite.
Use only genuine Brodersen bus cables for connection to Brodersen RTUs and for extension of I/O module blocks. The LB2 bus
connection cables are a special build, to handle the power requirements and shielding to run bus communications. The maximum
overall length of a complete system is 5m. Each I/O module & Power supply module is calculated as 2cm. The cables are available in
various lengths from 25cm to 200cm.
Each LB2 Bus supports up to 250 I/O modules.
LB2 Cables
