l1J Thread wiper mechanism

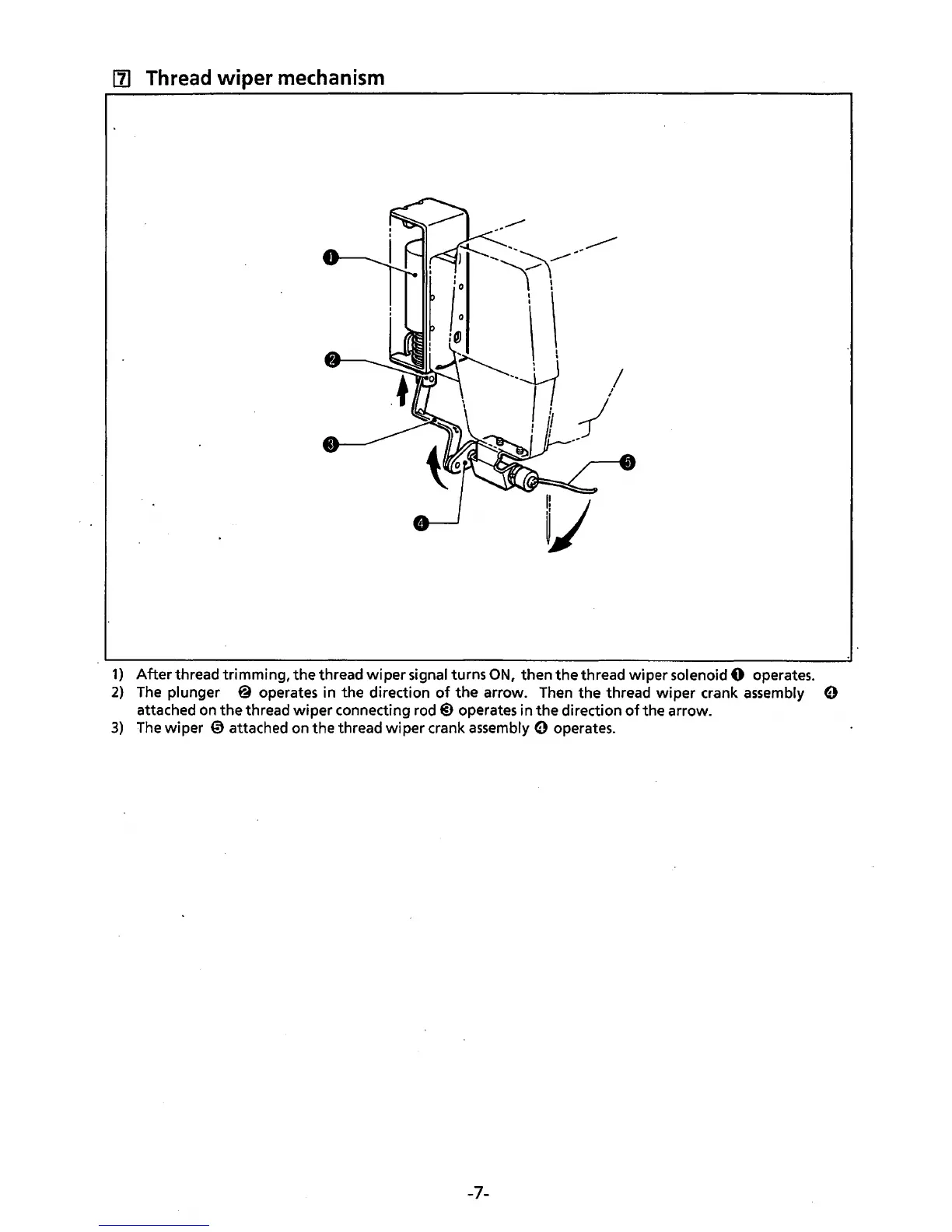

1) After thread trimming, the thread wiper signal turns ON, then the thread wiper solenoid 0 operates.
2) The plunger @ operates in the direction of the arrow. Then the thread wiper crank assembly e
attached on the thread wiper connecting rod@ operates in the direction of the arrow.
3) The wiper 0 attached on the thread wiper crank assembly e operates.
