Brother BAS-340 - Ffij Needle Bar Mechanism

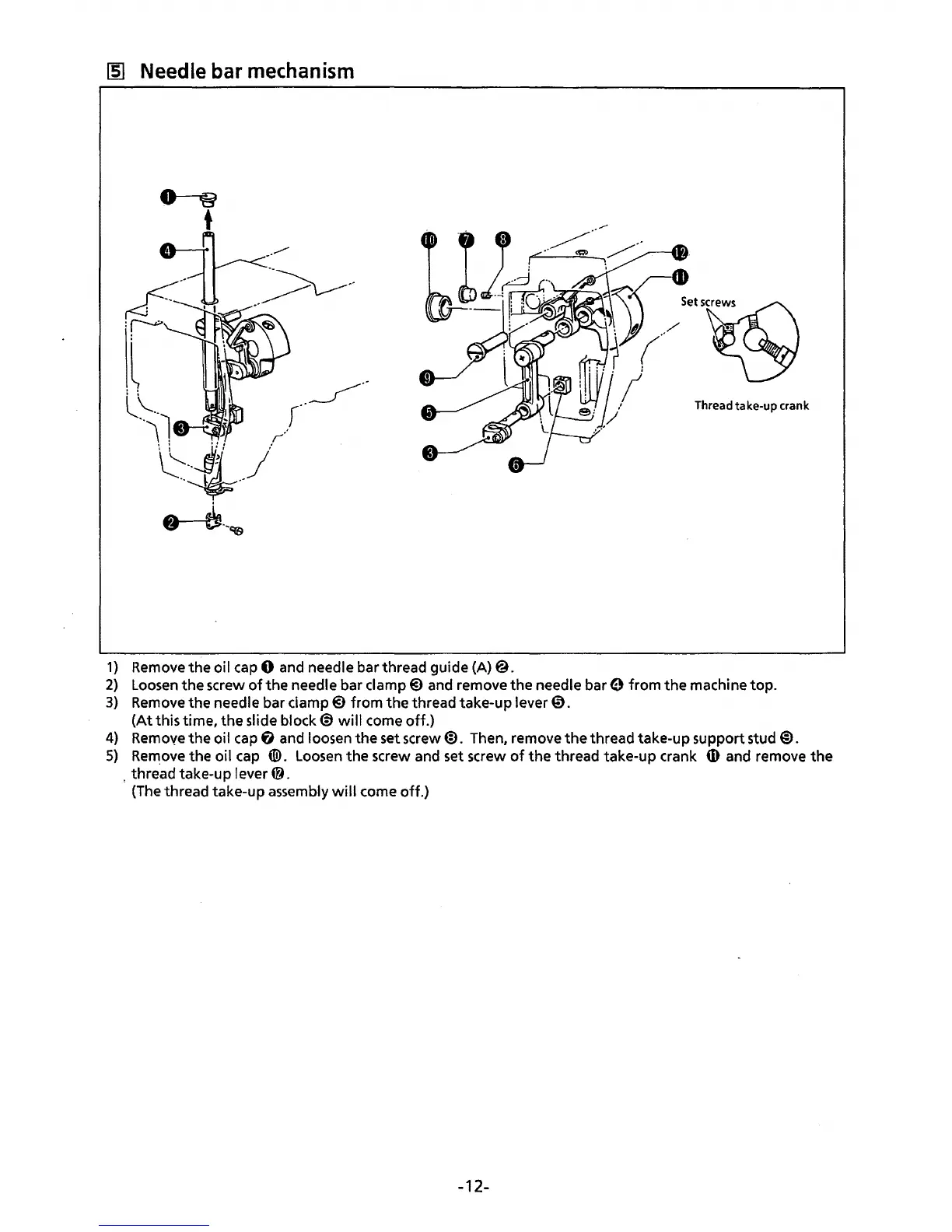

~ Needle bar mechanism
Thread take-up crank
1} Remove the oil cap 0 and needle bar thread guide (A}@.
2} Loosen the screw of the needle bar clamp@ and remove the needle bare from the machine top.
3} Remove the needle bar clamp@ from the thread take-up lever 0.
(At this time, the slide block@) will come off.}
4} Remove the oil cap 6 and loosen the set screw@. Then, remove the thread take-up support stud@).
5} Re~ove the oil cap ([!). Loosen the screw and set screw of the thread take-up crank 6) and remove the
, thread take-up lever 0.
(The thread take-up assembly will come off.}
-12-
